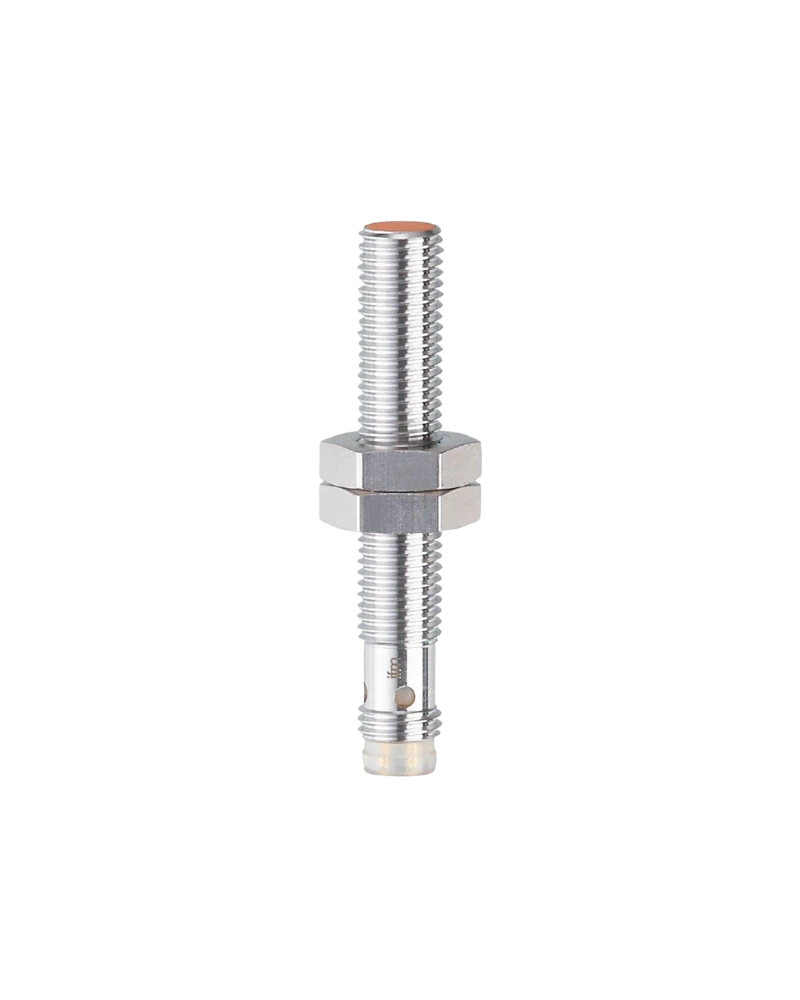

The IE5287 Inductive Sensor provides reliable non-contact metal detection for industrial automation, machine monitoring, and precise position sensing. Its compact M8 design and increased sensing range make it suitable for demanding factory applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5287 Inductive Sensor is designed for accurate metal object detection in Industrial Automation UAE applications. It enables automated machinery to detect metal components without physical contact.
With its compact M8 threaded housing and flush-mountable construction, the sensor is suitable for machinery, conveyors, assembly systems, and Industrial Automation Components UAE.
The sensor provides reliable switching performance and high-speed detection for automated production environments. Its robust construction supports dependable operation in industrial applications.
Reliable non-contact metal detection
2 mm sensing range
Compact M8 design
PNP normally open output
Flush-mountable construction
1300 Hz switching frequency
IP65 / IP67 protection
M8 connector
Reliable position detection
Suitable for factory automation
Factory automation
Conveyor systems
Machine tools
Assembly machinery
Packaging equipment
Position detection
Object presence detection
Material handling systems
Automated production lines
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5287 |
| Part Number | IEB3002BBPKG/AS |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Range | 2 mm |
| Mounting | Flush Mountable |
| Housing | Threaded M8 |
| Dimensions | M8 x 1 / L = 50 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–36 V DC |
| Switching Frequency | 1300 Hz |
| Switching Current | 200 mA |
| Connection | M8 Connector |
| Protection Rating | IP65 / IP67 |
| Housing Material | Brass with special coating |
| Ambient Temperature | -25 to +70 °C |
| Application | Industrial Automation |
