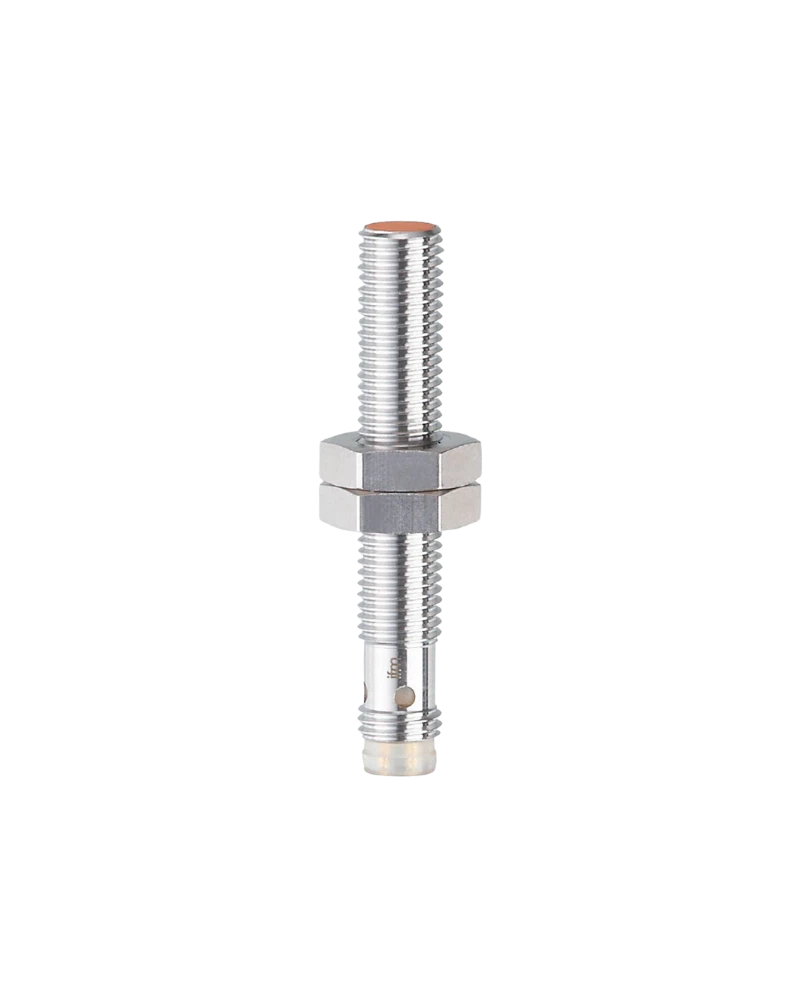

The IE5282 Inductive Sensor provides reliable 2 mm non-contact metal detection for industrial automation and factory equipment. Its stainless-steel housing, compact M8 connector, and robust construction make it suitable for demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5282 is designed for accurate metal detection in Industrial Automation UAE applications. It helps automated machinery identify the presence and position of metal components without physical contact.
The V4A stainless-steel housing provides durability for demanding industrial environments. Its compact M8 design makes it suitable for machinery and installations where space is restricted.
The sensor provides a 1200 Hz switching frequency, PNP normally open output, and IP65/IP67 protection for reliable operation in Industrial Equipment in UAE and factory automation systems.
2 mm sensing range
PNP normally open output
Compact M8 design
Non-flush mounting
V4A stainless-steel housing
High switching frequency
M8 connector
IP65/IP67 protection
Reliable object detection
Suitable for harsh industrial environments
Factory automation
Machine tools
Conveyor systems
Assembly equipment
Packaging machinery
Position detection
Object presence detection
Material handling
Industrial production equipment
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5282 |
| Part Number | IEB3002-BPKG/V4A/AS |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Range | 2 mm |
| Mounting | Non-Flush Mountable |
| Housing | Threaded M8 |
| Dimensions | M8 x 1 / L = 50 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–30 V DC |
| Switching Frequency | 1200 Hz |
| Switching Current | 100 mA |
| Connection | M8 Connector |
| Housing Material | V4A Stainless Steel |
| Protection Rating | IP65 / IP67 |
| Ambient Temperature | 0 to +80 °C |
| Application | Industrial Automation / Factory Automation |
