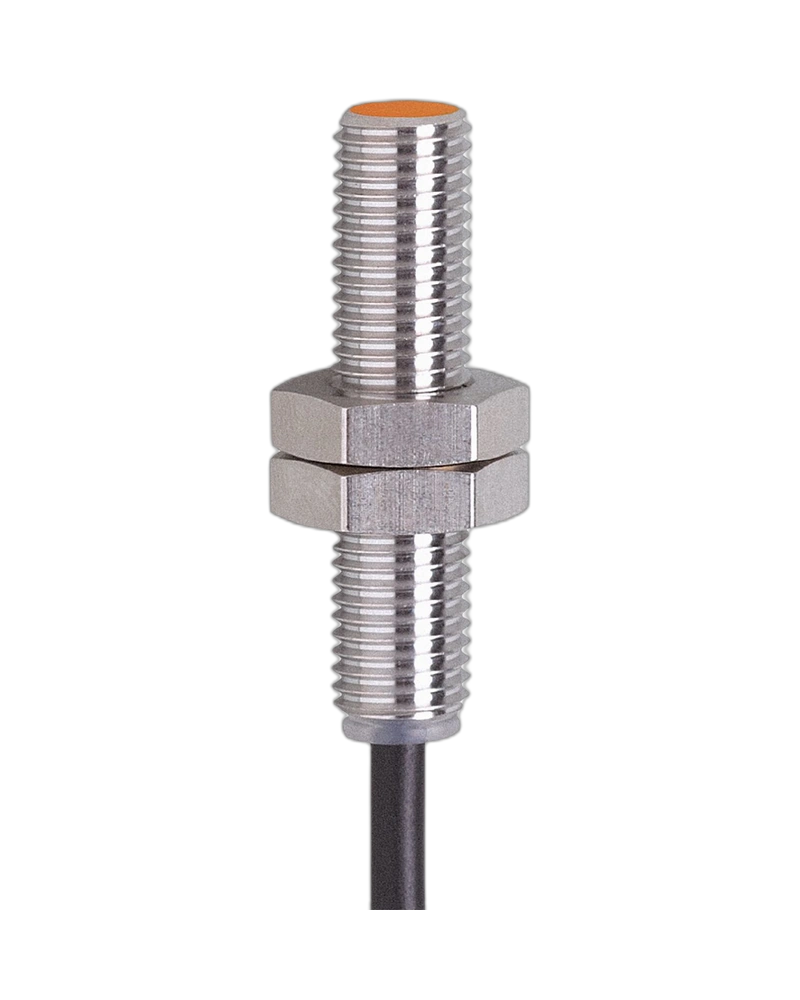

The IE5267 Inductive Sensor provides reliable non-contact metal detection for industrial automation and factory equipment. Its compact M8 design, 1 mm sensing range, and high switching frequency support precise and dependable machine sensing.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5267 is designed for accurate metal object detection in Industrial Automation Solutions in UAE. It supports reliable presence and position detection in automated machines.
The compact M8 threaded housing makes the sensor suitable for limited installation spaces, conveyors, machine tools, assembly systems, and production equipment.
The sensor provides 2000 Hz switching frequency, PNP normally open output, and IP65 protection for dependable operation in factory automation environments.
1 mm sensing range
PNP normally open output
Compact M8 design
Flush-mountable
2000 Hz switching frequency
2-meter PVC cable
IP65 protection
Reliable metal detection
Easy machine integration
Suitable for factory automation
Factory automation
Machine tools
Conveyor systems
Assembly machinery
Packaging equipment
Position detection
Object presence detection
Material handling
Automated production lines
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5267 |
| Part Number | IEB3001-BPKG RT |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Range | 1 mm |
| Mounting | Flush Mountable |
| Housing | Threaded M8 |
| Dimensions | M8 x 1 / L = 35 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–36 V DC |
| Switching Frequency | 2000 Hz |
| Switching Current | 200 mA |
| Cable | 2 m PVC |
| Protection Rating | IP65 |
| Ambient Temperature | -25 to +80 °C |
| Application | Industrial Automation |
