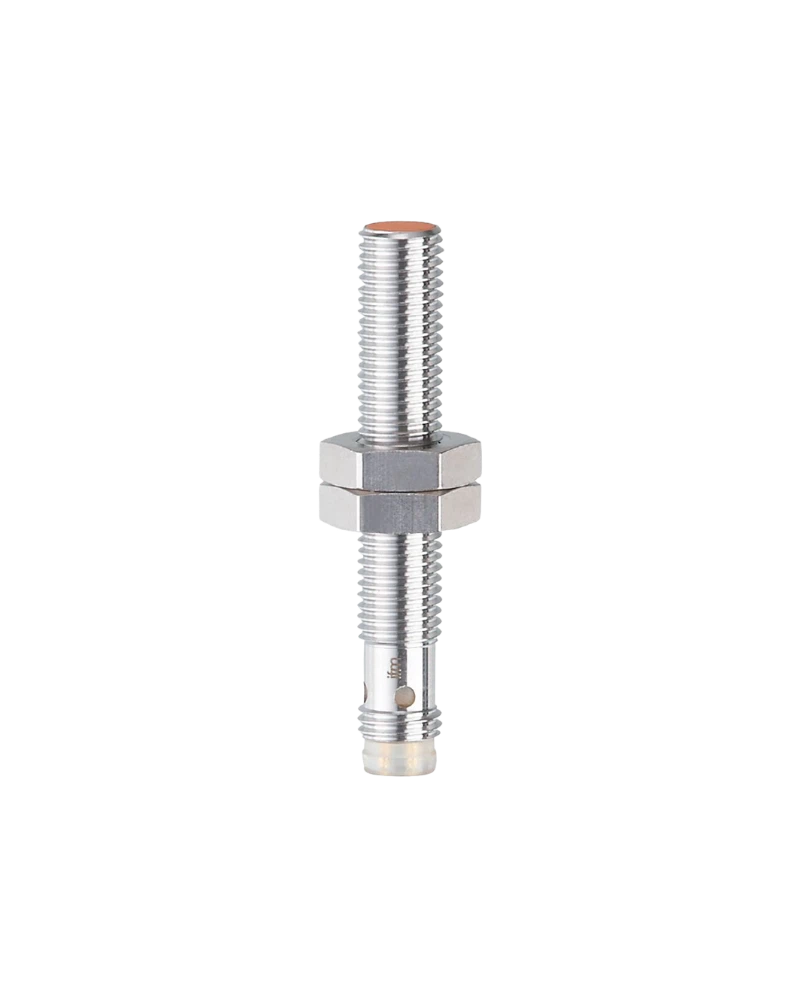

The IE5266 Inductive Sensor is designed for accurate metal detection in compact industrial automation applications. Its 1 mm sensing range, PNP normally open output, and high switching frequency provide reliable performance for automated machinery.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5266 enables reliable non-contact detection of metal objects in Industrial Automation UAE applications. It supports accurate position and presence detection in automated equipment.
Its compact threaded M8 design is suitable for installations where space is limited. The sensor can be integrated into machinery, conveyors, assembly equipment, and factory automation systems.
With a 2000 Hz switching frequency and IP65/IP67 protection, the sensor is suitable for fast industrial processes and Industrial Automation Components UAE.
1 mm sensing range
PNP normally open output
Compact M8 design
Flush-mountable
2000 Hz switching frequency
M8 connector
IP65/IP67 protection
Reliable object detection
Easy machine integration
Suitable for factory automation
Factory automation
Machine tools
Conveyor systems
Assembly machinery
Packaging equipment
Position detection
Object presence detection
Material handling
Automated production equipment
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5266 |
| Part Number | IEB3001-BPKG/AS |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Range | 1 mm |
| Mounting | Flush Mountable |
| Housing | Threaded M8 |
| Dimensions | M8 x 1 / L = 50 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–36 V DC |
| Switching Frequency | 2000 Hz |
| Switching Current | 200 mA |
| Connection | M8 Connector |
| Protection Rating | IP65 / IP67 |
| Ambient Temperature | -25 to +80 °C |
| Application | Industrial Automation |
