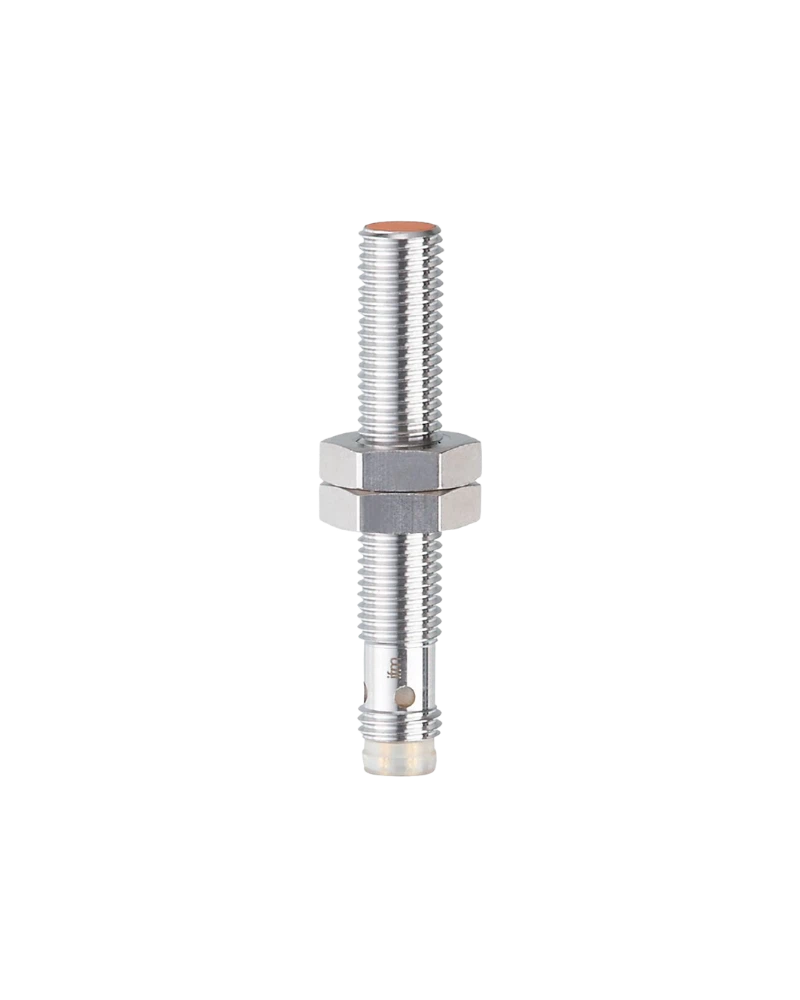

The IE5258 Inductive Sensor provides precise non-contact metal detection for industrial automation and machine monitoring. Its compact M8 design, PNP normally closed output, and high switching frequency make it suitable for demanding factory applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5258 is designed for accurate metal detection in Industrial Automation Systems in UAE. It helps automated machinery detect metal objects without physical contact.
Its M8 threaded construction is suitable for compact machine installations. The sensor provides reliable switching performance for automation equipment and production machinery.
With IP65/IP67 protection and a high switching frequency, the sensor is suitable for Industrial Sensors Supplier UAE applications requiring reliable proximity detection.
1 mm sensing range
PNP normally closed output
Compact M8 design
Flush-mountable
High switching frequency
M8 connector
IP65/IP67 protection
Reliable position detection
Easy machine integration
Suitable for factory automation
Factory automation
Machine tools
Conveyor systems
Assembly machinery
Packaging equipment
Position sensing
Object detection
Industrial machinery
Automated production lines
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5258 |
| Part Number | IEB3001-APKG/AS |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Range | 1 mm |
| Mounting | Flush Mountable |
| Housing | Threaded M8 |
| Dimensions | M8 x 1 / L = 50 mm |
| Electrical Design | PNP |
| Output Function | Normally Closed |
| Operating Voltage | 10–36 V DC |
| Switching Frequency | 2000 Hz |
| Switching Current | 200 mA |
| Connection | M8 Connector |
| Protection Rating | IP65 / IP67 |
| Ambient Temperature | -25 to +80 °C |
| Application | Industrial Automation |
