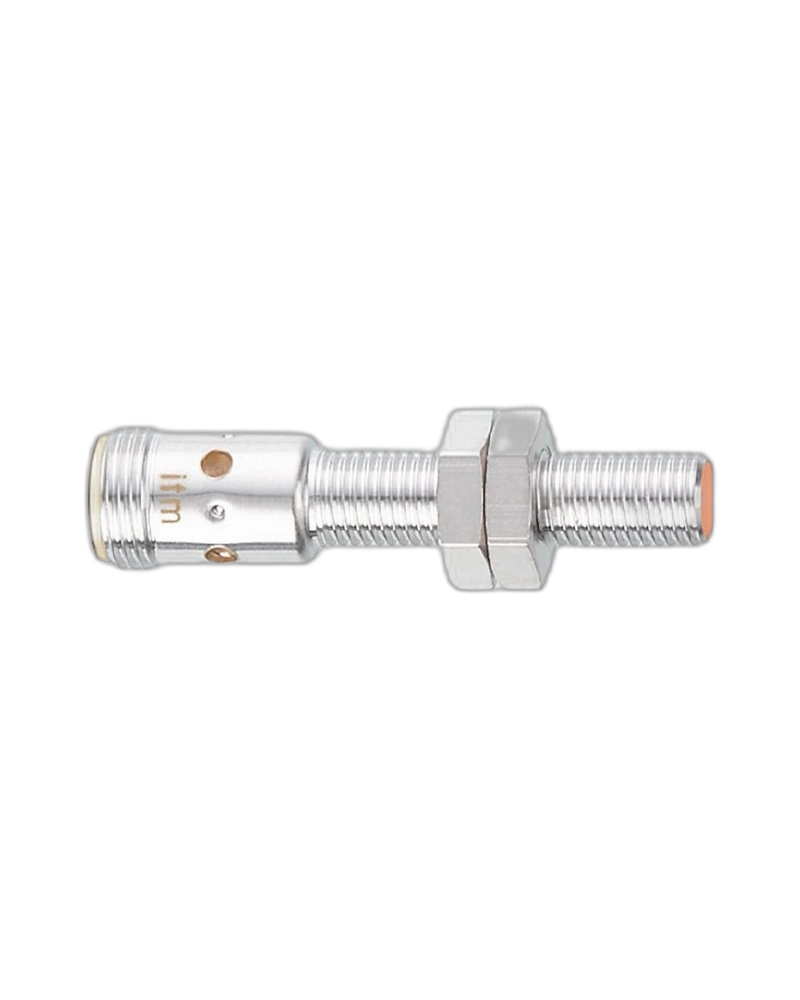

The IE5257 Inductive Sensor provides reliable non-contact metal detection with an extended sensing range for industrial automation applications. Its compact M8 design and high switching frequency make it suitable for fast and precise machine detection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5257 is designed for reliable metal detection in Industrial Automation UAE applications. Its increased sensing range supports dependable detection where consistent machine operation is required.
The M8 threaded housing is suitable for applications with limited installation space. Its PNP normally open output enables easy integration with industrial control systems.
The sensor supports fast switching and reliable object detection for conveyors, assembly machinery, packaging systems, and Factory Automation Components.
2 mm sensing range
Increased sensing range
PNP normally open output
Compact M8 design
High switching frequency
Reliable object detection
Robust metal housing
Easy automation integration
Suitable for limited spaces
Reliable factory performance
Factory automation
Conveyor systems
Machine tools
Assembly machinery
Packaging equipment
Position detection
Object counting
Material handling
Automated production systems
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5257 |
| Part Number | IEK3002BBPKG/US-104 |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Range | 2 mm |
| Mounting | Non-Flush Mountable |
| Housing | Threaded M8 |
| Dimensions | M8 x 1 / L = 60 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–30 V DC |
| Switching Frequency | 1000 Hz |
| Switching Current | 100 mA |
| Connection | M8 Connector |
| Protection | Short-Circuit & Overload Protection |
| Application | Industrial Automation |
