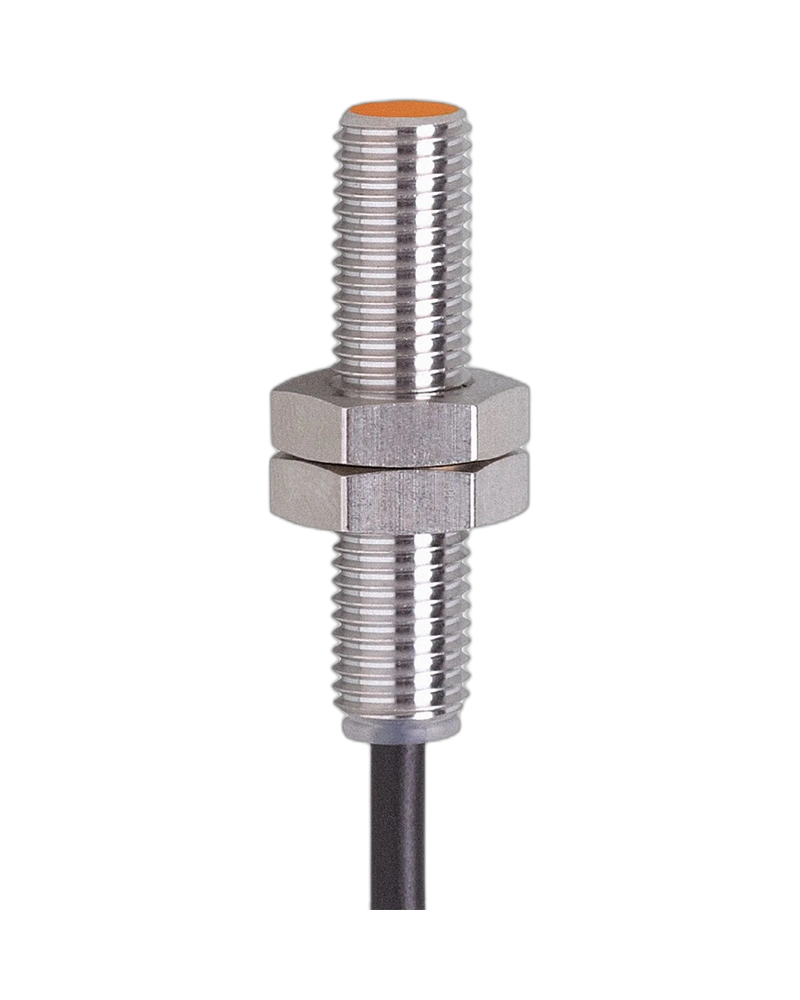

The IE5249 Inductive Sensor provides accurate non-contact metal detection for factory automation, machine tools, and industrial equipment. Its 2 mm sensing range, compact M8 housing, and 3-meter cable support reliable operation in demanding applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5249 is designed for reliable metal object detection in Industrial Automation UAE applications. It supports accurate position sensing and object detection in automated machinery.
Its short M8 housing allows convenient installation where space is restricted. The 3-meter PUR cable provides flexibility for machine and equipment installation.
With PNP normally open output, IP67 protection, and high switching frequency, the sensor supports reliable operation across Industrial Equipment & Supplies in UAE and factory automation applications.
2 mm sensing range
PNP normally open output
Compact M8 design
Flush-mountable construction
3-meter PUR cable
High switching frequency
IP67 protection
Reliable metal detection
Short housing design
Suitable for factory automation
Machine tools
Factory automation
Conveyor systems
Assembly equipment
Packaging machinery
Position sensing
Object detection
Material handling
Industrial production lines
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5249 |
| Part Number | IEB3002BBPKG/3M/FH RT |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Range | 2 mm |
| Mounting | Flush Mountable |
| Housing | Threaded M8 |
| Dimensions | M8 x 1 / L = 38 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–36 V DC |
| Switching Frequency | 1000 Hz |
| Switching Current | 200 mA |
| Cable Length | 3 m PUR Cable |
| Protection Rating | IP67 |
| Ambient Temperature | -25 to +70 °C |
| Application | Factory Automation |
