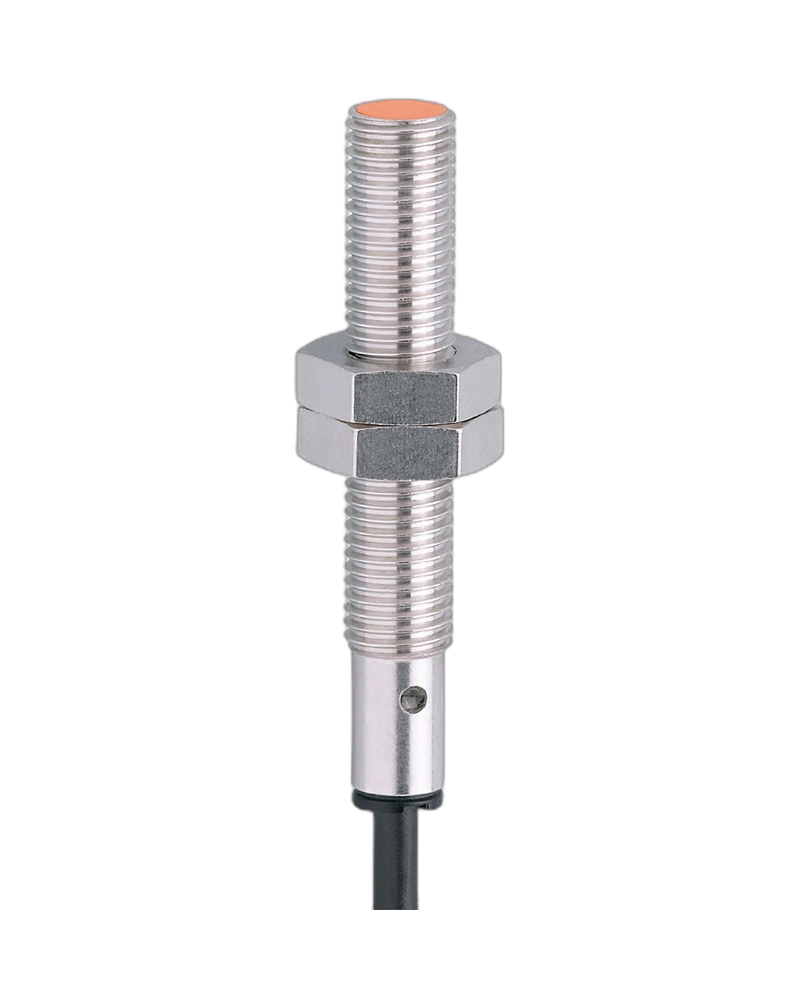

The IE5238 Inductive Sensor provides reliable 2 mm metal detection for industrial automation, machine tools, and factory equipment. Its selectable PNP/NPN output and compact M8 construction support flexible integration into automated systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5238 is designed for dependable non-contact metal detection in Industrial Automation Solutions in UAE. It helps machines identify the presence and position of metal components during automated processes.
The sensor supports selectable PNP/NPN and normally open/normally closed output functions, making it suitable for different control-system requirements.
Its robust metal housing and IP67 protection make the sensor suitable for Industrial Automation Equipment UAE, conveyors, machine tools, assembly systems, and production equipment.
2 mm sensing range
Selectable PNP/NPN output
Selectable NO/NC output
Compact M8 design
High switching frequency
Robust metal housing
IP67 protection
Reliable machine detection
Easy control-system integration
Suitable for factory automation
Factory automation
Machine tools
Conveyor systems
Assembly machinery
Packaging equipment
Position detection
Object presence detection
Material handling systems
Automated production lines
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5238 |
| Part Number | IEA2002-FRKG/PH |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Range | 2 mm |
| Mounting | Non-Flush Mountable |
| Housing | Threaded M8 |
| Dimensions | M8 x 1 / L = 50 mm |
| Electrical Design | PNP/NPN |
| Output Function | NO/NC Selectable |
| Operating Voltage | 5–36 V DC |
| Switching Frequency | 2000 Hz |
| Switching Current | 200 mA |
| Connection | 2 m Cable |
| Protection Rating | IP67 |
| Ambient Temperature | -25 to +80 °C |
| Application | Industrial Automation |
