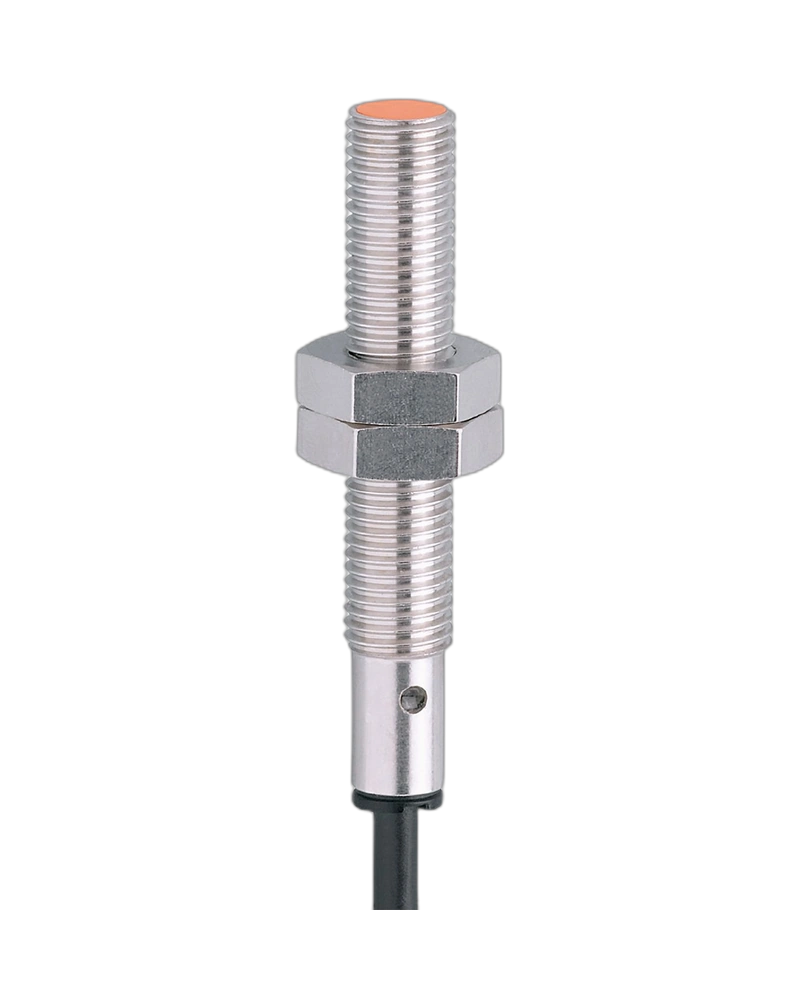

The IE5229 Inductive Sensor provides dependable non-contact metal detection for industrial automation and machine monitoring. Its 6-meter cable, compact M8 housing, and selectable output configuration make it suitable for flexible industrial installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5229 is designed to detect metal objects accurately in Industrial Automation Systems in UAE. It supports reliable presence detection and machine positioning without physical contact.
With selectable PNP/NPN and NO/NC output functions, the sensor can be integrated into different automation control systems. The 6-meter cable provides additional installation flexibility.
The robust metal housing and high switching frequency make the sensor suitable for Industrial Equipment in UAE, machinery, conveyors, and automated production systems.
Reliable non-contact metal detection
1 mm sensing range
Selectable PNP/NPN output
Selectable NO/NC output
Compact M8 design
6-meter cable
High switching frequency
IP67 protection
Easy machine integration
Reliable industrial performance
Factory automation
Machine tools
Conveyor systems
Assembly machinery
Packaging equipment
Position detection
Object presence detection
Industrial machinery
Automated production lines
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5229 |
| Part Number | IEA2001-FRKG/6M/PH |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Range | 1 mm |
| Mounting | Flush Mountable |
| Housing | Threaded M8 |
| Dimensions | M8 x 1 / L = 50 mm |
| Electrical Design | PNP/NPN |
| Output Function | NO/NC Selectable |
| Operating Voltage | 5–36 V DC |
| Switching Frequency | 2000 Hz |
| Switching Current | 200 mA |
| Cable Length | 6 m |
| Protection Rating | IP67 |
| Ambient Temperature | -25 to +80 °C |
| Application | Industrial Automation |
