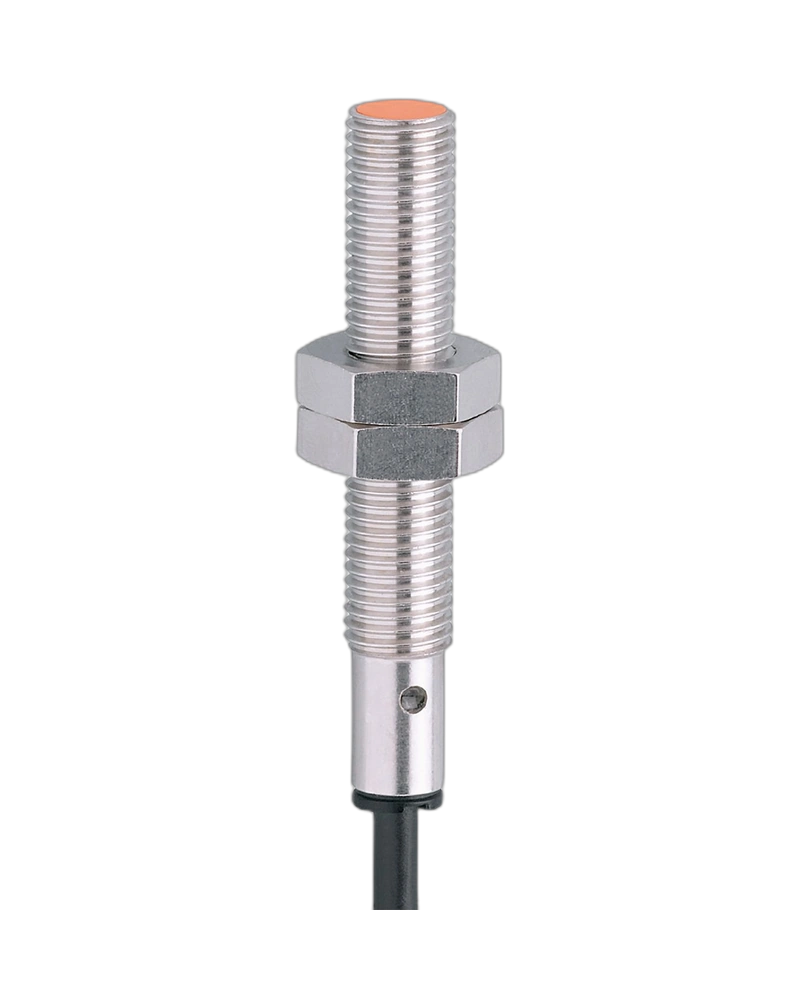

The IE5222 Inductive Sensor is designed for reliable metal detection in compact industrial installations. Its selectable PNP/NPN output, M8 threaded design, and high switching frequency make it suitable for industrial automation and machine sensing applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5222 provides accurate non-contact detection of metal objects for Industrial Automation UAE applications. It supports reliable machine positioning, object detection, and automated production processes.
The sensor supports selectable PNP/NPN and normally open/normally closed output functions, allowing flexible integration with different industrial control systems.
Its M8 threaded housing makes the sensor suitable for limited installation spaces, machinery, conveyors, assembly equipment, and Industrial Automation Components UAE.
Reliable metal detection
1 mm sensing range
Selectable PNP/NPN output
Selectable NO/NC output
Compact M8 design
High switching frequency
Robust metal housing
IP67 protection
Easy control-system integration
Suitable for factory automation
Factory automation
Machine tools
Conveyor systems
Assembly machinery
Packaging equipment
Position sensing
Object detection
Material handling
Automated production equipment
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5222 |
| Part Number | IEA2001-FRKG/PH |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Range | 1 mm |
| Mounting | Flush Mountable |
| Housing | Threaded M8 |
| Dimensions | M8 x 1 / L = 50 mm |
| Electrical Design | PNP/NPN |
| Output Function | NO/NC Selectable |
| Operating Voltage | 5–36 V DC |
| Switching Frequency | 2000 Hz |
| Switching Current | 200 mA |
| Connection | Cable |
| Protection Rating | IP67 |
| Ambient Temperature | -25 to +80 °C |
| Application | Industrial Automation |
