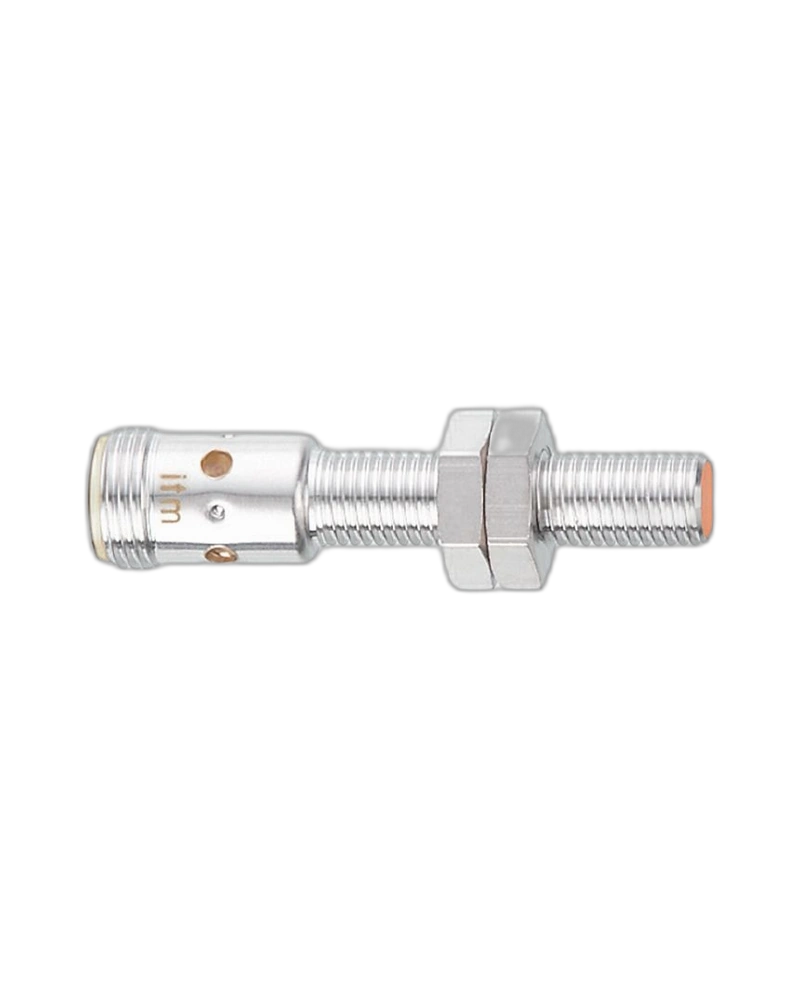

The IE5219 Inductive Sensor provides reliable non-contact metal detection for industrial automation, machine monitoring, and precise position sensing. Its compact M8 design, stainless-steel housing, and high switching frequency make it suitable for demanding industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5219 Inductive Sensor is designed for accurate metal object detection in Industrial Automation UAE applications. It enables automated equipment to detect the presence and position of metal components without physical contact.
With its compact M8 threaded construction and robust stainless-steel housing, the sensor is suitable for Industrial Automation Systems in UAE, conveyors, machine tools, assembly equipment, and production machinery.
The sensor provides reliable switching performance, high-speed detection, and easy integration with industrial control systems. Its IP67 protection supports dependable operation in demanding environments.
Reliable non-contact metal detection
1 mm sensing range
Compact M8 design
PNP normally open output
High switching frequency
Stainless-steel housing
IP67 protection
M12 connector
Reliable position detection
Suitable for factory automation
Factory automation
Conveyor systems
Machine tools
Assembly machinery
Packaging equipment
Position detection
Object presence detection
Material handling systems
Automated production lines
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5219 |
| Part Number | IEA3001-BPKG/V2A/US-104-DPS |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Range | 1 mm |
| Mounting | Flush Mountable |
| Housing | Threaded M8 |
| Dimensions | M8 x 1 / L = 60 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–30 V DC |
| Switching Frequency | 2000 Hz |
| Switching Current | 100 mA |
| Connection | M12 Connector |
| Protection Rating | IP67 |
| Housing Material | Stainless Steel |
| Ambient Temperature | -25 to +80 °C |
| Application | Industrial Automation / Factory Automation |
