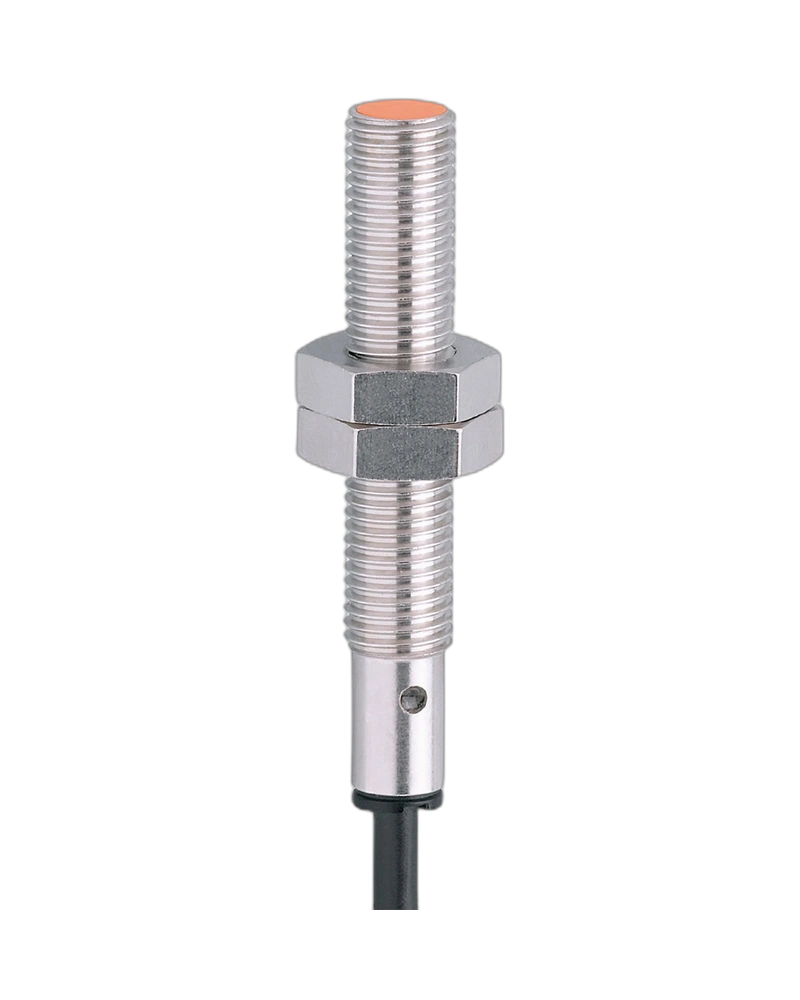

The IE5136 is an inductive proximity sensor designed for reliable non-contact metal detection.
It provides a 1 mm sensing range with PNP normally closed output.
Its compact M8 threaded housing supports installation in limited spaces.
The 6 m cable makes it suitable for flexible industrial automation installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5136 inductive sensor provides dependable detection of metallic objects in industrial automation systems. Its compact M8 threaded construction allows easy integration into machinery and production equipment.
With PNP normally closed output, flush mounting and IP67 protection, the sensor supports reliable operation in automated machinery. The 6 m cable provides additional flexibility for machine wiring and installation.
• Compact M8 threaded design
• 1 mm sensing range
• PNP normally closed output
• 6 m cable connection
• Flush mounting
• IP67 protection
• Reliable non-contact metal detection
• Suitable for industrial automation
Industrial automation, machine tools, conveyor systems, assembly machines, position monitoring, material handling, and automated production lines.
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5136 |
| Sensing Range | 1 mm |
| Electrical Design | PNP |
| Output Function | Normally Closed |
| Operating Voltage | 10–36 V DC |
| Housing | M8 x 1 |
| Length | 50 mm |
| Connection | 6 m Cable |
| Switching Frequency | 1000 Hz |
| Mounting | Flush |
| Protection | IP67 |
| Ambient Temperature | -25 to 80 °C |
