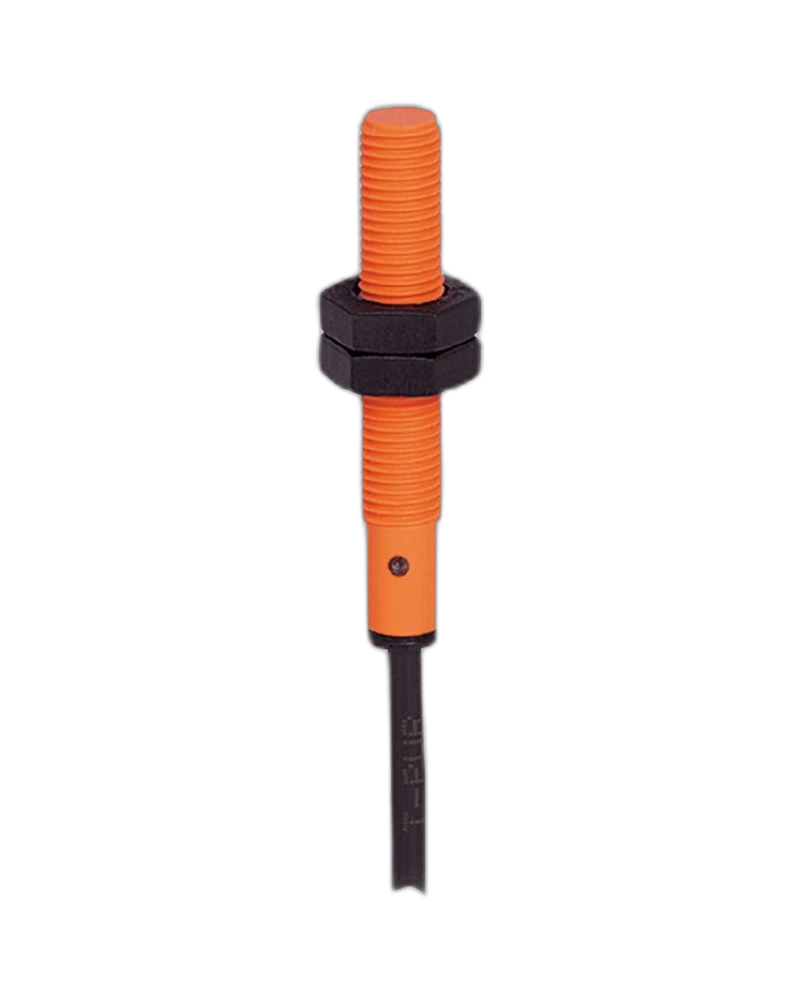

The IFM IE5130 IE-3001-APKG is a compact inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial automation and machine-control applications. It features a 1 mm sensing range, PNP normally-closed output, 10–36 V DC operation, 1000 Hz switching frequency, M8 × 1 threaded PBT housing, flush mounting and 2 m PVC cable, with IP67 protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IE5130 IE-3001-APKG is a compact inductive sensor designed for reliable and repeatable non-contact detection of metallic objects in industrial machinery, factory automation and machine-control applications. Its particularly space-saving construction makes it suitable for installations where available space is restricted.
The sensor provides a 1 mm sensing range, with a real sensing range of 1 ± 10% mm and an operating distance of 0–0.8 mm. Its flush-mounting configuration allows it to be installed neatly into suitable machine structures and fixtures.
The IE5130 uses a PNP normally-closed output and operates from a 10–36 V DC supply. Its 1000 Hz switching frequency provides fast and repetitive detection for automated machinery, production equipment and machine-control applications.
1 mm sensing range
Real sensing range: 1 ± 10% mm
Operating distance: 0–0.8 mm
PNP electrical design
Normally-closed output
10–36 V DC operating voltage
1000 Hz switching frequency
200 mA permanent switching current
2.5 V maximum voltage drop
M8 × 1 threaded housing
50 mm overall length
Flush mounting
PBT housing material
2 m PVC cable
3 × 0.14 mm² cable construction
Yellow switching-status LED
IP67 protection rating
-25 °C to +80 °C ambient temperature
Reverse-polarity protection
Short-circuit protection
Overload protection
Particularly space-saving design
Suitable for restricted installation spaces
Suitable for metallic object detection
Suitable for machine position detection
Suitable for factory automation
The IE5130 provides dependable non-contact metal detection for industrial machinery, automated production equipment and factory automation systems. Its 1 mm sensing range is suitable for detecting metallic components, machine parts and workpieces without mechanical contact.
The 1000 Hz switching frequency supports fast repetitive detection operations in machinery, conveyors, assembly equipment, production lines and automated counting systems. The PNP normally-closed output can provide a switching signal to compatible PLCs, industrial controllers and automation systems.
The sensor uses an M8 × 1 threaded housing with an overall length of 50 mm. Its flush-mounting design allows the sensor to be integrated neatly into suitable machine structures while maintaining its specified sensing performance.
The IE5130 is supplied with a 2 m PVC cable containing 3 × 0.14 mm² conductors, providing a practical pre-wired connection for industrial machinery and automation equipment.
A yellow LED provides switching-status indication, helping technicians identify the sensor's operating state during installation, commissioning and maintenance.
The sensor provides IP67 protection and operates over an ambient temperature range of -25 °C to +80 °C, making it suitable for a broad range of industrial environments.
The IE5130 is suitable for Industrial Automation UAE applications requiring fast and reliable detection of metallic objects.
Typical applications include:
Machine position detection
Metal component presence detection
Conveyor monitoring
Automated counting
Assembly machinery
Packaging equipment
Production-line monitoring
Material-handling equipment
Machine status feedback
Factory automation
For Industrial automation companies in UAE, Industrial automation companies UAE and businesses developing Industrial automation systems in UAE, the IE5130 provides a compact sensing solution for machine monitoring and automated process control.
The IE5130 is an Industrial Sensor designed for non-contact detection of metallic targets. It can form part of an Industrial Sensors Supplier UAE product range alongside Proximity Sensors, Photoelectric Sensors and other industrial sensing products.
For a Proximity Sensors Supplier UAE or Sensor Supplier UAE, the IE5130 provides an M8 inductive sensor with PNP normally-closed switching, 1 mm sensing capability, 1000 Hz switching frequency, flush mounting and a 2 m cable.
The IE5130 can be integrated with compatible PLCs, industrial controllers, control panels and other Industrial Automation Components UAE.
For an Industrial Automation Supplier in UAE, Industrial Automation Suppliers UAE, Automation Products Supplier UAE or Industrial Automation Equipment UAE, it provides a practical sensing component for machine builders, manufacturers and automation integrators.
The sensor can also be incorporated with Factory Automation Components used in manufacturing, assembly, material handling and automated production systems.
The IE5130 can form part of Industrial Equipment & Supplies, Industrial Equipment & Supplies in UAE, Industrial Equipment & Supplies suppliers, Industrial Equipment in UAE and Industrial Electrical Equipment portfolios.
It can be installed alongside PLCs, control equipment, drives, actuators and other automation components where reliable metallic target detection is required.
For companies providing Industrial automation solutions in UAE, the IE5130 offers a practical solution for fast close-range metallic object detection in compact machinery and automated equipment.
Its 1 mm sensing range, PNP normally-closed output, 1000 Hz switching frequency, M8 × 1 housing, flush mounting, 2 m PVC cable and IP67 protection make it suitable for a variety of industrial proximity-sensing and machine-control applications.
| Specification | Details |
|---|---|
| Product Code | IE5130 |
| Manufacturer | IFM electronic |
| Model / Part Number | IE-3001-APKG |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive Proximity Sensor |
| Electrical Design | PNP |
| Output Function | Normally Closed (NC) |
| Operating Voltage | 10–36 V DC |
| Current Consumption | 15 mA at 24 V |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Maximum Voltage Drop | 2.5 V |
| Permanent Switching Current | 200 mA |
| Switching Frequency | 1000 Hz |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Sensing Range | 1 mm |
| Real Sensing Range (Sr) | 1 ± 10% mm |
| Operating Distance | 0–0.8 mm |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.4 |
| Correction Factor – Aluminium | 0.3 |
| Correction Factor – Copper | 0.2 |
| Hysteresis | 1–15% of Sr |
| Switch-Point Drift | -10 to +10% of Sr |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 50 mm |
| Mounting | Flush mountable |
| Housing Material | PBT |
| Connection | 2 m PVC cable |
| Cable Construction | 3 × 0.14 mm² |
| Switching Status Indication | 1 × yellow LED |
| Protection Rating | IP67 |
| Ambient Temperature | -25 °C to +80 °C |
| EMC Standard | EN 60947-5-2 |
| EMC ESD | 4 kV CD / 8 kV AD |
| EMC Radiated RF | 3 V/m |
| EMC Burst | 2 kV |
| EMC Conducted RF | 3 V |
| EMC Emission | EN 55011 Class B |
| MTTF | Approx. 2737 years |
| Weight | Approx. 42.5 g |
| Tightening Torque | 0.25 Nm |
| Accessories Included | 2 × lock nuts |
| Pack Quantity | 1 piece |
| Typical Applications | Industrial automation, factory automation, machine control, metal detection, position sensing, conveyor monitoring and proximity detection |
| Product Status | Phase-out article |
| Discontinuation Date | 31 March 2026 |
| Alternative Article | IE5136 |
