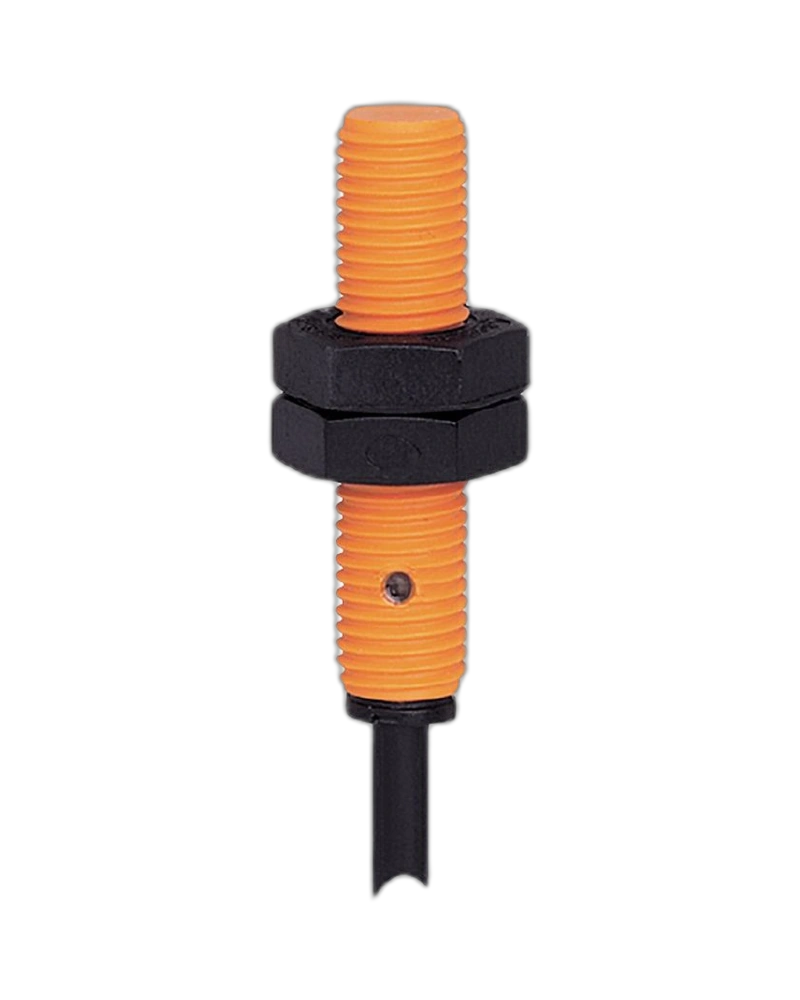

The IFM IE5111 IEC3002-BNKG is a compact inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial automation and machine-control applications. It features a 2 mm sensing range, NPN normally-closed output, 10–36 V DC operation, 800 Hz switching frequency, M8 × 1 threaded PBT housing, non-flush mounting and 2 m PVC cable, with IP67 protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IE5111 IEC3002-BNKG is a compact inductive sensor designed for reliable and repeatable non-contact detection of metallic objects in industrial machinery, factory automation and machine-control applications. Its compact M8 × 1 threaded construction makes it suitable for installations where space is limited.
The sensor provides a 2 mm sensing range, with a real sensing range of 2 ± 10% mm and an operating distance of 0–1.6 mm. This allows suitable metallic machine components, workpieces and moving parts to be detected without physical contact.
The IE5111 uses an NPN normally-closed output and operates from a 10–36 V DC supply. Its 800 Hz switching frequency supports repetitive detection tasks in automated machinery and production equipment.
2 mm sensing range
Real sensing range: 2 ± 10% mm
Operating distance: 0–1.6 mm
NPN electrical design
Normally-closed output
10–36 V DC operating voltage
800 Hz switching frequency
200 mA permanent switching current
M8 × 1 threaded housing
35 mm overall length
Non-flush mounting
PBT housing material
2 m PVC cable
3 × 0.14 mm² cable construction
Yellow switching-status LED
IP67 protection rating
-25 °C to +80 °C ambient temperature
Suitable for metallic object detection
Suitable for machine position detection
Suitable for factory automation
Suitable for industrial proximity sensing
The IE5111 provides dependable non-contact metal detection for industrial machinery, automated production equipment and factory automation systems. Its 2 mm sensing range enables suitable metallic targets to be detected without mechanical contact.
The 800 Hz switching frequency supports repetitive detection operations in machinery, conveyors, assembly equipment and production systems. The NPN normally-closed output can provide a switching signal to compatible PLCs, controllers and industrial automation systems.
The sensor uses an M8 × 1 threaded housing with an overall length of 35 mm. Its non-flush mounting configuration is designed to provide the specified sensing performance when installed with the appropriate surrounding clearance.
The IE5111 is supplied with a 2 m PVC cable containing 3 × 0.14 mm² conductors, providing a practical pre-wired connection for industrial machinery and automation equipment.
A yellow LED provides output-status indication, helping technicians identify the sensor's switching state during installation, commissioning and maintenance.
The sensor provides IP67 protection and operates over an ambient temperature range of -25 °C to +80 °C, supporting use in a broad range of industrial environments.
The IE5111 is suitable for Industrial Automation UAE applications requiring reliable detection of metallic objects.
Typical applications include:
Machine position detection
Metal component presence detection
Conveyor monitoring
Automated counting
Assembly machinery
Packaging equipment
Production-line monitoring
Material-handling equipment
Machine status feedback
Factory automation
For Industrial automation companies in UAE, Industrial automation companies UAE and businesses developing Industrial automation systems in UAE, the IE5111 provides a compact sensing solution for machine monitoring and automated process control.
The IE5111 is an Industrial Sensor designed for non-contact detection of metallic targets. It can form part of an Industrial Sensors Supplier UAE product range alongside Proximity Sensors, Photoelectric Sensors and other industrial sensing products.
For a Proximity Sensors Supplier UAE or Sensor Supplier UAE, the IE5111 provides an M8 inductive sensor with NPN normally-closed switching, a 2 mm sensing range and a 2 m cable.
The IE5111 can be integrated with compatible PLCs, industrial controllers, control panels and other Industrial Automation Components UAE.
For an Industrial Automation Supplier in UAE, Industrial Automation Suppliers UAE, Automation Products Supplier UAE or Industrial Automation Equipment UAE, it provides a practical sensing component for machine builders, manufacturers and automation integrators.
The sensor can also be incorporated with Factory Automation Components used in manufacturing, assembly, material handling and automated production systems.
The IE5111 can form part of Industrial Equipment & Supplies, Industrial Equipment & Supplies in UAE, Industrial Equipment & Supplies suppliers, Industrial Equipment in UAE and Industrial Electrical Equipment portfolios.
It can be installed alongside PLCs, control equipment, drives, actuators and other automation components where reliable metallic target detection is required.
For companies providing Industrial automation solutions in UAE, the IE5111 offers a practical solution for metallic object detection in compact machinery and automated equipment.
Its 2 mm sensing range, NPN normally-closed output, 800 Hz switching frequency, M8 × 1 housing, 2 m PVC cable and IP67 protection make it suitable for a variety of industrial proximity-sensing and machine-control applications.
| Specification | Details |
|---|---|
| Product Code | IE5111 |
| Manufacturer | IFM electronic |
| Model / Part Number | IEC3002-BNKG |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive Proximity Sensor |
| Electrical Design | NPN |
| Output Function | Normally Closed (NC) |
| Operating Voltage | 10–36 V DC |
| Current Consumption | 15 mA at 24 V |
| Protection Class | III |
| Reverse Polarity Protection | No |
| Maximum Voltage Drop | 2.5 V |
| Permanent Switching Current | 200 mA |
| Switching Frequency | 800 Hz |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Sensing Range | 2 mm |
| Real Sensing Range (Sr) | 2 ± 10% mm |
| Operating Distance | 0–1.6 mm |
| Increased Sensing Range | No |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.4 |
| Correction Factor – Aluminium | 0.3 |
| Correction Factor – Copper | 0.2 |
| Hysteresis | 1–15% of Sr |
| Switch-Point Drift | -10 to +10% of Sr |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 35 mm |
| Mounting | Non-flush mountable |
| Housing Material | PBT |
| Connection | 2 m PVC cable |
| Cable Construction | 3 × 0.14 mm² |
| Switching Status Indication | Yellow LED |
| Protection Rating | IP67 |
| Ambient Temperature | -25 °C to +80 °C |
| EMC Standard | EN 60947-5-2 |
| EMC Emission | EN 55011 Class B |
| MTTF | Approx. 5515 years |
| Weight | Approx. 42.8 g |
| Accessories Included | 2 × M8 lock nuts, 2 × rubber washers |
| Pack Quantity | 1 piece |
| Typical Applications | Industrial automation, factory automation, machine control, metal detection, position sensing, conveyor monitoring and proximity detection |
