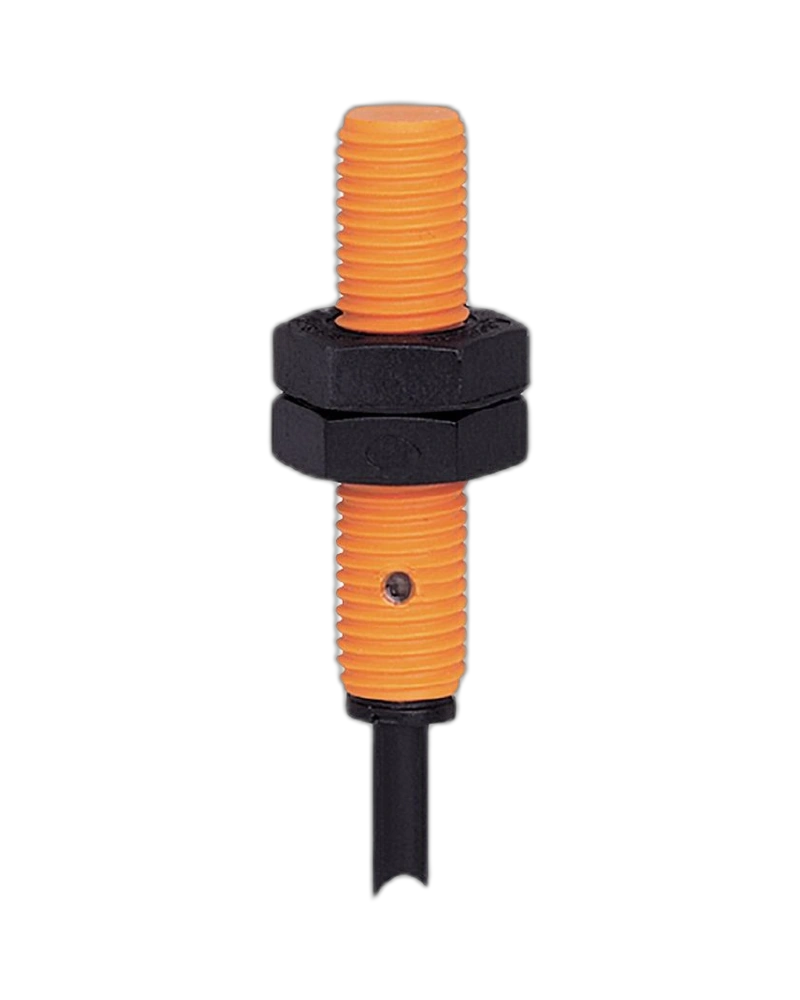

The IFM IE5100 IEC3002-BPKG/6M is a compact inductive proximity sensor for reliable non-contact detection of metallic objects in industrial automation and machine-control applications. It features a 2 mm sensing range, PNP normally-open output, 10–36 V DC operation, 800 Hz switching frequency, M8 × 1 threaded housing, non-flush mounting and a 6 m PVC cable, with IP67 protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IE5100 IEC3002-BPKG/6M is an inductive proximity sensor designed for reliable and repeatable non-contact detection of metallic objects in industrial machinery, factory automation and machine-control applications.
The sensor provides a 2 mm sensing range, with a real sensing range of 2 ± 10% mm and an operating distance of 0–1.6 mm. This makes it suitable for detecting metallic machine components, workpieces and moving parts without physical contact.
The IE5100 uses a PNP normally-open output and operates from a 10–36 V DC supply. Its 800 Hz switching frequency supports repetitive detection tasks in automated machinery and production equipment.
2 mm sensing range
Real sensing range: 2 ± 10% mm
Operating distance: 0–1.6 mm
PNP electrical design
Normally-open output
10–36 V DC operating voltage
800 Hz switching frequency
200 mA permanent switching current
2.5 V maximum voltage drop
M8 × 1 threaded housing
35 mm overall length
Non-flush mounting
PBT housing
6 m PVC cable
3 × 0.14 mm² cable construction
IP67 protection rating
-25 °C to +85 °C ambient temperature
Short-circuit protection
Overload protection
Compact sensor construction
Reliable non-contact metal detection
Suitable for machine position detection
Suitable for factory automation
Suitable for industrial proximity sensing
The IE5100 provides reliable non-contact metal detection for industrial machinery and automated production equipment. Its 2 mm sensing range allows metallic targets to be detected at a controlled distance without mechanical contact.
The 800 Hz switching frequency supports repetitive detection operations in automated machinery, conveyors, assembly equipment and production systems. The PNP normally-open output can provide a switching signal to compatible PLCs, controllers and industrial automation systems.
The M8 × 1 threaded housing has an overall length of 35 mm. Its non-flush mounting configuration allows the sensor to be positioned for its specified sensing performance while maintaining a compact installation.
The 6 m PVC cable provides additional installation flexibility where the sensor is positioned at a greater distance from the control cabinet, PLC or connection point. The pre-wired cable design can simplify sensor installation in machinery and factory automation equipment.
The IE5100 provides IP67 protection and operates over an ambient temperature range of -25 °C to +85 °C, making it suitable for a broad range of industrial environments.
The IE5100 is suitable for Industrial Automation UAE applications involving reliable detection of metallic objects.
Typical applications include:
Machine position detection
Metal component presence detection
Conveyor monitoring
Automated counting
Assembly machinery
Packaging equipment
Production-line monitoring
Material-handling equipment
Machine status feedback
Factory automation
For Industrial automation companies in UAE, Industrial automation companies UAE and businesses developing Industrial automation systems in UAE, the IE5100 provides a practical inductive sensing solution for machine monitoring and automated process control.
The IE5100 is an Industrial Sensor designed for non-contact detection of metallic targets. It can form part of an Industrial Sensors Supplier UAE product range alongside Proximity Sensors, Photoelectric Sensors and other industrial sensing technologies.
For a Proximity Sensors Supplier UAE or Sensor Supplier UAE, the IE5100 provides a compact M8 inductive sensor with PNP normally-open switching, 2 mm sensing capability and an extended 6 m cable.
The IE5100 can be integrated with compatible PLCs, industrial controllers, control panels and other Industrial Automation Components UAE.
For an Industrial Automation Supplier in UAE, Industrial Automation Suppliers UAE, Automation Products Supplier UAE or Industrial Automation Equipment UAE, the sensor provides a practical detection component for machine builders, manufacturers and automation integrators.
It can also be used alongside Factory Automation Components in manufacturing, assembly, material handling and automated production systems.
The IE5100 can form part of Industrial Equipment & Supplies, Industrial Equipment & Supplies in UAE, Industrial Equipment & Supplies suppliers, Industrial Equipment in UAE and Industrial Electrical Equipment portfolios.
Its extended 6 m cable can be particularly useful when sensor installation requires additional cable reach between the sensing location and the automation control system.
For companies providing Industrial automation solutions in UAE, the IE5100 offers a practical solution for metallic object detection in machinery and automated equipment.
Its 2 mm sensing range, PNP normally-open output, 800 Hz switching frequency, M8 × 1 housing, 6 m PVC cable and IP67 protection make it suitable for a variety of industrial proximity-sensing applications.
| Specification | Details |
|---|---|
| Product Code | IE5100 |
| Manufacturer | IFM electronic |
| Model / Part Number | IEC3002-BPKG/6M |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive Proximity Sensor |
| Electrical Design | PNP |
| Output Function | Normally Open (NO) |
| Operating Voltage | 10–36 V DC |
| Current Consumption | < 15 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Maximum Voltage Drop | 2.5 V |
| Permanent Switching Current | 200 mA |
| Switching Frequency | 800 Hz |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Sensing Range | 2 mm |
| Real Sensing Range (Sr) | 2 ± 10% mm |
| Operating Distance | 0–1.6 mm |
| Increased Sensing Range | No |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.4 |
| Correction Factor – Aluminium | 0.3 |
| Correction Factor – Copper | 0.2 |
| Hysteresis | 1–15% of Sr |
| Switch-Point Drift | -10 to +10% of Sr |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 35 mm |
| Mounting | Non-flush mountable |
| Housing Material | PBT |
| Connection | 6 m PVC cable |
| Cable Construction | 3 × 0.14 mm² |
| Switching Status Indication | LED |
| Protection Rating | IP67 |
| Ambient Temperature | -25 °C to +85 °C |
| EMC Standard | EN 60947-5-2 |
| EMC Emission | EN 55011 Class B |
| Accessories Included | 2 lock nuts, 2 rubber washers |
| Pack Quantity | 1 piece |
| Typical Applications | Industrial automation, factory automation, machine control, metal detection, position sensing, conveyor monitoring and proximity detection |
