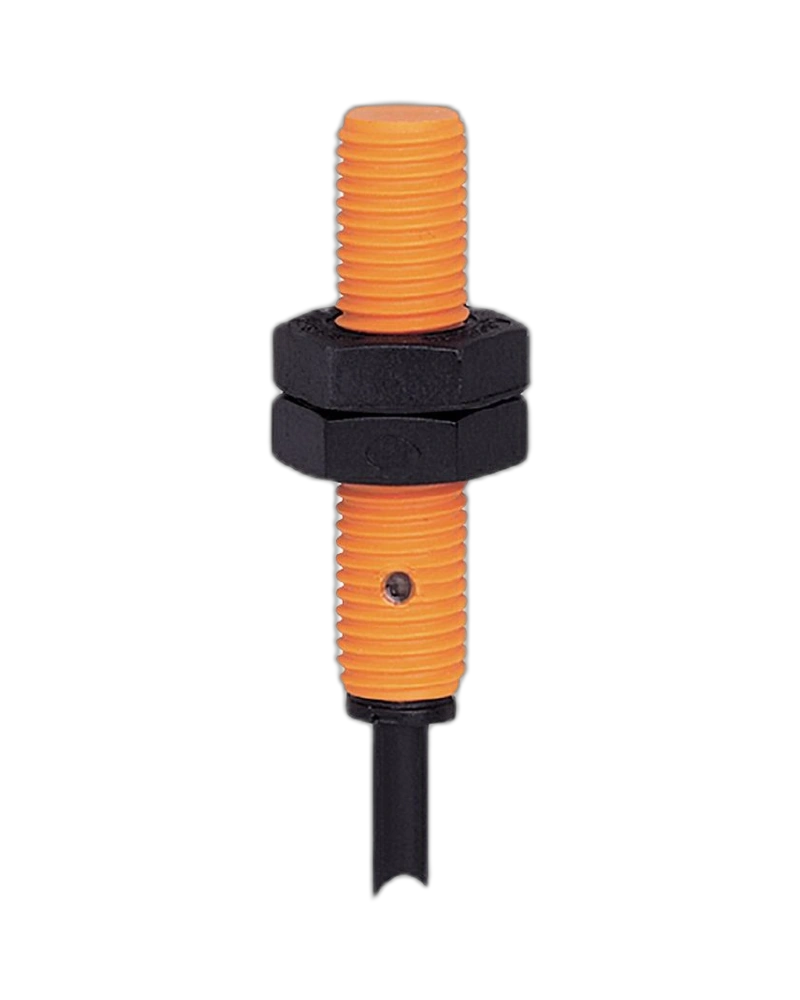

The IFM IE5099 IEC3002-BPKG is a compact inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial automation and machine-control applications. It features a 2 mm sensing range, PNP normally-open output, 10–36 V DC operation, 800 Hz switching frequency, M8 × 1 threaded housing, non-flush mounting and 2 m PVC cable, with IP67 protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IE5099 IEC3002-BPKG is a compact inductive sensor designed for reliable and repeatable non-contact detection of metallic objects in industrial machinery, factory automation and machine-control systems. Its short M8 × 1 threaded housing makes it suitable for applications where a compact sensor is required.
The IE5099 provides a 2 mm sensing range, with a real sensing range of 2 ± 10% mm and an operating distance of 0–1.6 mm. The sensor is designed for non-flush mounting, making correct installation clearance important for reliable operation.
The sensor uses a PNP normally-open output and operates from a 10–36 V DC supply. Its 800 Hz switching frequency supports rapid and repetitive detection of metallic components in automated machinery and production equipment.
2 mm sensing range
Real sensing range: 2 ± 10% mm
Operating distance: 0–1.6 mm
PNP electrical design
Normally-open output
10–36 V DC operating voltage
800 Hz switching frequency
200 mA permanent switching current
2.5 V maximum voltage drop
M8 × 1 threaded housing
35 mm overall length
Non-flush mounting
PBT housing material
2 m PVC cable
3 × 0.14 mm² cable construction
IP67 protection rating
-25 °C to +85 °C ambient temperature
Short-circuit protection
Overload protection
Compact sensor design
Suitable for metallic object detection
Suitable for machine position detection
Suitable for factory automation
Suitable for industrial proximity sensing
The IE5099 provides dependable non-contact metal detection for industrial machinery, production equipment and automated systems. Its 2 mm sensing range allows suitable metallic targets to be detected without mechanical contact, helping reduce wear associated with conventional mechanical switches.
The 800 Hz switching frequency makes the sensor suitable for repetitive detection operations where metallic objects, machine parts or workpieces pass through a sensing position at relatively high speed.
The sensor has an M8 × 1 threaded housing with an overall length of 35 mm. Its non-flush mounting configuration allows the sensor to provide the specified sensing performance when installed with the appropriate surrounding clearance.
The IE5099 is supplied with a 2 m PVC cable and a 3-wire connection, providing a practical pre-wired solution for industrial control installations.
The PNP normally-open output allows the IE5099 to provide a switching signal to compatible PLCs, industrial controllers and automation systems. This makes it suitable for machine position feedback, component detection and automated process monitoring.
The sensor provides IP67 protection and is specified for an ambient temperature range of -25 °C to +85 °C, supporting operation in a broad range of industrial environments.
The IE5099 is suitable for Industrial Automation UAE applications requiring reliable detection of metallic objects.
Typical applications include:
Machine position detection
Metal component presence detection
Conveyor monitoring
Automated counting
Assembly machinery
Packaging equipment
Production-line monitoring
Material-handling equipment
Machine status feedback
Factory automation
For Industrial automation companies in UAE, Industrial automation companies UAE and businesses developing Industrial automation systems in UAE, the IE5099 provides a compact inductive sensing solution for machine monitoring and automated process control.
The IE5099 is an Industrial Sensor designed for non-contact detection of metallic targets. It can form part of an Industrial Sensors Supplier UAE product range alongside Proximity Sensors, Photoelectric Sensors and other industrial sensing products.
For a Proximity Sensors Supplier UAE or Sensor Supplier UAE, the IE5099 provides a compact M8 inductive sensor with PNP normally-open switching, a 2 mm sensing range and a 2 m cable.
The IE5099 can be integrated with compatible PLCs, industrial controllers, control panels and other Industrial Automation Components UAE.
For an Industrial Automation Supplier in UAE, Industrial Automation Suppliers UAE, Automation Products Supplier UAE or Industrial Automation Equipment UAE, it provides a practical sensing component for machine builders, manufacturers and automation integrators.
The sensor can also be incorporated with Factory Automation Components used in manufacturing, assembly, material handling and automated production systems.
The IE5099 can form part of Industrial Equipment & Supplies, Industrial Equipment & Supplies in UAE, Industrial Equipment & Supplies suppliers, Industrial Equipment in UAE and Industrial Electrical Equipment portfolios.
It can be installed alongside PLCs, control equipment, drives, actuators and other automation components where reliable metallic target detection is required.
For companies providing Industrial automation solutions in UAE, the IE5099 offers a practical solution for metallic object detection in compact machinery and automated equipment.
Its 2 mm sensing range, PNP normally-open output, 800 Hz switching frequency, M8 × 1 housing, 2 m PVC cable and IP67 protection make it suitable for a range of machine-control and factory-automation applications.
| Specification | Details |
|---|---|
| Product Code | IE5099 |
| Manufacturer | IFM electronic |
| Model / Part Number | IEC3002-BPKG |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive Proximity Sensor |
| Electrical Design | PNP |
| Output Function | Normally Open (NO) |
| Operating Voltage | 10–36 V DC |
| Current Consumption | < 15 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Maximum Voltage Drop | 2.5 V |
| Permanent Switching Current | 200 mA |
| Switching Frequency | 800 Hz |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Sensing Range | 2 mm |
| Real Sensing Range (Sr) | 2 ± 10% mm |
| Operating Distance | 0–1.6 mm |
| Increased Sensing Range | No |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.4 |
| Correction Factor – Aluminium | 0.3 |
| Correction Factor – Copper | 0.2 |
| Hysteresis | 1–15% of Sr |
| Switch-Point Drift | -10 to +10% of Sr |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 35 mm |
| Mounting | Non-flush mountable |
| Housing Material | PBT |
| Connection | 2 m PVC cable |
| Cable Construction | 3 × 0.14 mm² |
| Switching Status Indication | LED |
| Protection Rating | IP67 |
| Ambient Temperature | -25 °C to +85 °C |
| EMC Standard | EN 60947-5-2 |
| EMC Emission | EN 55011 Class B |
| Accessories Included | 2 lock nuts, 2 rubber washers |
| Pack Quantity | 1 piece |
| Typical Applications | Industrial automation, factory automation, machine control, metal detection, position sensing, conveyor monitoring and proximity detection |
