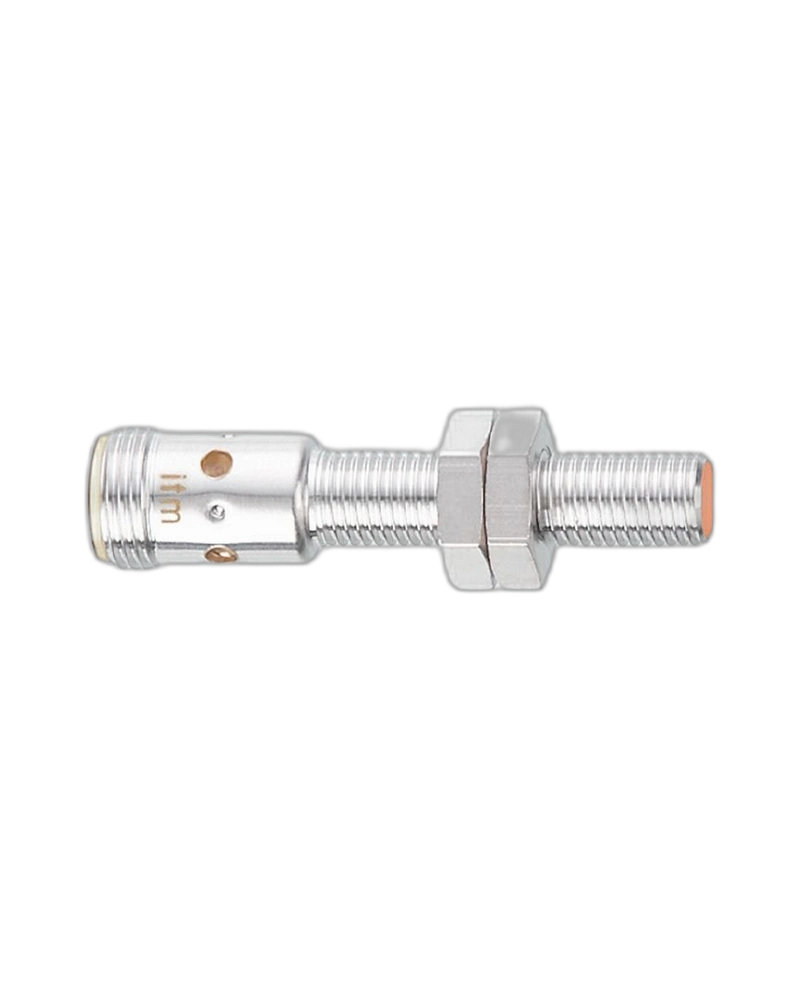

The IFM IE5091 IEB3001-APKG/US-104 is a compact inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial automation and machine-control applications. It features a 1 mm sensing range, PNP normally-closed output, 10–30 V DC operation, 750 Hz switching frequency, M8 × 1 threaded housing, flush mounting and M12 connector, with IP67 protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IE5091 IEB3001-APKG/US-104 is a compact inductive sensor designed for reliable and repeatable non-contact detection of metallic objects. Its space-saving M8 × 1 threaded housing is suitable for machinery, fixtures and industrial automation equipment where installation space is restricted.
The sensor provides a 1 mm sensing range, with a real sensing range of 1 ± 10% mm and an operating distance of 0–0.81 mm. This makes it suitable for close-range detection of metallic machine components, workpieces and moving parts.
The IE5091 uses a PNP normally-closed output and operates from a 10–30 V DC supply. Its 750 Hz switching frequency supports repetitive detection tasks in automated machinery and production equipment.
1 mm sensing range
Real sensing range: 1 ± 10% mm
Operating distance: 0–0.81 mm
PNP electrical design
Normally-closed output
10–30 V DC operating voltage
750 Hz switching frequency
100 mA permanent switching current
2.5 V maximum voltage drop
M8 × 1 threaded housing
50 mm overall length
Flush mountable
Robust metal housing
Brass housing with white-bronze coating
M12 connector
A-coded connector
Yellow switching-status LED
IP67 protection rating
-25 °C to +80 °C ambient temperature
Reverse-polarity protection
Short-circuit protection
Overload protection
Compact design for restricted installation spaces
Suitable for metallic object detection
Suitable for machine position detection
Suitable for factory automation
Suitable for industrial proximity sensing
The IE5091 provides reliable non-contact metal detection for industrial machinery, automated production equipment and factory automation systems. Its 1 mm sensing range allows suitable metallic targets to be detected at a short and controlled distance without physical contact.
The 750 Hz switching frequency supports repetitive detection operations in automated machinery. Its PNP normally-closed output provides a switching signal to compatible PLCs, industrial controllers and automation systems.
The sensor uses an M8 × 1 threaded housing with an overall length of 50 mm. Its flush-mountable construction allows it to be integrated neatly into compatible machine structures and fixtures. IFM's CAD documentation specifically describes the IE5091 as an M8 × 1 sensor with a 1 mm sensing range and flush installation.
The IE5091 features a robust M12 connector, providing a detachable connection suitable for industrial sensor cabling. This connector arrangement can simplify installation, replacement and maintenance in automation equipment.
A yellow switching-status LED provides visual feedback during installation, commissioning and maintenance, helping technicians identify the sensor's switching condition.
The sensor provides IP67 protection and operates over an ambient temperature range of -25 °C to +80 °C, supporting use in a broad range of industrial environments.
The IE5091 is suitable for Industrial Automation UAE applications requiring reliable detection of metallic objects.
Typical applications include:
Machine position detection
Metal component presence detection
Conveyor monitoring
Automated counting
Assembly machinery
Packaging equipment
Production-line monitoring
Material-handling equipment
Machine status feedback
Factory automation
For Industrial automation companies in UAE, Industrial automation companies UAE and businesses developing Industrial automation systems in UAE, the IE5091 provides a compact sensing solution for machine monitoring and automated process control.
The IE5091 is an Industrial Sensor designed for non-contact detection of metallic targets. It can form part of an Industrial Sensors Supplier UAE product range alongside other Proximity Sensors, Photoelectric Sensors and industrial sensing products.
For a Proximity Sensors Supplier UAE or Sensor Supplier UAE, the IE5091 provides an M8 inductive sensor with PNP normally-closed switching, flush mounting and an M12 connector.
The IE5091 can be integrated with compatible PLCs, industrial controllers, control panels and other Industrial Automation Components UAE.
For an Industrial Automation Supplier in UAE, Industrial Automation Suppliers UAE, Automation Products Supplier UAE or Industrial Automation Equipment UAE, it provides a compact sensing component for machine builders, manufacturers and automation integrators.
The sensor can also be incorporated with Factory Automation Components used in manufacturing, assembly, material handling and automated production systems.
The IE5091 can form part of Industrial Equipment & Supplies, Industrial Equipment & Supplies in UAE, Industrial Equipment & Supplies suppliers, Industrial Equipment in UAE and Industrial Electrical Equipment portfolios.
It can be installed alongside industrial control equipment, PLCs, drives, actuators and other automation components where reliable metallic target detection is required.
For companies providing Industrial automation solutions in UAE, the IE5091 offers a practical solution for close-range metallic object detection.
Its 1 mm sensing range, PNP normally-closed output, 750 Hz switching frequency, compact M8 × 1 housing, M12 connector and IP67 protection make it suitable for machinery and factory automation applications where reliable proximity detection is required.
| Specification | Details |
|---|---|
| Product Code | IE5091 |
| Manufacturer | IFM electronic |
| Model / Part Number | IEB3001-APKG/US-104 |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive Proximity Sensor |
| Electrical Design | PNP |
| Output Function | Normally Closed (NC) |
| Operating Voltage | 10–30 V DC |
| Current Consumption | < 10 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Maximum Voltage Drop | 2.5 V |
| Permanent Switching Current | 100 mA |
| Switching Frequency | 750 Hz |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Sensing Range | 1 mm |
| Real Sensing Range (Sr) | 1 ± 10% mm |
| Operating Distance | 0–0.81 mm |
| Increased Sensing Range | No |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.3 |
| Correction Factor – Aluminium | 0.3 |
| Correction Factor – Copper | 0.1 |
| Hysteresis | 1–20% of Sr |
| Switch-Point Drift | -10 to +10% of Sr |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 50 mm |
| Mounting | Flush mountable |
| Housing Material | Metal / Brass, white-bronze coated |
| Sensing Face Material | PBT |
| Connection | 1 × M12 connector |
| Connector Coding | A-coded |
| Cable Connection | 3-wire |
| Switching Status Indication | Yellow LED |
| Protection Rating | IP67 |
| Ambient Temperature | -25 °C to +80 °C |
| EMC Standard | EN 60947-5-2 |
| EMC Emission | EN 55011 Class B |
| MTTF | Approx. 1376 years |
| Accessories Included | 2 × mounting nuts |
| Pack Quantity | 1 piece |
| Typical Applications | Industrial automation, factory automation, machine control, metal detection, position sensing and proximity detection |
