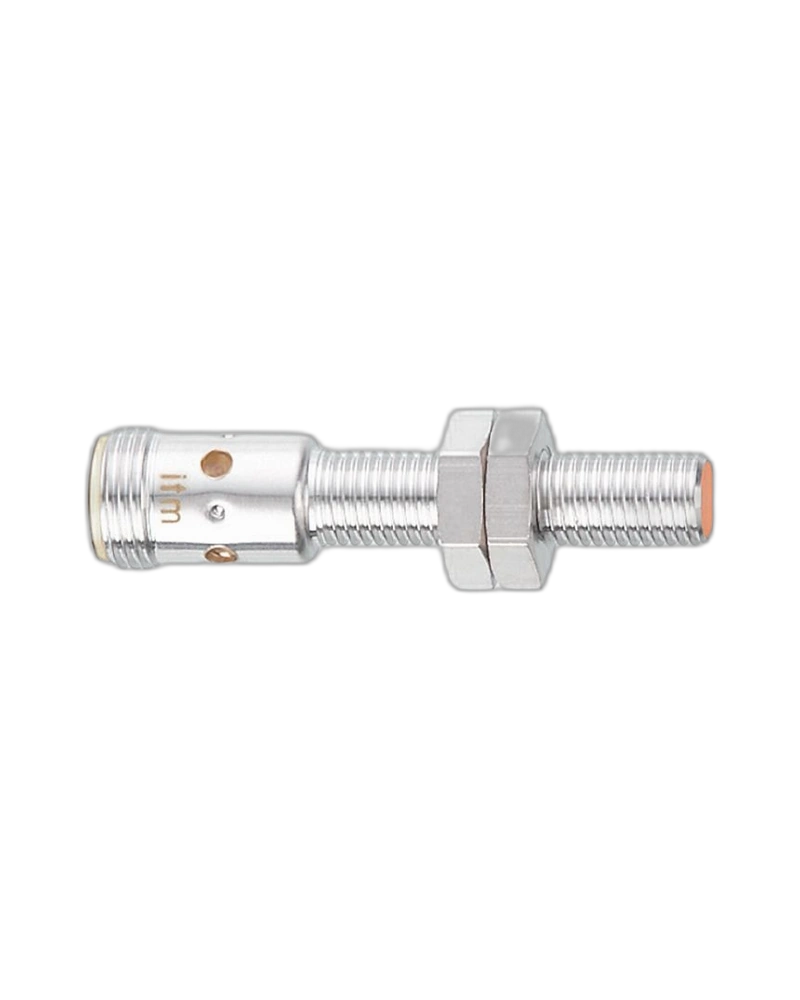

The IFM IE5090 IEB3001-BPKG/US-100-DPS is a compact inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial automation and machine-control applications. It features a 1 mm sensing range, PNP normally-open output, 10–30 V DC operation, 750 Hz switching frequency, M8 × 1 threaded housing, flush mounting and an M12 A-coded connector, with IP67 protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IE5090 IEB3001-BPKG/US-100-DPS is an inductive proximity sensor designed for reliable and repeatable non-contact detection of metallic objects. Its compact threaded M8 × 1 construction makes it suitable for machinery, fixtures and industrial automation equipment where dependable proximity detection is required.
The sensor provides a 1 mm sensing range, with a real sensing range of 1 ± 10% mm and an operating distance of 0–0.81 mm. This makes it suitable for detecting metallic components, machine parts and workpieces at short distances.
The IE5090 uses a PNP normally-open output and operates from a 10–30 V DC supply. Its 750 Hz switching frequency supports repetitive detection tasks in automated machinery and production equipment.
1 mm sensing range
Real sensing range: 1 ± 10% mm
Operating distance: 0–0.81 mm
PNP electrical design
Normally-open output
10–30 V DC operating voltage
750 Hz switching frequency
100 mA permanent switching current
2.5 V maximum voltage drop
M8 × 1 threaded housing
50 mm overall length
Flush mountable
Brass housing with white-bronze coating
Orange LCP sensing face
M12 A-coded connector
1 yellow switching-status LED
IP67 protection rating
-25 °C to +80 °C ambient temperature
Reverse-polarity protection
Short-circuit protection
Overload protection
Compact industrial construction
Suitable for metallic object detection
Suitable for machine position detection
Suitable for factory automation
Suitable for industrial proximity sensing
The IE5090 provides reliable non-contact metal detection for industrial machinery, automated production equipment and factory automation systems. Its 1 mm sensing range is suitable for applications where metallic targets need to be detected at a short and controlled distance.
The 750 Hz switching frequency supports repetitive detection operations in automated machinery. The PNP normally-open output can provide a switching signal to compatible PLCs, industrial controllers and automation systems.
The sensor uses an M8 × 1 threaded housing with dimensions of 50 mm overall length. Its flush-mountable design allows it to be installed neatly into compatible machine structures and fixtures.
The IE5090 uses an M12 A-coded connector, providing a practical detachable connection for industrial sensor cabling. The connector-based design can simplify installation, replacement and maintenance compared with permanently wired sensor versions.
A yellow LED switching-status indicator provides visual feedback of the sensor's operating state, helping technicians during installation, commissioning and maintenance.
The sensor provides IP67 protection and operates over an ambient temperature range of -25 °C to +80 °C, supporting reliable operation in a wide range of industrial environments.
The IE5090 is suitable for Industrial Automation UAE applications requiring reliable detection of metallic objects.
Typical applications include:
Machine position detection
Metal component presence detection
Conveyor monitoring
Automated counting
Assembly machinery
Packaging equipment
Production-line monitoring
Material-handling equipment
Machine status feedback
Factory automation
For Industrial automation companies in UAE, Industrial automation companies UAE and businesses developing Industrial automation systems in UAE, the IE5090 provides a compact sensing solution for machine monitoring and automated process control.
The IE5090 is an Industrial Sensor designed for non-contact detection of metallic targets. It can form part of an Industrial Sensors Supplier UAE product range alongside other Proximity Sensors, Photoelectric Sensors and industrial sensing products.
For a Proximity Sensors Supplier UAE or Sensor Supplier UAE, the IE5090 provides an M8 inductive sensor with PNP normally-open switching, flush mounting and an M12 connector.
The IE5090 can be integrated with compatible PLCs, industrial controllers, control panels and other Industrial Automation Components UAE.
For an Industrial Automation Supplier in UAE, Industrial Automation Suppliers UAE, Automation Products Supplier UAE or Industrial Automation Equipment UAE, it provides a compact sensing component for machine builders, manufacturers and automation integrators.
The sensor can also be incorporated with Factory Automation Components used in manufacturing, assembly, material handling and automated production systems.
The IE5090 can form part of Industrial Equipment & Supplies, Industrial Equipment & Supplies in UAE, Industrial Equipment & Supplies suppliers, Industrial Equipment in UAE and Industrial Electrical Equipment portfolios.
It can be installed alongside industrial control equipment, PLCs, drives, actuators and other automation components where reliable metallic target detection is required.
For companies providing Industrial automation solutions in UAE, the IE5090 offers a practical solution for close-range metallic object detection.
Its 1 mm sensing range, PNP normally-open output, 750 Hz switching frequency, compact M8 × 1 housing, M12 connector and IP67 protection make it suitable for machinery and factory automation applications where reliable proximity detection is required.
| Specification | Details |
|---|---|
| Product Code | IE5090 |
| Manufacturer | IFM electronic |
| Model / Part Number | IEB3001-BPKG/US-100-DPS |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive Proximity Sensor |
| Electrical Design | PNP |
| Output Function | Normally Open (NO) |
| Operating Voltage | 10–30 V DC |
| Current Consumption | < 10 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Maximum Voltage Drop | 2.5 V |
| Permanent Switching Current | 100 mA |
| Switching Frequency | 750 Hz |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Sensing Range | 1 mm |
| Real Sensing Range (Sr) | 1 ± 10% mm |
| Operating Distance | 0–0.81 mm |
| Increased Sensing Range | No |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.3 |
| Correction Factor – Aluminium | 0.3 |
| Correction Factor – Copper | 0.1 |
| Hysteresis | 1–20% of Sr |
| Switch-Point Drift | -10 to +10% of Sr |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 50 mm |
| Mounting | Flush mountable |
| Housing Material | Brass, white-bronze coated |
| Sensing Face Material | LCP, orange |
| LED Window Material | PEI |
| Connection | 1 × M12 connector |
| Connector Coding | A-coded |
| Switching Status Indication | 1 × yellow LED |
| Protection Rating | IP67 |
| Ambient Temperature | -25 °C to +80 °C |
| EMC Standard | EN 60947-5-2 |
| EMC ESD | 4 kV CD / 8 kV AD |
| EMC Radiated RF | 3 V/m |
| EMC Burst | 2 kV |
| EMC Conducted RF | 3 V |
| EMC Emission | EN 55011 Class B |
| MTTF | Approx. 1376 years |
| Weight | Approx. 20.7 g |
| Tightening Torque | A = 5 mm: 1.5 Nm; B: 2 Nm |
| Accessories Included | 2 × M8 lock nuts |
| Pack Quantity | 1 piece |
| Full-Metal Housing | No |
| Typical Applications | Industrial automation, factory automation, machine control, metal detection, position sensing and proximity detection |
