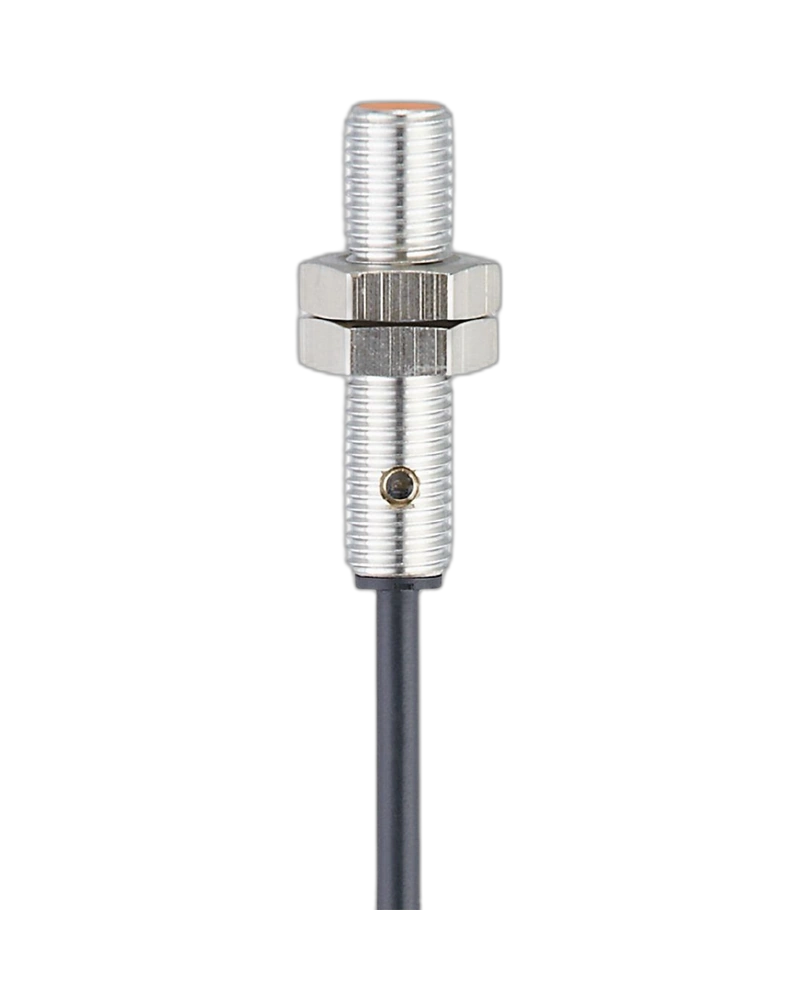

The IFM IE5086 IEB3001-BNOG is a compact inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial automation and machine-control applications. It features a 1 mm sensing range, NPN normally-closed output, 10–36 V DC operation, 750 Hz switching frequency, M8 × 1 threaded housing, flush mounting and 2 m PVC cable with IP67 protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IE5086 IEB3001-BNOG is a compact inductive sensor designed for reliable and repeatable non-contact detection of metallic objects. Its particularly short M8 × 1 threaded housing makes it suitable for machinery, fixtures and automation equipment where installation space is restricted.
The sensor provides a 1 mm sensing range, with a real sensing range of 1 ± 10% mm and an operating distance of 0–0.8 mm. This close-range detection capability makes it suitable for monitoring metallic machine components, workpieces and moving parts.
The IE5086 uses an NPN normally-closed output and operates from a 10–36 V DC supply. Its 750 Hz switching frequency supports repetitive detection operations in industrial machinery and factory automation systems.
1 mm sensing range
Real sensing range: 1 ± 10% mm
Operating distance: 0–0.8 mm
NPN electrical design
Normally-closed output
10–36 V DC operating voltage
750 Hz switching frequency
1000 Hz switching frequency with normally-open operation
200 mA permanent switching current
Less than 1 V maximum voltage drop
M8 × 1 threaded housing
35 mm overall length
Flush mountable
Brass housing with white-bronze coating
PBT sensing face
2 m PVC cable
3 × 0.14 mm² cable construction
Yellow switching-status LED
IP67 protection rating
-25 °C to +80 °C ambient temperature
Compact housing for restricted spaces
Robust metal construction
Suitable for industrial automation
Suitable for machine control
Suitable for factory automation
Suitable for metallic object detection
Suitable for proximity sensing
The IE5086 provides dependable non-contact metal detection for industrial machinery, production equipment and factory automation systems. Its 1 mm sensing range allows metallic targets to be detected at a short and controlled distance without physical contact.
The 750 Hz switching frequency supports repetitive detection operations in automated machinery. Its NPN normally-closed output provides a switching signal to compatible control systems and can be used for machine monitoring, position detection and component presence applications.
The compact M8 × 1 threaded housing has an overall length of 35 mm and is designed for flush mounting. This space-saving construction makes the sensor suitable for machine structures and fixtures where installation space is limited.
The IE5086 is supplied with a 2 m PVC cable containing 3 × 0.14 mm² conductors, providing a practical pre-wired connection for industrial installations.
A yellow switching-status LED provides visual feedback of the sensor's switching state, assisting technicians during installation, commissioning and maintenance.
The sensor provides IP67 protection and operates within an ambient temperature range of -25 °C to +80 °C, supporting use in a wide range of industrial environments.
The IE5086 is suitable for Industrial Automation UAE applications requiring compact and reliable detection of metallic objects.
Typical applications include:
Machine position detection
Metal component presence detection
Conveyor monitoring
Automated counting
Assembly machinery
Packaging equipment
Production-line monitoring
Material-handling equipment
Machine status feedback
Factory automation
For Industrial automation companies in UAE, Industrial automation companies UAE and businesses developing Industrial automation systems in UAE, the IE5086 provides a compact sensing solution for machine monitoring and automated process control.
The IE5086 is an Industrial Sensor designed specifically for non-contact detection of metallic targets. It can form part of an Industrial Sensors Supplier UAE product range together with Proximity Sensors, Photoelectric Sensors and other industrial sensing technologies.
For a Proximity Sensors Supplier UAE or Sensor Supplier UAE, the IE5086 is suitable for customers requiring an M8 inductive sensor with NPN normally-closed switching, flush mounting and a 2 m cable.
The IE5086 can be integrated with compatible PLCs, industrial controllers, control panels and other Industrial Automation Components UAE.
For an Industrial Automation Supplier in UAE, Industrial Automation Suppliers UAE, Automation Products Supplier UAE or Industrial Automation Equipment UAE, it provides a compact sensing component for machine builders, manufacturers and automation integrators.
The sensor can also be incorporated with Factory Automation Components used in manufacturing, assembly, material handling and automated production systems.
The IE5086 can form part of Industrial Equipment & Supplies, Industrial Equipment & Supplies in UAE, Industrial Equipment & Supplies suppliers, Industrial Equipment in UAE and Industrial Electrical Equipment portfolios.
It can be installed alongside industrial control equipment, PLCs, drives, actuators and other automation components where reliable metallic target detection is required.
For companies delivering Industrial automation solutions in UAE, the IE5086 provides a practical solution for close-range metallic object detection.
Its compact M8 × 1 construction, 1 mm sensing range, NPN normally-closed output, 750 Hz switching frequency and IP67 protection make it suitable for machinery and factory automation applications where reliable proximity detection is required.
| Specification | Details |
|---|---|
| Product Code | IE5086 |
| Manufacturer | IFM electronic |
| Model / Part Number | IEB3001-BNOG |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive Proximity Sensor |
| Electrical Design | NPN |
| Output Function | Normally Closed (NC) |
| Operating Voltage | 10–36 V DC |
| Current Consumption | < 15 mA at 24 V |
| Protection Class | III |
| Reverse Polarity Protection | No |
| Maximum Voltage Drop | < 1 V |
| Permanent Switching Current | 200 mA |
| Switching Frequency | 750 Hz |
| Switching Frequency – Normally Open | 1000 Hz |
| Short-Circuit Protection | No |
| Overload Protection | No |
| Sensing Range | 1 mm |
| Real Sensing Range (Sr) | 1 ± 10% mm |
| Operating Distance | 0–0.8 mm |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.4 |
| Correction Factor – Aluminium | 0.3 |
| Correction Factor – Copper | 0.2 |
| Hysteresis | 1–15% of Sr |
| Switch-Point Drift | -10 to +10% of Sr |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 35 mm |
| Mounting | Flush mountable |
| Housing Material | Brass, white-bronze coated |
| Sensing Face Material | PBT |
| Connection | 2 m PVC cable |
| Cable Construction | 3 × 0.14 mm² |
| Switching Status Indication | 1 × yellow LED |
| Protection Rating | IP67 |
| Ambient Temperature | -25 °C to +80 °C |
| EMC Standard | EN 60947-5-2 |
| EMC Emission | EN 55011 Class B |
| MTTF | Approx. 5515 years |
| Weight | Approx. 51 g |
| Accessories Included | 2 × mounting nuts |
| Pack Quantity | 1 piece |
| Typical Applications | Industrial automation, factory automation, machine control, metal detection, position sensing and proximity detection |
