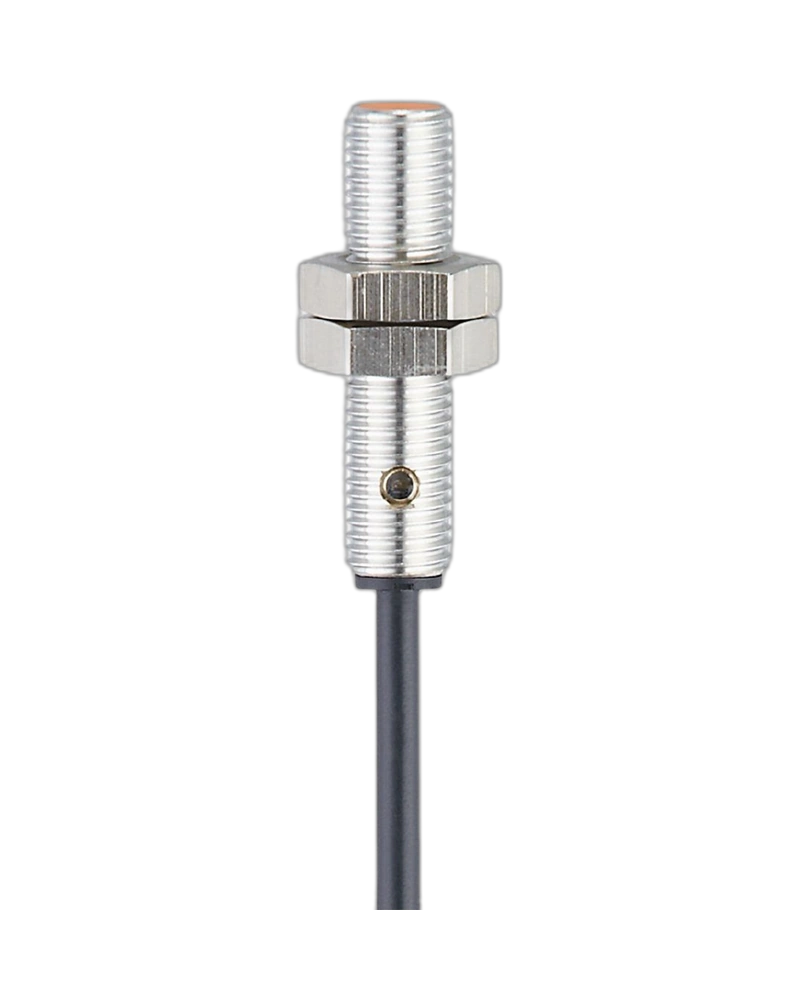

The IFM IE5078 IEB3001-APKG is a compact inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial automation, machinery and factory applications. It features a 1 mm sensing range, PNP normally-closed output, 10–36 V DC operation, 750 Hz switching frequency, M8 × 1 threaded housing, flush mounting and a 2 m PVC cable. Its robust metal housing and IP67 protection make it suitable for demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IE5078 IEB3001-APKG is an inductive sensor designed for reliable and repeatable detection of metallic objects without physical contact. Its particularly short M8 × 1 housing makes it suitable for installations where mounting space is restricted.
The sensor provides a 1 mm nominal sensing range, with a real sensing range of 1 ± 10% mm and an operating distance of 0–0.8 mm. This makes it suitable for close-range detection of metallic machine components, workpieces and moving parts.
The IE5078 uses a PNP normally-closed output and operates from a 10–36 V DC supply. Its 750 Hz switching frequency supports repetitive detection tasks in automated machinery and production equipment.
1 mm sensing range
Real sensing range: 1 ± 10% mm
Operating distance: 0–0.8 mm
PNP electrical design
Normally-closed output
10–36 V DC operating voltage
750 Hz switching frequency
200 mA permanent switching current
2.5 V maximum voltage drop
M8 × 1 threaded housing
35 mm overall length
Flush mountable
Brass housing with white-bronze coating
PBT sensing face
2 m PVC cable
3 × 0.14 mm² cable construction
Yellow switching-status LED
IP67 protection rating
-25 °C to +80 °C ambient temperature
Reverse-polarity protection
Short-circuit protection
Overload protection
Compact housing for restricted spaces
Robust metal construction
Suitable for industrial automation
Suitable for machine control
Suitable for factory automation
Suitable for proximity detection
Suitable for metallic object detection
The IE5078 provides dependable non-contact metal detection for industrial machinery and automated production equipment. Its 1 mm sensing range allows metallic objects to be detected at a short and controlled distance, supporting machine-position monitoring, component presence detection and proximity sensing.
The 750 Hz switching frequency supports repetitive detection operations in automated machinery. Its PNP normally-closed output can provide a switching signal to compatible PLCs, controllers and industrial automation systems.
The sensor features a compact M8 × 1 threaded housing with a 35 mm overall length. Its flush-mountable construction allows it to be installed neatly into suitable machine structures and fixtures.
The IE5078 is supplied with a 2 m PVC cable with 3 × 0.14 mm² conductors, providing a pre-wired connection for installations where a fixed cable connection is preferred.
A yellow switching-status LED provides visual feedback during installation, commissioning and maintenance, helping technicians identify the sensor's switching condition.
The sensor provides IP67 protection and operates over an ambient temperature range of -25 °C to +80 °C, making it suitable for a broad range of industrial machinery and factory environments.
For Industrial Automation UAE, the IE5078 can be integrated with PLCs, industrial controllers, control panels and other automation equipment for proximity detection and machine monitoring.
For Industrial automation companies in UAE, Industrial automation companies UAE and businesses developing Industrial automation systems in UAE, the sensor provides a compact solution for metallic object detection, machine-position feedback and automated process control.
The IE5078 can form part of an Industrial Equipment & Supplies portfolio for companies supplying Industrial Equipment & Supplies in UAE, Industrial Equipment & Supplies suppliers, Industrial Equipment in UAE and Industrial Electrical Equipment.
For an Industrial Automation Supplier in UAE, Industrial Automation Suppliers UAE, Automation Products Supplier UAE and Industrial Automation Equipment UAE, the IE5078 is suitable for machine builders, manufacturers and automation integrators requiring compact inductive sensing.
The product is also relevant for businesses supplying Industrial Sensors, Industrial Sensors Supplier UAE, Proximity Sensors, Proximity Sensors Supplier UAE, Photoelectric Sensors and other industrial sensing products through a Sensor Supplier UAE.
The IE5078 can be incorporated alongside Factory Automation Components and other Industrial Automation Components UAE in manufacturing, assembly, material-handling and automated production systems.
| Specification | Details |
|---|---|
| Product Code | IE5078 |
| Manufacturer | IFM electronic |
| Model / Part Number | IEB3001-APKG |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive Proximity Sensor |
| Electrical Design | PNP |
| Output Function | Normally Closed (NC) |
| Operating Voltage | 10–36 V DC |
| Current Consumption | 15 mA at 24 V |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Maximum Voltage Drop | 2.5 V |
| Permanent Switching Current | 200 mA |
| Switching Frequency | 750 Hz |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Sensing Range | 1 mm |
| Real Sensing Range (Sr) | 1 |
