The IFM IE5075 IEB3001-BPKG/6M is a compact inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial automation, machinery and factory applications. It features a 1 mm sensing range, PNP normally-open output, 10–36 V DC operation, 750 Hz switching frequency, M8 × 1 threaded housing, flush mounting and a 6 m PVC cable. Its IP67 protection makes it suitable for dependable operation in industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IE5075 IEB3001-BPKG/6M is an inductive sensor designed for reliable detection of metallic objects without physical contact. Its compact M8 × 1 housing makes it suitable for machine structures, fixtures and automation equipment where a small sensor is required.
The sensor provides a 1 mm nominal sensing range, with a real sensing range of 1 ± 10% mm and an operating distance of 0–0.8 mm. This allows the sensor to detect suitable metallic targets in close-proximity industrial applications.
The IE5075 uses a PNP normally-open output and operates on a 10–36 V DC supply. Its 750 Hz switching frequency supports repetitive detection operations in automated machinery and production systems.
1 mm sensing range
Real sensing range: 1 ± 10% mm
Operating distance: 0–0.8 mm
PNP electrical design
Normally-open output
10–36 V DC operating voltage
750 Hz switching frequency
200 mA permanent switching current
2.5 V maximum voltage drop
M8 × 1 threaded housing
35 mm overall length
Flush mountable
Brass housing with white-bronze coating
PBT active sensing face
6 m PVC cable
3 × 0.14 mm² cable construction
Yellow switching-status LED
IP67 protection rating
-25 °C to +80 °C ambient temperature
Reverse-polarity protection
Short-circuit protection
Overload protection
EN 60947-5-2 EMC compliance
EN 55011 Class B emission
Suitable for industrial automation
Suitable for machine control
Suitable for factory automation
Suitable for proximity detection
Suitable for metallic object detection
The IE5075 provides dependable non-contact metal detection for automated machinery and industrial equipment. Its 1 mm sensing range is suitable for applications where metallic components need to be detected at a short and controlled distance.
The 750 Hz switching frequency supports repetitive sensing operations in production and machine-control applications. The PNP normally-open output can provide a switching signal to compatible PLCs, controllers and industrial automation systems.

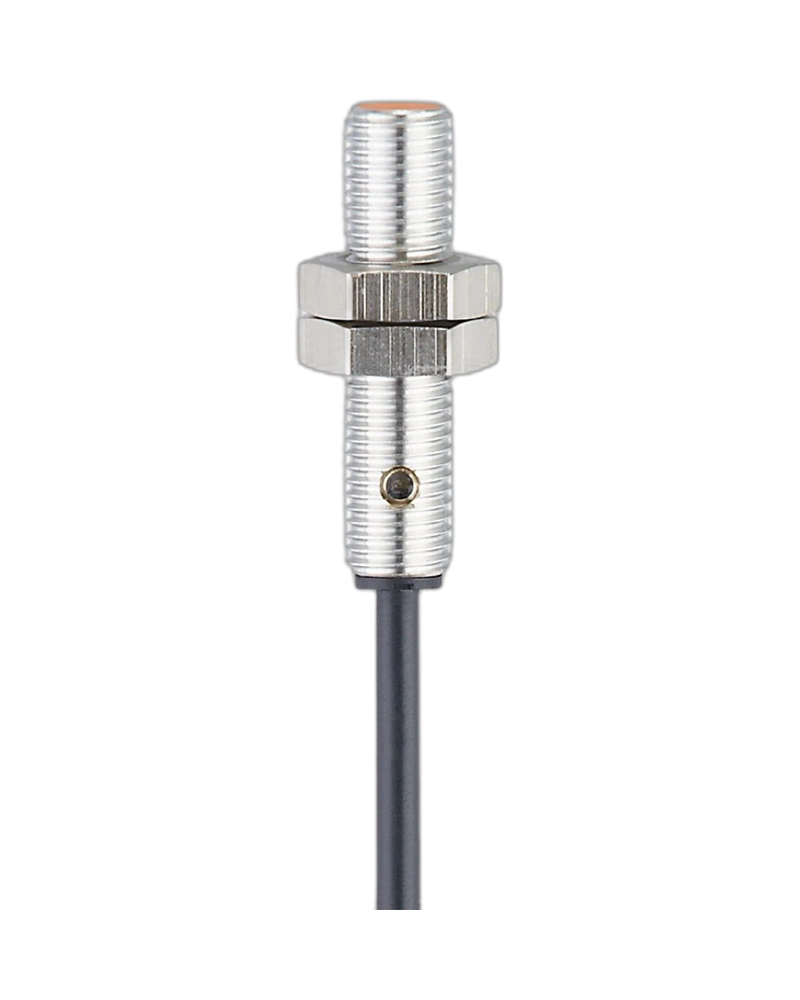

The sensor has a compact M8 × 1 threaded housing with a 35 mm overall length. Its flush-mountable design allows it to be installed neatly into compatible metallic machine structures and fixtures.
The IE5075 is supplied with a 6 m PVC cable with 3 × 0.14 mm² conductors, providing a long pre-wired connection for installations where the sensor needs to be positioned some distance from the control equipment.
A yellow LED switching-status indicator provides visual feedback of the sensor's switching condition, helping technicians during installation, commissioning and maintenance.
The sensor has an IP67 protection rating and an operating temperature range of -25 °C to +80 °C, making it suitable for a broad range of industrial machinery and factory environments.
For Industrial Automation UAE, the IE5075 can be integrated with PLCs, control panels, industrial controllers and other automation equipment for proximity detection and machine monitoring.
For Industrial automation companies in UAE, Industrial automation companies UAE and businesses developing Industrial automation systems in UAE, the sensor provides a compact solution for metallic object detection, position feedback and machine-control applications.
The IE5075 can form part of an Industrial Equipment & Supplies portfolio for companies supplying Industrial Equipment & Supplies in UAE, Industrial Equipment & Supplies suppliers, Industrial Equipment in UAE and Industrial Electrical Equipment.
For an Industrial Automation Supplier in UAE, Industrial Automation Suppliers UAE, Automation Products Supplier UAE and Industrial Automation Equipment UAE, the IE5075 is suitable for machine builders, manufacturers and automation integrators requiring a compact inductive sensor.
The product is also relevant for businesses supplying Industrial Sensors, Industrial Sensors Supplier UAE, Proximity Sensors, Proximity Sensors Supplier UAE, Photoelectric Sensors and other industrial sensing products through a Sensor Supplier UAE.
The IE5075 can be incorporated alongside Factory Automation Components and other Industrial Automation Components UAE in manufacturing, assembly, material handling and automated production systems.
| Specification | Details |
|---|---|
| Product Code | IE5075 |
| Manufacturer | IFM electronic |
| Model / Part Number | IEB3001-BPKG/6M |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive Proximity Sensor |
| Electrical Design | PNP |
| Output Function | Normally Open (NO) |
| Operating Voltage | 10–36 V DC |
| Current Consumption | 15 mA at 24 V |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Maximum Voltage Drop | 2.5 V |
| Permanent Switching Current | 200 mA |
| Switching Frequency | 750 Hz |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Sensing Range | 1 mm |
| Real Sensing Range (Sr) | 1 ± 10% mm |
| Operating Distance | 0–0.8 mm |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.4 |
| Correction Factor – Aluminium | 0.3 |
| Correction Factor – Copper | 0.2 |
| Hysteresis | 1–15% of Sr |
| Switch-Point Drift | -10 to +10% of Sr |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 35 mm |
| Mounting | Flush mountable |
| Housing Material | Brass, white-bronze coated |
| Active Face Material | PBT |
| Connection | 6 m PVC cable |
| Cable Construction | 3 × 0.14 mm² |
| Switching Status Indication | 1 × yellow LED |
| Protection Rating | IP67 |
| Ambient Temperature | -25 °C to +80 °C |
| EMC Standard | EN 60947-5-2 |
| EMC Emission | EN 55011 Class B |
| MTTF | Approx. 2804 years |
| Weight | Approx. 114.7 g |
| Tightening Torque | A = 5 mm: 1 Nm; B: 2 Nm |
| Accessories Included | 2 mounting nuts |
| Pack Quantity | 1 piece |
| Typical Applications | Industrial automation, factory automation, machine control, meta |
