Introduction

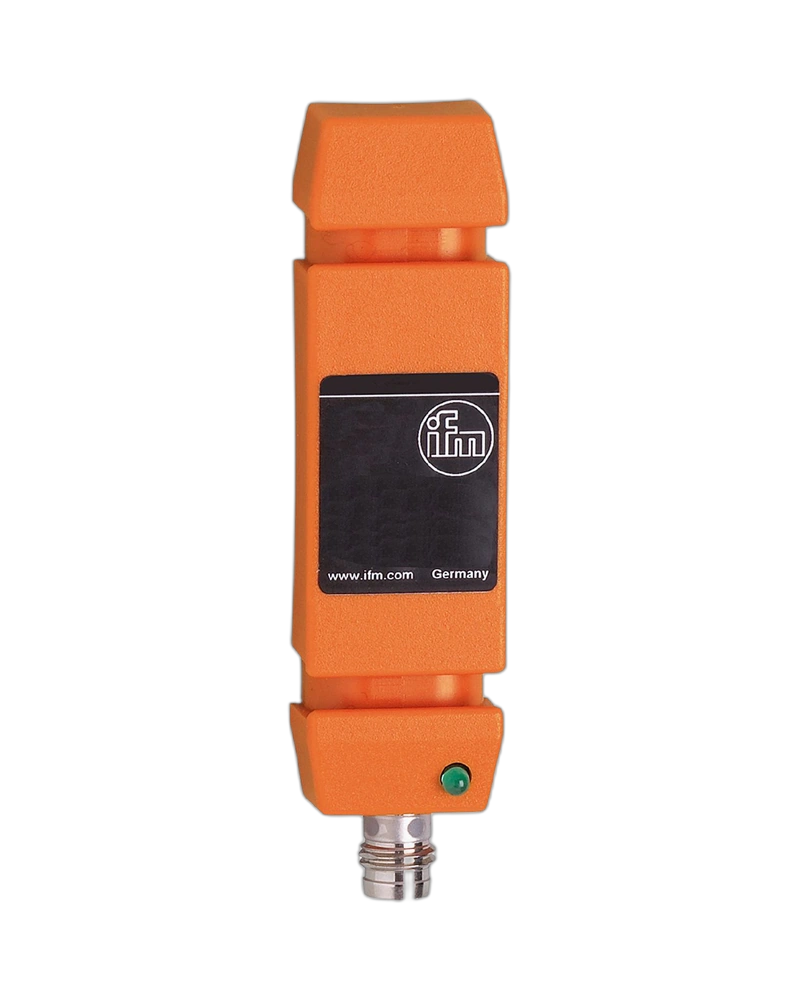

The IFM I85008 I8-3020-BPKG/DY/AS-610-DPS is a dynamic inductive tube sensor designed for fast and reliable non-contact detection of metallic objects in industrial automation, feeding equipment, material-handling systems and production machinery.

The sensor uses a dynamic inductive sensing principle, allowing moving metallic components to be detected rapidly as they pass through the defined sensing area. This makes the I85008 particularly suitable for applications requiring high-speed part detection, automated counting and material-flow monitoring.

The I85008 provides a sensing range of less than 20 mm and a 2.5 mm steel-ball resolution. Its compact design allows integration into automated machinery where reliable detection and limited installation space are important.

The sensor uses a DC PNP normally-open output and operates from a 10–35 V DC supply. The switching output supports a permanent current of 200 mA, with reverse-polarity, short-circuit and overload protection for dependable industrial operation.

Key Features

Dynamic inductive tube sensor
Fast non-contact metallic object detection
Sensing range below 20 mm
2.5 mm steel-ball resolution
DC PNP electrical design
Normally-open output
10–35 V DC operating voltage
200 mA permanent switching current
2 V maximum voltage drop
Maximum part speed of 35 m/s
Response time below 0.2 ms
100 ms pulse stretching
M8 A-coded connector
Yellow switching-status LED
Green operating-status LED
IP67 protection rating
-25 °C to +70 °C ambient temperature
Protection class III
Reverse-polarity protection
Short-circuit protection
Overload protection
Compact polycarbonate housing
Suitable for high-speed part detection
Suitable for automated counting
Suitable for feeding systems
Suitable for material-flow monitoring
Suitable for congestion monitoring
Suitable for industrial automation

Application Performance

The I85008 is designed for fast detection of small metallic components moving through an automated sensing area. Its dynamic operating principle enables rapid detection of suitable metallic targets without mechanical contact.

The sensor provides a sensing range below 20 mm with a 2.5 mm steel-ball resolution, making it suitable for detecting relatively small metallic parts when the target and installation conditions meet the specified requirements.

The PNP normally-open output provides a switching signal to compatible PLCs, industrial controllers and automation systems when a metallic target is detected. The output supports a permanent switching current of 200 mA with a maximum voltage drop of 2 V.

The response time of less than 0.2 ms supports high-speed detection applications. The 100 ms pulse-stretching function can extend short detection signals, helping connected control systems reliably register brief detection events.

Dynamic Tube Sensor Design

The I85008 is designed for applications where metallic parts move rapidly through a controlled sensing area.

The dynamic sensing principle makes the sensor suitable for detecting moving components in feeding systems, production machinery and material-handling equipment. It can provide a fast switching response when suitable metallic targets pass through the sensing zone.

The compact construction supports integration into automated equipment where space-efficient sensor installation is required.

Small-Part Detection

The I85008 is suitable for applications requiring dependable detection of small and fast-moving metallic components.

Small metallic-part detection
High-speed component detection
Part presence detection
Automated counting
Feeder monitoring
Material-flow monitoring
Congestion monitoring
Production-line monitoring
Assembly machinery
Machine-control applications

The sensor can provide a reliable switching signal as metallic components move through the sensing area, allowing the connected automation controller to monitor part presence and movement.

Parts Feeding & Congestion Monitoring

The I85008 can be used in automated feeding systems where metallic components travel continuously through a controlled path.

The sensor can monitor component presence and provide a switching signal to a PLC or machine controller. This can support automated counting, feeder monitoring, material-flow control and congestion detection.

Its fast response makes it particularly suitable for processes where components move quickly and detection signals are brief.

Industrial Automation Applications

The I85008 is suitable for Industrial Automation UAE applications requiring fast and dependable metallic-object detection.

High-speed machine automation
Small-part detection
Automated counting
Material-flow monitoring
Feeder systems
Congestion monitoring
Production machinery
Assembly automation
Material-handling equipment
Factory automation

For Industrial automation companies in UAE, Industrial automation companies UAE and businesses developing Industrial automation systems in UAE, the I85008 provides a dynamic inductive sensing solution for automated metallic-part detection.

Industrial Sensors & Proximity Detection

The I85008 is an Industrial Sensor designed for specialised detection of moving metallic objects. It can form part of an Industrial Sensors Supplier UAE product range alongside Proximity Sensors, Photoelectric Sensors and other industrial sensing technologies.

For a Proximity Sensors Supplier UAE or Sensor Supplier UAE, this inductive tube sensor provides a specialised solution for applications requiring rapid detection of metallic components.

Industrial Automation Integration

The I85008 can be integrated with compatible PLCs, industrial controllers and machine-control systems through its M8 connection.

For an Industrial Automation Supplier in UAE, Industrial Automation Suppliers UAE, Automation Products Supplier UAE or Industrial Automation Equipment UAE, the sensor provides a specialised component for high-speed part detection, machine monitoring, feeding and automated material handling.

It can also form part of Industrial Automation Components UAE and Factory Automation Components used in manufacturing, assembly and production systems.

Industrial Equipment Applications

The I85008 can form part of Industrial Equipment & Supplies, Industrial Equipment & Supplies in UAE, Industrial Equipment & Supplies suppliers, Industrial Equipment in UAE and Industrial Electrical Equipment portfolios.

Its dynamic sensing principle, fast response and compact construction make it suitable for industrial machinery where rapid and reliable metallic-object detection is required.

Protection & Reliability

The I85008 provides an IP67 protection rating and is designed for an ambient temperature range of -25 °C to +70 °C.

The sensor incorporates reverse-polarity, short-circuit and overload protection, supporting dependable electrical operation when correctly installed within the specified operating limits.

UAE Industrial Automation Solutions

For companies providing Industrial automation solutions in UAE, the I85008 provides a practical dynamic inductive tube-sensing solution for high-speed metallic-part detection, automated feeding, counting, congestion monitoring, material-flow control and production monitoring.

Its less-than-20 mm sensing range, 2.5 mm steel-ball resolution, PNP normally-open output, 10–35 V DC operation, response time below 0.2 ms, 100 ms pulse stretching, M8 connection and IP67 protection make it suitable for specialised high-speed industrial detection applications.
