Introduction

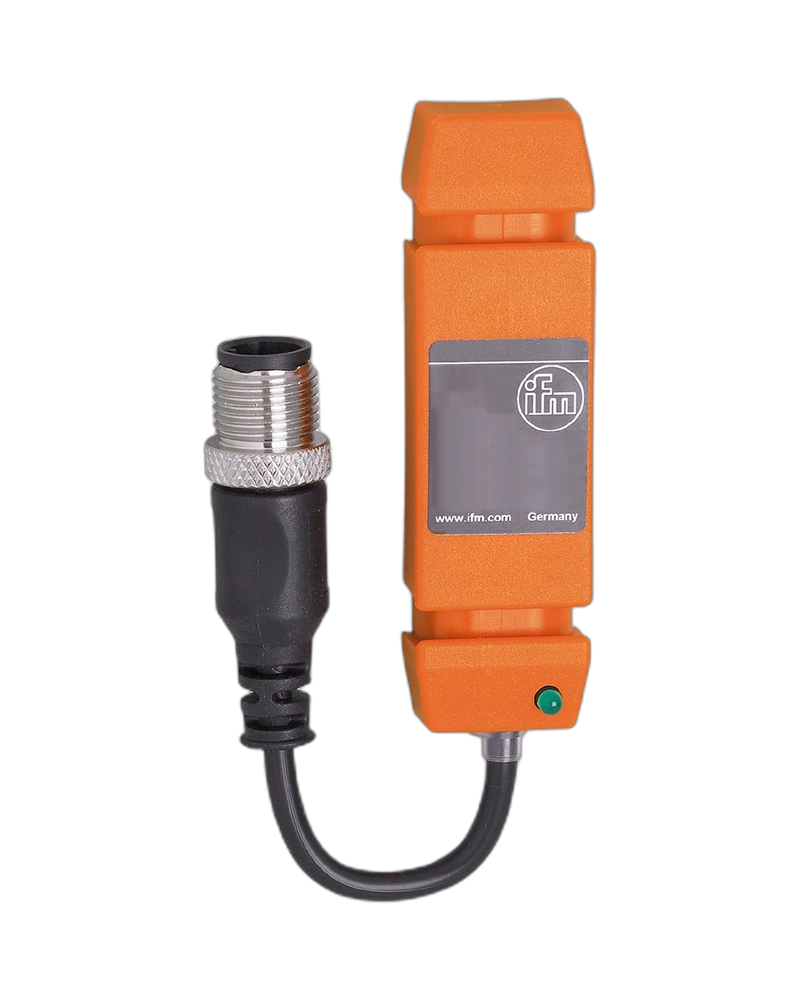

The IFM I85002 I8-3014-BPKG/0,09M/US-100-DPS is a compact inductive tube sensor designed for reliable non-contact detection of metallic objects in industrial automation, machinery, feeding equipment and material-handling applications.

The sensor uses a static inductive sensing principle, allowing metallic objects to be detected without physical contact. Its specialised tube-sensor construction is suitable for applications where small metallic parts need to be detected consistently as they move through a defined sensing area.

The I85002 provides a sensing range of less than 14 mm and a 3 mm steel-ball resolution, making it suitable for detecting small metallic components under appropriate installation and target conditions.

The sensor uses a DC PNP normally-open output and operates from a 10–35 V DC supply. The output supports a permanent switching current of 200 mA, while integrated protection functions help support reliable operation in industrial environments.

Key Features

Static inductive tube sensor
Reliable non-contact metallic object detection
Sensing range below 14 mm
3 mm steel-ball resolution
DC PNP electrical design
Normally-open output
10–35 V DC operating voltage
200 mA permanent switching current
2 V maximum voltage drop
Maximum part speed of 35 m/s
Fast response time below 0.5 ms
100 ms pulse stretching
0.09 m connection cable
US-100 connection design
M8 connector connection
Yellow switching-status LED
Green operating-status LED
IP67 protection rating
-25 °C to +70 °C ambient temperature
Protection class III
Reverse-polarity protection
Short-circuit protection
Overload protection
Compact polycarbonate housing
70 × 20 × 12 mm housing dimensions
Suitable for small-part detection
Suitable for feeding systems
Suitable for congestion monitoring
Suitable for material-flow monitoring
Suitable for industrial automation

Application Performance

The I85002 is designed for reliable detection of small metallic components in automated industrial processes. Its inductive sensing technology detects suitable metallic targets without mechanical contact, supporting repeatable detection during continuous machine operation.

With a sensing range below 14 mm and 3 mm steel-ball resolution, the sensor can detect relatively small metallic objects when the target and installation conditions are suitable. Its fast response characteristics make it useful for automated processes where parts move through a defined sensing area.

The PNP normally-open output provides a switching signal to compatible PLCs, controllers and industrial automation systems when a metallic target enters the sensing zone. The output supports a permanent switching current of 200 mA.

The sensor also provides 100 ms pulse stretching, which can extend short detection signals and help a connected control system reliably register brief detection events.

Compact Tube Sensor Design

The I85002 features a compact rectangular housing measuring approximately 70 × 20 × 12 mm. Its space-efficient construction allows integration into machinery, feeding equipment and automated handling systems where installation space is limited.

The sensor uses a short 0.09 m connection arrangement, making it suitable for installations where a compact sensor connection is preferred.

The housing is designed for industrial use and includes visual status indication through yellow switching-status and green operating-status LEDs. These indicators assist with installation, commissioning and maintenance.

Small-Part Detection

The I85002 is suitable for applications requiring dependable detection of small metallic components.

Small metallic-part detection
Part presence detection
Component detection
Automated counting
Feeder monitoring
Material-flow monitoring
Congestion monitoring
Production-line monitoring
Assembly machinery
Machine-control applications

The sensor can provide a reliable detection signal when metallic components enter its sensing area, allowing the connected automation controller to monitor part presence and material flow.

Parts Feeding & Congestion Monitoring

The I85002 can be used in automated feeding systems where metallic components travel through a controlled path.

The sensor can monitor the presence of components and provide a switching signal to a PLC or machine controller. This can support applications such as feeder monitoring, part counting and congestion detection.

Its compact design makes it suitable for integration into automated material-flow equipment where reliable detection is required without mechanical contact.

Industrial Automation Applications

The I85002 is suitable for Industrial Automation UAE applications requiring compact and dependable metallic-object detection.

Machine automation
Small-part detection
Automated counting
Material-flow monitoring
Feeder systems
Congestion monitoring
Production machinery
Assembly automation
Material-handling equipment
Factory automation

For Industrial automation companies in UAE, Industrial automation companies UAE and businesses developing Industrial automation systems in UAE, the I85002 provides a compact inductive sensing solution for automated metallic-part detection.

Industrial Sensors & Proximity Detection

The I85002 is an Industrial Sensor designed for specialised detection of metallic objects. It can form part of an Industrial Sensors Supplier UAE product range alongside Proximity Sensors, Photoelectric Sensors and other industrial sensing technologies.

For a Proximity Sensors Supplier UAE or Sensor Supplier UAE, this inductive tube sensor provides a specialised solution for applications requiring compact detection of small metallic components.

Industrial Automation Integration

The I85002 can be integrated with compatible PLCs, industrial controllers and machine-control systems through its sensor connection.

For an Industrial Automation Supplier in UAE, Industrial Automation Suppliers UAE, Automation Products Supplier UAE or Industrial Automation Equipment UAE, the sensor provides a compact component for metallic-part detection, machine monitoring, feeding and automated material handling.

It can also form part of Industrial Automation Components UAE and Factory Automation Components used in manufacturing, assembly and production systems.

Industrial Equipment Applications

The I85002 can form part of Industrial Equipment & Supplies, Industrial Equipment & Supplies in UAE, Industrial Equipment & Supplies suppliers, Industrial Equipment in UAE and Industrial Electrical Equipment portfolios.

Its compact housing, fast response, 3 mm steel-ball resolution and IP67 protection make it suitable for industrial machinery where dependable detection of small metallic objects is required.

Protection & Reliability

The I85002 provides an IP67 protection rating and is designed for an ambient temperature range of -25 °C to +70 °C.

The sensor also incorporates reverse-polarity, short-circuit and overload protection, supporting dependable electrical operation when installed within the specified operating conditions.

UAE Industrial Automation Solutions

For companies providing Industrial automation solutions in UAE, the I85002 provides a practical inductive tube-sensing solution for metallic-part detection, automated feeding, congestion monitoring, material-flow control and production monitoring.

Its less-than-14 mm sensing range, 3 mm steel-ball resolution, PNP normally-open output, 10–35 V DC operation, fast response, 100 ms pulse stretching, 0.09 m connection arrangement and IP67 protection make it suitable for specialised industrial detection applications.
