Introduction

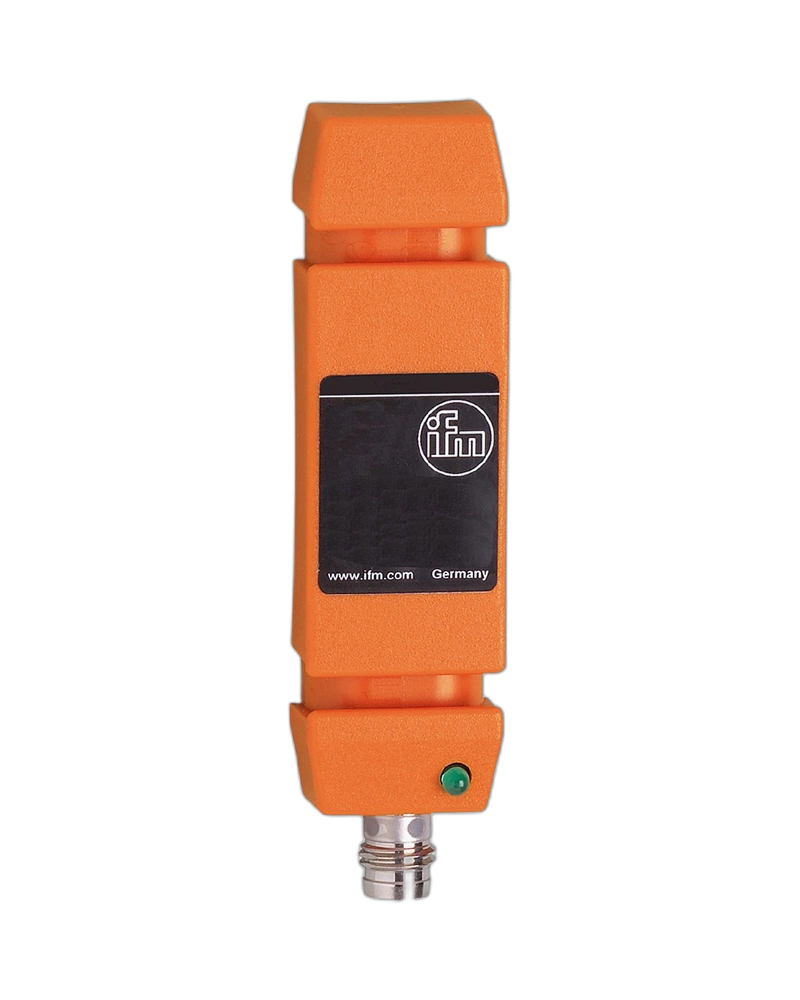

The IFM I85001 I8-3014-ANKG/AS-610-DNS is a compact inductive tube sensor designed for reliable non-contact detection of metallic objects in industrial automation, machinery and material-handling systems.

The sensor uses a static operating principle to detect metallic targets without physical contact. Its specialised tube-sensor design is suitable for applications where small metallic components need to be detected reliably as they pass through a defined sensing area.

The I85001 has a rectangular plastic housing measuring 70 × 20 × 12 mm and provides a sensing range of less than 14 mm. Its compact construction makes it suitable for integration into machinery, feeding equipment and automated production systems.

The sensor uses a DC NPN normally-open output and operates from a 10–35 V DC supply. It supports a permanent switching current of 200 mA, with reverse-polarity, short-circuit and overload protection for dependable industrial operation.

Key Features

Static inductive tube sensor
Reliable non-contact metallic object detection
Sensing range below 14 mm
3 mm steel-ball resolution
NPN electrical design
Normally-open output
10–35 V DC operating voltage
Less than 15 mA current consumption
200 mA permanent switching current
2 V maximum voltage drop
Maximum part speed of 35 m/s
Response time below 0.5 ms
100 ms pulse stretching
100 ms maximum fall time
M8 A-coded connector
Yellow switching-status LED
Green operating-status LED
IP67 protection rating
-25 °C to +70 °C ambient temperature
Protection class III
Reverse-polarity protection
Short-circuit protection
Overload protection
Polycarbonate housing
70 × 20 × 12 mm compact construction
Two fixing straps supplied
Suitable for small metallic-part detection
Suitable for automated material handling
Suitable for industrial automation

Application Performance

The I85001 is designed for reliable detection of small metallic objects in automated industrial processes. Its inductive sensing principle allows metallic parts to be detected without mechanical contact, supporting repeatable operation in machinery and production equipment.

The sensor provides a sensing range of less than 14 mm and a 3 mm steel-ball resolution. This makes it suitable for detecting relatively small metallic components when the target and installation conditions meet the specified requirements. The maximum specified part speed is 35 m/s, supporting fast-moving components in automated applications.

The NPN normally-open output provides a switching signal to compatible PLCs, controllers and automation systems when a metallic target is detected. The output has a 200 mA permanent current rating and a maximum switching voltage drop of 2 V.

The sensor also provides 100 ms pulse stretching, which can extend short detection signals and help connected control systems reliably register brief detection events. Its response time is specified at less than 0.5 ms.

Compact Tube Sensor Design

The I85001 uses a compact 70 × 20 × 12 mm rectangular housing manufactured from polycarbonate.

Its compact form factor allows the sensor to be installed in restricted machine spaces where a conventional cylindrical proximity sensor may not be suitable. The supplied fixing straps can assist with securing the sensor in compatible installations.

The sensor uses an M8 A-coded connector for electrical connection. Separate yellow and green LEDs provide switching-status and operating-status indication, helping technicians monitor the sensor during installation, commissioning and maintenance.

Small-Part Detection

The I85001 is particularly suited to applications requiring reliable detection of relatively small metallic components.

Small metallic-part detection
Part presence detection
Component detection
Automated counting
Material-flow monitoring
Feeder monitoring
Conveyor monitoring
Production-line monitoring
Assembly machinery
Machine-control applications

Its short response time and 3 mm steel-ball resolution make it suitable for automated processes where metallic components must be detected consistently as they move through a defined sensing area.

Industrial Automation Applications

The I85001 is suitable for Industrial Automation UAE applications requiring dependable non-contact metallic object detection.

Machine automation
Small-part detection
Automated counting
Material-flow monitoring
Feeder systems
Conveyor systems
Production machinery
Assembly automation
Material-handling equipment
Factory automation

For Industrial automation companies in UAE, Industrial automation companies UAE and businesses developing Industrial automation systems in UAE, the I85001 provides a compact sensing solution for automated metallic-part detection.

Industrial Sensors & Proximity Detection

The I85001 is an Industrial Sensor designed for specialised detection of metallic objects. It can form part of an Industrial Sensors Supplier UAE product range alongside Proximity Sensors, Photoelectric Sensors and other industrial sensing technologies.

For a Proximity Sensors Supplier UAE or Sensor Supplier UAE, this tube sensor provides a specialised alternative for applications requiring a compact rectangular inductive sensing arrangement.

Industrial Automation Integration

The I85001 can be integrated with compatible PLCs, industrial controllers and machine-control systems through its M8 connector.

For an Industrial Automation Supplier in UAE, Industrial Automation Suppliers UAE, Automation Products Supplier UAE or Industrial Automation Equipment UAE, the sensor provides a compact component for metallic-part detection, machine monitoring and automated material handling.

It can also form part of Industrial Automation Components UAE and Factory Automation Components used in manufacturing, assembly and production systems.

Industrial Equipment Applications

The I85001 can form part of Industrial Equipment & Supplies, Industrial Equipment & Supplies in UAE, Industrial Equipment & Supplies suppliers, Industrial Equipment in UAE and Industrial Electrical Equipment portfolios.

Its compact dimensions, fast response and IP67 protection make it suitable for industrial machinery where dependable metallic object detection is required in a limited installation space.

Protection & Reliability

The I85001 provides an IP67 protection rating and is designed for an ambient temperature range of -25 °C to +70 °C. This supports use in industrial environments where protection against dust and water ingress is required within the specified operating conditions.

The sensor incorporates reverse-polarity, short-circuit and overload protection, helping provide dependable electrical operation when correctly installed within the specified limits.

UAE Industrial Automation Solutions

For companies providing Industrial automation solutions in UAE, the I85001 provides a practical inductive tube-sensing solution for metallic-part detection, machine monitoring and automated material handling.

Its less-than-14 mm sensing range, 3 mm steel-ball resolution, NPN normally-open output, 10–35 V DC operation, response time below 0.5 ms, 100 ms pulse stretching, M8 connector and IP67 protection make it suitable for specialised industrial detection applications.
