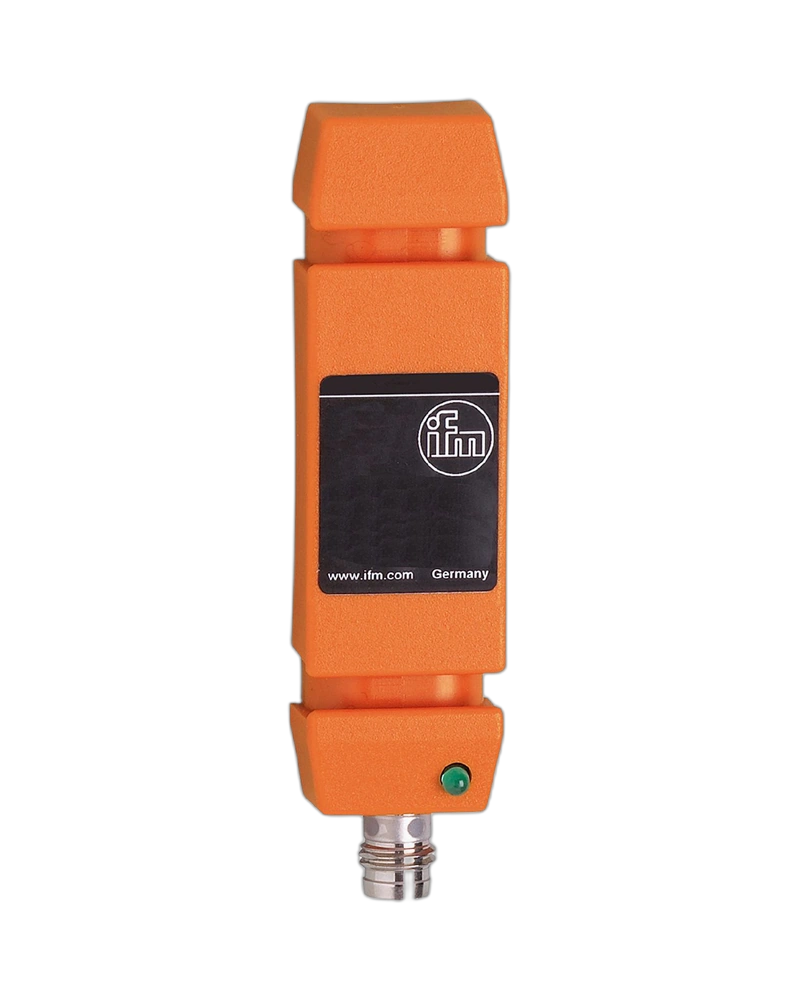

The IFM I85000 I8-3014-BPKG/AS-610-DPS is a static inductive tube sensor designed for reliable non-contact detection of very small metallic objects in factory automation and industrial machinery. With a sensing range of less than 14 mm, 3 mm steel-ball resolution, PNP normally-open output, 10–35 V DC operation, response time below 0.5 ms, M8 connector and IP67 protection, it provides fast and dependable part detection for feeding systems, material handling and automated production applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM I85000 I8-3014-BPKG/AS-610-DPS is a compact inductive tube sensor designed for reliable non-contact detection of metallic objects in industrial automation, factory machinery, feeding equipment and material-handling applications.
The sensor operates using a static inductive sensing principle, allowing metallic objects to be detected without physical contact. Its specialised tube-sensor construction is particularly suitable for applications where very small metallic parts need to be detected reliably as they pass through a defined sensing area.
The I85000 has a compact rectangular polycarbonate housing measuring 70 × 20 × 12 mm and a sensing range of less than 14 mm. This compact design allows the sensor to be integrated into machinery and automated equipment where installation space is limited.
The sensor uses a DC PNP normally-open output and operates from a 10–35 V DC supply. The switching output supports a permanent current rating of 200 mA, with short-circuit, overload and reverse-polarity protection.
Static inductive tube sensor
Reliable detection of very small metallic objects
Sensing range below 14 mm
3 mm minimum steel-ball resolution
DC PNP electrical design
Normally-open output
10–35 V DC operating voltage
Less than 15 mA current consumption
200 mA permanent switching current
2 V maximum voltage drop
Maximum part speed of 35 m/s
Response time below 0.5 ms
100 ms pulse stretching
100 ms fall time
M8 A-coded connector
Yellow switching-status LED
Green operating-status LED
IP67 protection rating
-25 °C to +70 °C ambient temperature
Protection class III
Reverse-polarity protection
Short-circuit protection
Overload protection
Polycarbonate housing
70 × 20 × 12 mm compact construction
2 fixing straps supplied
Suitable for small metallic-part detection
Suitable for parts detection
Suitable for congestion monitoring
Suitable for feeding systems
Suitable for factory automation
The I85000 is designed for reliable detection of small metallic objects in automated industrial processes. Its inductive sensing technology enables metallic components to be detected without mechanical contact, supporting repeatable operation in production machinery and automated handling systems.
The sensor provides a sensing range of less than 14 mm and a 3 mm minimum steel-ball resolution. This makes it suitable for detecting relatively small metallic components when the target material, size and installation conditions meet the specified requirements. The maximum specified part speed is 35 m/s, supporting fast-moving components in automated applications.
The PNP normally-open output provides a switching signal to compatible PLCs, industrial controllers and automation systems when a metallic target is detected. The output has a 200 mA permanent current rating and a maximum voltage drop of 2 V.
The sensor provides a 100 ms pulse-stretching function, which can extend short detection signals and help connected control systems reliably register brief detection events. The specified response time is less than 0.5 ms, making the sensor suitable for fast part-detection applications.
The I85000 uses a compact 70 × 20 × 12 mm rectangular housing manufactured from polycarbonate. Its compact form factor makes it suitable for integration into restricted machine spaces and specialised feeding equipment.
A mounting slot is provided to simplify installation, while two fixing straps are supplied with the sensor. The M8 connector provides a practical electrical connection for compatible industrial sensor cabling.
The sensor includes a yellow LED for switching status and a green LED for operating status, providing useful visual feedback during installation, commissioning and maintenance.
The I85000 is particularly suitable for applications requiring dependable detection of relatively small metallic components.
Small metallic-part detection
Part presence detection
Component detection
Automated counting
Feeder monitoring
Material-flow monitoring
Congestion monitoring
Production-line monitoring
Assembly machinery
Machine-control applications
Its 3 mm steel-ball resolution and short response time make it suitable for automated processes where metallic components must be detected consistently as they move through a defined sensing area.
The I85000 can be used for parts detection and congestion monitoring in feeding tubes and automated material-flow systems.
When a metallic component enters the sensing zone, the sensor switches its PNP normally-open output. The resulting signal can be transferred to a PLC or machine controller to monitor component presence, feeding activity or material flow.
This makes the sensor suitable for automated feeders, component handling, production machinery and other systems where reliable detection of small metallic parts is required.
The I85000 is suitable for Industrial Automation UAE applications requiring dependable non-contact metallic-object detection.
Machine automation
Small-part detection
Automated counting
Material-flow monitoring
Feeder systems
Congestion monitoring
Production machinery
Assembly automation
Material-handling equipment
Factory automation
For Industrial automation companies in UAE, Industrial automation companies UAE and businesses developing Industrial automation systems in UAE, the I85000 provides a compact sensing solution for automated metallic-part detection.
The I85000 is an Industrial Sensor designed for specialised detection of metallic objects. It can form part of an Industrial Sensors Supplier UAE product range alongside Proximity Sensors, Photoelectric Sensors and other industrial sensing technologies.
For a Proximity Sensors Supplier UAE or Sensor Supplier UAE, this inductive tube sensor provides a specialised solution for applications requiring compact detection of small metallic components.
The I85000 can be integrated with compatible PLCs, industrial controllers and machine-control systems through its M8 A-coded connector.
For an Industrial Automation Supplier in UAE, Industrial Automation Suppliers UAE, Automation Products Supplier UAE or Industrial Automation Equipment UAE, the sensor provides a compact component for metallic-part detection, machine monitoring, feeding and automated material handling.
It can also form part of Industrial Automation Components UAE and Factory Automation Components used in manufacturing, assembly and production systems.
The I85000 can form part of Industrial Equipment & Supplies, Industrial Equipment & Supplies in UAE, Industrial Equipment & Supplies suppliers, Industrial Equipment in UAE and Industrial Electrical Equipment portfolios.
Its compact dimensions, fast response, 3 mm steel-ball resolution and IP67 protection make it suitable for industrial machinery where dependable metallic-object detection is required in a limited installation space.
The I85000 provides an IP67 protection rating and is designed for an ambient temperature range of -25 °C to +70 °C. This supports use in industrial environments where protection against dust and water ingress is required within the specified operating conditions.
The sensor incorporates reverse-polarity, short-circuit and overload protection, helping provide dependable electrical operation when correctly installed within the specified limits.
The polycarbonate housing and compact construction also make the sensor suitable for integration into automated feeding and material-handling equipment where reliable operation and space-efficient installation are important.
For companies providing Industrial automation solutions in UAE, the I85000 provides a practical inductive tube-sensing solution for metallic-part detection, feeding, congestion monitoring and automated material handling.
Its less-than-14 mm sensing range, 3 mm steel-ball resolution, PNP normally-open output, 10–35 V DC operation, response time below 0.5 ms, 100 ms pulse stretching, M8 connection and IP67 protection make it suitable for specialised industrial detection applications.
| Specification | Details |
|---|---|
| Product Code | I85000 |
| Manufacturer | IFM electronic |
| Model / Part Number | I8-3014-BPKG/AS-610-DPS |
| Product Type | Inductive Tube Sensor |
| Sensor Type | Inductive / Tube Sensor |
| Operating Principle | Static |
| Electrical Design | DC PNP |
| Output Function | Normally Open (NO) |
| Operating Voltage | 10–35 V DC |
| Current Consumption | <15 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Maximum Voltage Drop | 2 V |
| Permanent Switching Current | 200 mA |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Sensing Range | <14 mm |
| Minimum Steel Ball Resolution | 3 mm diameter |
| Maximum Part Speed | 35 m/s |
| Pulse Stretching | 100 ms |
| Fall Time | 100 ms |
| Response Time | <0.5 ms |
| Housing Type | Rectangular |
| Housing Dimensions | 70 × 20 × 12 mm |
| Housing Material | Polycarbonate (PC) |
| Electrical Connection | 1 × M8 connector |
| Connector Coding | A-coded |
| Switching Status Indication | 1 × yellow LED |
| Operating Status Indication | 1 × green LED |
| Protection Rating | IP67 |
| Ambient Temperature | -25 °C to +70 °C |
| MTTF | Approx. 1332 years |
| Weight | Approx. 50 g |
| Supplied Accessories | 2 fixing straps |
| Pack Quantity | 1 piece |
| Typical Applications | Small metallic-part detection, parts detection, congestion monitoring, feeding systems, material handling, automated counting, production monitoring and factory automation |
