The IFM I7R216 I7R3025-FNKG/DY/US-100-INF is a high-resolution dynamic inductive ring sensor designed for fast and reliable non-contact detection of small metallic parts passing through a 25.1 mm sensing opening. With 1.2 mm steel-ball resolution, NPN normally-open/normally-closed selectable output, 10–35 V DC operation, response time below 0.2 ms, adjustable pulse stretching and IP67 protection, it is suitable for high-speed part detection, automated counting, feeding systems and industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM I7R216 I7R3025-FNKG/DY/US-100-INF is a high-resolution dynamic inductive ring sensor designed for reliable non-contact detection of metallic components passing rapidly through a defined sensing opening.
The sensor uses a dynamic operating principle, making it suitable for applications where small metallic parts need to be detected at high speed. Its ring-shaped construction creates a defined sensing zone around the passing component, providing a repeatable detection point for automated counting, feeding, material-flow monitoring and production machinery.
The I7R216 features a compact 60 × 35 × 20 mm circular housing with an internal sensing diameter of 25.1 mm. This provides a practical passage for compatible metallic components while maintaining a controlled sensing area.
The sensor uses a DC NPN electrical design with a selectable normally-open or normally-closed output. It operates from a 10–35 V DC supply, has a permanent switching current of 200 mA, and provides short-circuit, overload and reverse-polarity protection.
High-resolution dynamic inductive ring sensor
25.1 mm internal sensing opening
1.2 mm steel-ball resolution
NPN electrical design
Normally-open / normally-closed output selectable
10–35 V DC operating voltage
200 mA permanent switching current
2 V maximum voltage drop
Maximum part speed of 35 m/s
Response time below 0.2 ms
Maximum fall time of 0.2 ms
Adjustable pulse stretching
0.1–150 ms pulse stretching range
M12 A-coded connector
Yellow switching-status LED
IP67 protection rating
-25 °C to +70 °C ambient temperature
Protection class III
Reverse-polarity protection
Short-circuit protection
Overload protection
Polyamide housing
POM sensing ring
60 × 35 × 20 mm compact construction
Suitable for high-speed metallic-part detection
Suitable for automated counting
Suitable for feeding systems
Suitable for material-flow monitoring
Suitable for industrial automation
The I7R216 is designed for high-speed non-contact detection of metallic components passing through the ring opening. Its dynamic operating principle and short response time make it suitable for applications where small parts move quickly through the sensing zone.
The sensor provides a 1.2 mm minimum steel-ball resolution, allowing detection of small metallic targets when the application conditions meet the specified requirements. The maximum specified part speed is 35 m/s, supporting high-speed automated feeding and production processes.
The 25.1 mm internal sensing diameter provides a defined passage for compatible metallic components. This makes the sensor suitable for automated feeders, feed tubes, material-handling equipment, production machinery and guided component-transfer systems.
The NPN output can be selected between normally open and normally closed, providing flexibility when connecting the sensor to compatible PLC inputs, industrial controllers and automation circuits. The permanent switching current is rated at 200 mA.
The adjustable 0.1–150 ms pulse-stretching function can extend short detection signals, helping connected control systems reliably register brief detection events when metallic parts move rapidly through the sensing opening. The response time is specified at less than 0.2 ms, with a maximum fall time of 0.2 ms.
The I7R216 is designed for applications where rapid and repeatable detection of metallic components is required.
Small-part detection
High-speed component detection
Automated counting
Metal-part presence detection
Feeder monitoring
Material-flow monitoring
Production-line monitoring
Assembly automation
Component sorting
Machine control
The combination of 1.2 mm resolution, dynamic sensing, response time below 0.2 ms and adjustable pulse stretching makes the I7R216 suitable for automated processes where short detection events need to be captured reliably.

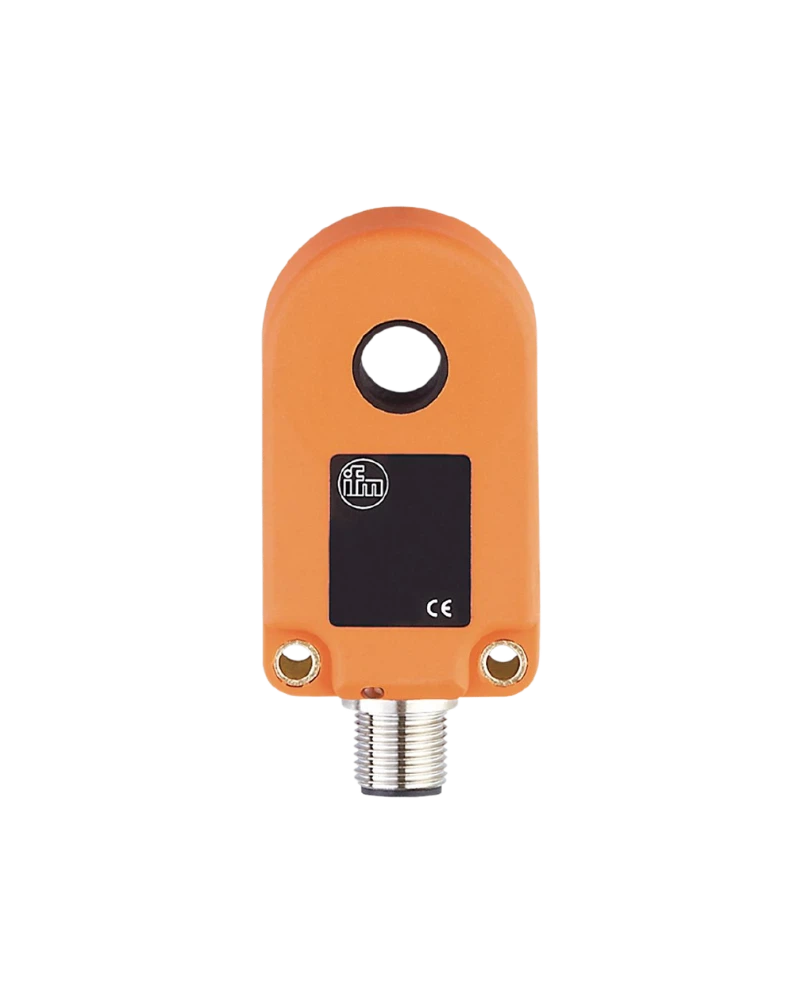

The I7R216 uses a compact ring-style construction measuring 60 × 35 × 20 mm with a 25.1 mm internal sensing diameter.
Metallic components pass through the central opening while the sensor detects their presence. This provides a repeatable sensing point for automated feeding, counting and material-flow applications.
The housing is manufactured from polyamide (PA) and the sensing ring is made from POM. Electrical connection is provided through an M12 A-coded connector, allowing integration with compatible industrial sensor cabling.
The I7R216 is suitable for applications requiring reliable detection and counting of metallic components moving through a defined path.
Small metal-part detection
Automated component counting
Part presence monitoring
Metal component detection
Feeder monitoring
Material-flow monitoring
Production-line monitoring
Assembly automation
Component sorting
Machine-control applications
Its ring-shaped sensing arrangement allows metallic parts to pass through the central opening while the sensor provides a switching signal to the connected automation system.
The I7R216 is suitable for Industrial Automation UAE applications requiring fast and reliable detection of metallic components.
Small metal-part detection
Automated counting
Part presence detection
Metal component monitoring
Material-flow monitoring
Feeder monitoring
Production-line monitoring
Assembly automation
Machine-control applications
Factory automation
For Industrial automation companies in UAE, Industrial automation companies UAE and businesses developing Industrial automation systems in UAE, the I7R216 provides a specialised ring-sensing solution for automated metallic-part detection.
The I7R216 is an Industrial Sensor designed specifically for ring-type detection of metallic targets. It can form part of an Industrial Sensors Supplier UAE product range alongside Proximity Sensors, Photoelectric Sensors and other industrial sensing technologies.
For a Proximity Sensors Supplier UAE or Sensor Supplier UAE, the I7R216 provides a specialised solution where metallic components pass through a defined sensing opening rather than being detected from one side.
The I7R216 can be integrated with compatible PLCs, industrial controllers and machine-control systems through its M12 connection.
For an Industrial Automation Supplier in UAE, Industrial Automation Suppliers UAE, Automation Products Supplier UAE or Industrial Automation Equipment UAE, it provides a specialised sensing component for automated part detection, counting, feeding and material handling.
The sensor can also form part of Industrial Automation Components UAE and Factory Automation Components used in manufacturing, assembly, feeding and production equipment.
The I7R216 can form part of Industrial Equipment & Supplies, Industrial Equipment & Supplies in UAE, Industrial Equipment & Supplies suppliers, Industrial Equipment in UAE and Industrial Electrical Equipment portfolios.
Its 25.1 mm sensing opening, compact ring construction and high-resolution detection capability make it suitable for machinery where small metallic components travel through a controlled path.
The I7R216 provides an IP67 protection rating and operates within an ambient temperature range of -25 °C to +70 °C. These characteristics support use in industrial environments where protection against dust and water ingress is required within the specified operating conditions.
The sensor also incorporates reverse-polarity, short-circuit and overload protection, supporting dependable electrical operation when correctly installed within the specified limits.
For companies providing Industrial automation solutions in UAE, the I7R216 provides a practical high-resolution inductive ring-sensing solution for fast metallic-part detection, counting, feeding and material-flow monitoring.
Its 25.1 mm sensing opening, 1.2 mm steel-ball resolution, selectable NPN NO/NC output, 10–35 V DC operation, response time below 0.2 ms, adjustable 0.1–150 ms pulse stretching, M12 connection and IP67 protection make it suitable for specialised part-detection, counting, feeding and machine-monitoring applications.
| Specification | Details |
|---|---|
| Product Code | I7R216 |
| Manufacturer | IFM electronic |
| Model / Part Number | I7R3025-FNKG/DY/US-100-INF |
| Product Type | Inductive Ring Sensor |
| Sensor Type | Inductive Ring / Small-Part Sensor |
| Operating Principle | Dynamic |
| Electrical Design | DC NPN |
| Output Function | Normally Open / Normally Closed, Selectable |
| Operating Voltage | 10–35 V DC |
| Current Consumption | <20 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Maximum Voltage Drop | 2 V |
| Permanent Switching Current | 200 mA |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Steel Ball Resolution | 1.2 mm diameter |
| Maximum Part Speed | 35 m/s |
| Pulse Stretching | 0.1–150 ms |
| Pulse Stretching Adjustable | Yes |
| Response Time | <0.2 ms |
| Maximum Fall Time | 0.2 ms |
| Housing Type | Circular / Ring |
| Housing Dimensions | 60 × 35 × 20 mm |
| Internal Sensing Diameter | 25.1 mm |
| Housing Material | Polyamide (PA) |
| Ring Material | POM |
| Electrical Connection | 1 × M12 connector |
| Connector Coding | A-coded |
| Switching Status Indication | 1 × yellow LED |
| Protection Rating | IP67 |
| Ambient Temperature | -25 °C to +70 °C |
| Maximum Relative Air Humidity | 50% at 70 °C |
| MTTF | Approx. 553 years |
| Weight | Approx. 52.8 g |
| Pack Quantity | 1 piece |
| Typical Applications | Small metallic-part detection, automated counting, feeding systems, material handling, production monitoring, component detection and factory automation |
