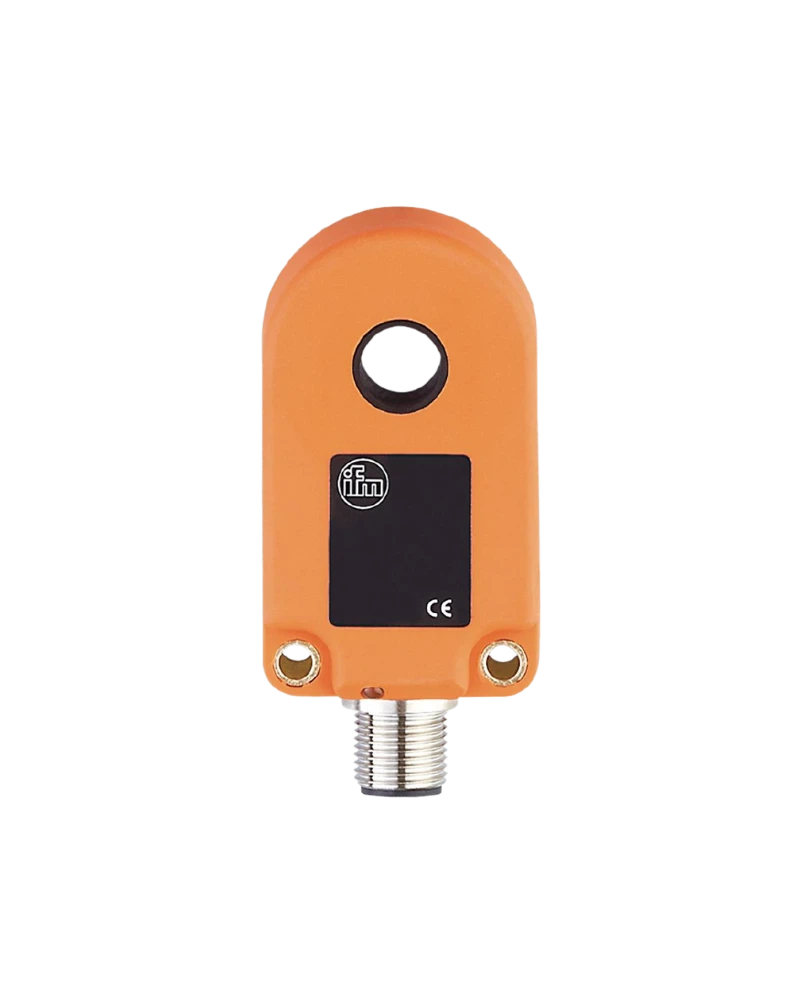

The IFM I7R213 I7R3025-FPKG/US-100-IPF is a high-resolution inductive ring sensor designed for reliable non-contact detection of metallic parts passing through a 25.1 mm sensing opening. With a 3 mm steel-ball resolution, PNP normally-open/normally-closed selectable output, 10–35 V DC operation, static operating principle, adjustable pulse stretching and IP67 protection, it is suitable for parts detection, congestion monitoring, feeding systems and industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM I7R213 I7R3025-FPKG/US-100-IPF is a high-resolution inductive ring sensor designed for reliable non-contact detection of metallic components passing through a defined sensing opening.
The sensor uses a static operating principle and is designed for applications where metallic parts need to be detected as they pass through a controlled path. IFM describes the I7R213 as a high-resolution ring sensor with short response times, resistance to dirt and a high degree of protection.
The I7R213 features a compact 60 × 35 × 20 mm circular housing with an internal sensing diameter of 25.1 mm. This provides a defined passage for compatible metallic components and makes the sensor suitable for feed tubes, automated feeders, material handling and production equipment.
The sensor uses a DC PNP electrical design with a programmable normally-open or normally-closed output. It operates from a 10–35 V DC supply and supports a permanent switching current of 200 mA.
High-resolution inductive ring sensor
Static operating principle
25.1 mm internal sensing opening
3 mm minimum steel-ball resolution
PNP electrical design
Normally-open / normally-closed output selectable
10–35 V DC operating voltage
200 mA permanent switching current
2 V maximum voltage drop
Short response time
Adjustable pulse stretching
M12 A-coded connector
Yellow switching-status LED
IP67 protection rating
-25 °C to +70 °C ambient temperature
Protection class III
Reverse-polarity protection
Short-circuit protection
Overload protection
Polyamide housing
POM sensing ring
60 × 35 × 20 mm compact construction
Suitable for parts detection
Suitable for congestion monitoring
Suitable for feeding systems
Suitable for material-flow monitoring
Suitable for industrial automation
The I7R213 is designed for reliable non-contact detection of metallic components passing through the ring opening. Its static operating principle is suitable for monitoring parts travelling through feed tubes and other controlled material paths.
The 25.1 mm internal sensing diameter provides a relatively large passage for compatible metallic components. This makes the sensor suitable for automated feeders, feed tubes, production machinery and material-handling equipment where parts need to be detected as they pass through a defined opening.
The sensor provides a 3 mm minimum steel-ball resolution, allowing detection of suitable metallic targets when the application conditions meet the specified requirements.
The PNP output can be programmed as normally open or normally closed, providing flexibility when connecting the sensor to compatible PLCs, controllers and automation circuits. The permanent switching current is rated at 200 mA.
The adjustable pulse-stretching function can extend short detection signals, helping connected control systems reliably register detection events from passing metallic parts.
The I7R213 uses a compact ring-style construction measuring 60 × 35 × 20 mm with a 25.1 mm internal sensing diameter.
Metallic components pass through the central sensing opening while the sensor monitors their presence. This creates a repeatable detection point for automated feeding, counting, material-flow monitoring and congestion-control applications.
The housing is manufactured from polyamide, while the sensing ring is made from POM. Electrical connection is provided through an M12 connector, allowing integration with compatible industrial sensor cabling.
The I7R213 is particularly suitable for applications where metallic parts travel through feed tubes or guided material-handling paths.
Parts detection
Congestion monitoring
Automated counting
Metal component detection
Feeder monitoring
Material-flow monitoring
Production-line monitoring
Assembly automation
Component presence detection
Machine control
The ring configuration allows metallic components to pass through the central opening while the sensor provides a switching signal to the connected automation system.
The I7R213 is suitable for Industrial Automation UAE applications requiring reliable detection of metallic components.
Parts detection systems
Automated counting
Material-flow monitoring
Feeder monitoring
Congestion monitoring
Metal component detection
Production-line monitoring
Assembly automation
Machine-control applications
Factory automation
For Industrial automation companies in UAE, Industrial automation companies UAE and businesses developing Industrial automation systems in UAE, the I7R213 provides a specialised ring-sensing solution for automated metallic-part detection and material-flow monitoring.
The I7R213 is an Industrial Sensor designed specifically for ring-type detection of metallic targets. It can form part of an Industrial Sensors Supplier UAE product range alongside Proximity Sensors, Photoelectric Sensors and other industrial sensing technologies.
For a Proximity Sensors Supplier UAE or Sensor Supplier UAE, the I7R213 provides a specialised solution where metallic parts pass through a defined sensing opening rather than being detected from one side.
The I7R213 can be integrated with compatible PLCs, industrial controllers and machine-control systems through its M12 connection.
For an Industrial Automation Supplier in UAE, Industrial Automation Suppliers UAE, Automation Products Supplier UAE or Industrial Automation Equipment UAE, it provides a specialised sensing component for automated parts detection, counting, feeding and congestion monitoring.
The sensor can also form part of Industrial Automation Components UAE and Factory Automation Components used in manufacturing, assembly, material handling and production equipment.
The I7R213 can form part of Industrial Equipment & Supplies, Industrial Equipment & Supplies in UAE, Industrial Equipment & Supplies suppliers, Industrial Equipment in UAE and Industrial Electrical Equipment portfolios.
Its 25.1 mm sensing opening and compact ring construction make it suitable for machinery where metallic components travel through feed tubes or other defined material paths.
The I7R213 provides an IP67 protection rating and operates within an ambient temperature range of -25 °C to +70 °C. These characteristics support use in industrial environments where protection against dust and water ingress is required within the specified operating conditions.
The sensor also incorporates reverse-polarity, short-circuit and overload protection, supporting dependable electrical operation when correctly installed within the specified limits.
For companies providing Industrial automation solutions in UAE, the I7R213 provides a practical inductive ring-sensing solution for metallic part detection, feeding and congestion monitoring.
Its 25.1 mm sensing opening, 3 mm steel-ball resolution, programmable PNP NO/NC output, 10–35 V DC operation, adjustable pulse stretching, M12 connection and IP67 protection make it suitable for specialised part-detection, counting, feeding and material-flow applications.
| Specification | Details |
|---|---|
| Product Code | I7R213 |
| Manufacturer | IFM electronic |
| Model / Part Number | I7R3025-FPKG/US-100-IPF |
| Product Type | Inductive Ring Sensor |
| Sensor Type | Inductive Ring / Small-Part Sensor |
| Operating Principle | Static |
| Electrical Design | DC PNP |
| Output Function | Normally Open / Normally Closed, Selectable |
| Operating Voltage | 10–35 V DC |
| Current Consumption | <11 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Maximum Voltage Drop | 2 V |
| Permanent Switching Current | 200 mA |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Minimum Steel Ball Resolution | 3 mm diameter |
| Internal Sensing Diameter | 25.1 mm |
| Housing Type | Circular / Ring |
| Housing Dimensions | 60 × 35 × 20 mm |
| Housing Material | Polyamide (PA) |
| Ring Material | POM |
| Electrical Connection | 1 × M12 connector |
| Connector Coding | A-coded |
| Switching Status Indication | 1 × yellow LED |
| Pulse Stretching | Adjustable |
| Protection Rating | IP67 |
| Ambient Temperature | -25 °C to +70 °C |
| MTTF | Approx. 646 years |
| Weight | Approx. 54 g |
| Pack Quantity | 1 piece |
| Typical Applications | Parts detection, congestion monitoring, feeding systems, material handling, automated counting, production monitoring and factory automation |
