Introduction

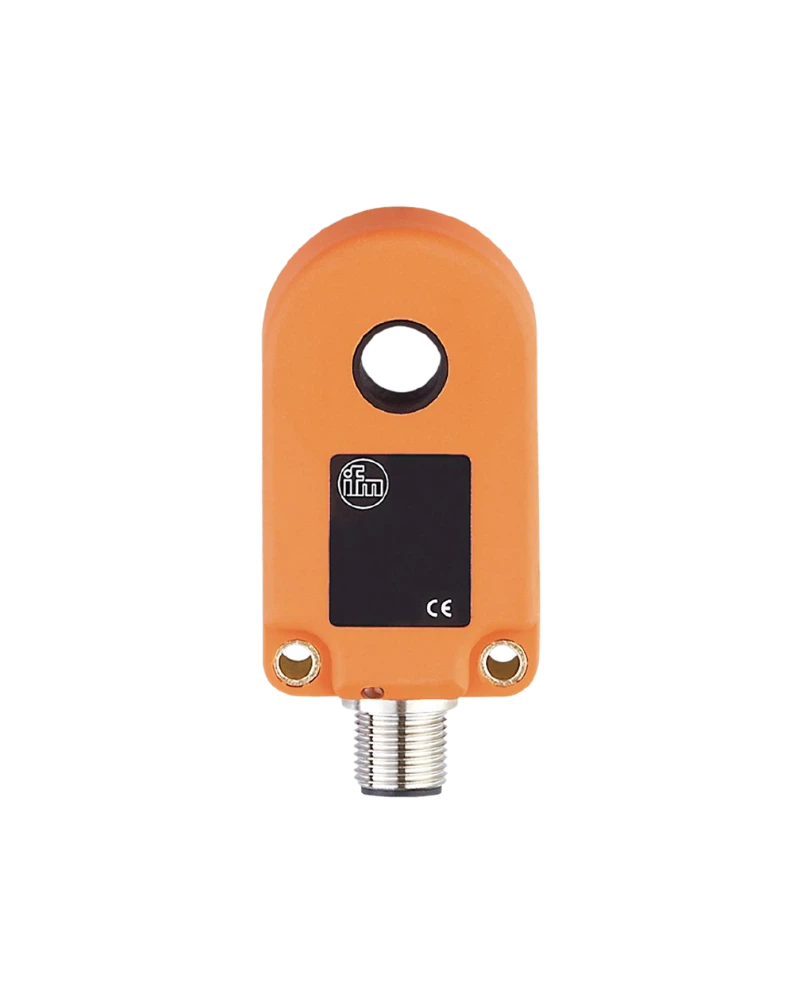

The IFM I7R212 I7R3020-FNKG/DY/US-100-INF is a dynamic inductive ring sensor designed for fast and reliable non-contact detection of metallic components passing through a defined sensing opening.

Its ring-shaped construction creates a controlled sensing zone around the passing component. The dynamic operating principle makes the I7R212 particularly suitable for applications where metallic parts move quickly through the sensing area and reliable detection is required.

The I7R212 features a compact 60 × 35 × 20 mm circular housing with an internal sensing diameter of 20.1 mm. This provides a defined passage for compatible metallic parts while maintaining a controlled detection area.

The sensor uses a DC NPN electrical design with a programmable normally-open or normally-closed output. It operates from a 10–35 V DC supply and supports a permanent switching current of 200 mA.

Key Features

Dynamic inductive ring sensor
20.1 mm internal sensing opening
1 mm steel-ball resolution
NPN electrical design
Normally-open / normally-closed output selectable
10–35 V DC operating voltage
200 mA permanent switching current
2 V maximum switching voltage drop
Maximum part speed of 35 m/s
Response time below 0.2 ms
Maximum fall time of 0.2 ms
Adjustable pulse stretching
0.1–150 ms pulse stretching range
M12 connector
Yellow switching-status LED
IP67 protection rating
-25 °C to +70 °C ambient temperature
Protection class III
Reverse-polarity protection
Short-circuit protection
Overload protection
Polyamide housing
POM sensing ring
60 × 35 × 20 mm compact construction
Suitable for high-speed metallic-part detection
Suitable for automated counting
Suitable for material-flow monitoring
Suitable for industrial automation

Application Performance

The I7R212 is designed for high-speed non-contact detection of metallic components passing through the ring opening. Its dynamic operating principle allows the sensor to respond quickly when metallic parts enter the sensing area.

The sensor provides 1 mm steel-ball resolution, making it suitable for detecting relatively small metallic targets when the installation and target conditions meet the specified requirements. The maximum specified part speed is 35 m/s, supporting fast-moving components in automated processes.

The 20.1 mm internal sensing diameter provides a defined passage for metallic components. This makes the sensor suitable for automated feeders, production machinery, material-handling equipment and guided part-transfer systems.

The NPN output is programmable between normally open and normally closed, providing flexibility when integrating the sensor with compatible PLCs, controllers and automation circuits. The switching output supports a permanent current rating of 200 mA.

The adjustable 0.1–150 ms pulse-stretching function can extend short output signals. This can help connected control systems reliably register brief detection events when metallic components move rapidly through the sensing opening.

High-Speed Ring Detection

The I7R212 provides a response time below 0.2 ms and a maximum fall time of 0.2 ms, supporting fast detection of metallic components.

Small-part detection
High-speed component detection
Automated counting
Metal-part presence detection
Feeder monitoring
Material-flow monitoring
Production-line monitoring
Assembly automation
Component sorting
Machine control

The combination of dynamic sensing, 1 mm resolution, rapid response and adjustable pulse stretching makes the I7R212 suitable for automated applications where short detection events need to be reliably captured.

Ring Sensor Design

The I7R212 uses a compact ring-style construction measuring 60 × 35 × 20 mm with a 20.1 mm internal sensing diameter.

Metallic components pass through the central opening while the sensor detects their presence. This provides a repeatable sensing point for automated feeding, counting and material-flow applications.

The housing is manufactured from polyamide (PA) and the sensing ring is made from POM. Electrical connection is provided through an M12 connector, allowing integration with compatible industrial sensor cabling.

Automated Part Detection

The I7R212 is suitable for applications requiring reliable detection and counting of metallic components moving through a defined path.

Small metal-part detection
Automated component counting
Part presence monitoring
Metal component detection
Feeder monitoring
Material-flow monitoring
Production-line monitoring
Assembly automation
Component sorting
Machine-control applications

Its ring-shaped sensing arrangement allows parts to pass through the central opening while the sensor provides a switching signal to the connected automation system.

Industrial Automation Applications

The I7R212 is suitable for Industrial Automation UAE applications requiring fast and reliable detection of metallic components.

Small metal part detection
Automated counting
Part presence detection
Metal component monitoring
Material-flow monitoring
Feeder monitoring
Production-line monitoring
Assembly automation
Machine-control applications
Factory automation

For Industrial automation companies in UAE, Industrial automation companies UAE and businesses developing Industrial automation systems in UAE, the I7R212 provides a specialised ring-sensing solution for automated metallic-part detection.

Industrial Sensors & Proximity Detection

The I7R212 is an Industrial Sensor designed specifically for ring-type detection of metallic targets. It can form part of an Industrial Sensors Supplier UAE product range alongside Proximity Sensors, Photoelectric Sensors and other industrial sensing technologies.

For a Proximity Sensors Supplier UAE or Sensor Supplier UAE, the I7R212 provides a specialised solution where metallic components pass through a defined sensing opening rather than being detected from one side.

Industrial Automation Integration

The I7R212 can be integrated with compatible PLCs, industrial controllers and machine-control systems through its M12 connection.

For an Industrial Automation Supplier in UAE, Industrial Automation Suppliers UAE, Automation Products Supplier UAE or Industrial Automation Equipment UAE, it provides a specialised sensing component for automated part detection, counting and material handling.

The sensor can also form part of Industrial Automation Components UAE and Factory Automation Components used in manufacturing, assembly, feeding and production equipment.

Industrial Equipment Applications

The I7R212 can form part of Industrial Equipment & Supplies, Industrial Equipment & Supplies in UAE, Industrial Equipment & Supplies suppliers, Industrial Equipment in UAE and Industrial Electrical Equipment portfolios.

Its compact 20.1 mm ring opening, high resolution and fast response make it particularly useful for machinery where metallic components move through a controlled path and need to be detected consistently.

Protection & Reliability

The I7R212 provides an IP67 protection rating and operates within an ambient temperature range of -25 °C to +70 °C. These characteristics support use in industrial environments requiring protection against dust and water ingress within the specified operating conditions.

The sensor also incorporates reverse-polarity, short-circuit and overload protection, supporting dependable electrical operation when correctly installed within the specified limits.

UAE Industrial Automation Solutions

For companies providing Industrial automation solutions in UAE, the I7R212 provides a practical high-resolution inductive ring-sensing solution for fast metallic-part detection and counting.

Its 20.1 mm sensing opening, 1 mm steel-ball resolution, programmable NPN NO/NC output, 10–35 V DC operation, response time below 0.2 ms, adjustable 0.1–150 ms pulse stretching, M12 connection and IP67 protection make it suitable for specialised part-detection, counting, feeding and machine-monitoring applications.
