The IFM I7R208 I7R3015-FNKG/DY/US-100-INF is a high-speed inductive ring sensor designed for reliable non-contact detection of metallic parts passing through a 15.1 mm sensing opening. With a dynamic operating principle, NPN selectable normally-open/normally-closed output, 10–35 V DC operation, adjustable pulse stretching and IP67 protection, it is suitable for automated part detection, counting, feeding systems and industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM I7R208 I7R3015-FNKG/DY/US-100-INF is a high-speed inductive ring sensor designed for reliable non-contact detection of metallic components passing through a defined sensing opening.
The sensor uses a dynamic operating principle to detect metallic targets as they move through the ring. Its dedicated ring-shaped sensing arrangement creates a controlled detection path, making it suitable for automated part detection, counting, feeding systems, material-flow monitoring and production machinery.
The I7R208 features a compact 60 × 35 × 20 mm housing with a 15.1 mm internal sensing opening. This provides a defined passage for compatible metallic parts while allowing the sensor to monitor their movement through the sensing area.
The sensor uses an NPN electrical design with a selectable normally-open or normally-closed output. It operates from a 10–35 V DC supply, providing flexibility for integration with compatible PLCs, industrial controllers and machine-control systems.
High-speed inductive ring sensor
Dynamic operating principle
15.1 mm internal sensing opening
NPN electrical design
Normally-open / normally-closed output selectable
10–35 V DC operating voltage
200 mA permanent switching current
2 V maximum voltage drop
Fast response capability
Adjustable pulse stretching
M12 A-coded connector
Yellow switching-status LED
IP67 protection rating
-25 °C to +70 °C ambient temperature
Protection class III
Reverse-polarity protection
Short-circuit protection
Overload protection
Polyamide housing
POM sensing ring
60 × 35 × 20 mm compact construction
Suitable for high-speed part detection
Suitable for automated counting
Suitable for material-flow monitoring
Suitable for industrial automation
The I7R208 is designed for fast non-contact detection of metallic components passing through its ring-shaped sensing opening.
The 15.1 mm internal diameter provides a defined sensing passage for compatible metallic objects. This makes the sensor suitable for applications where parts move through a controlled path, such as automated feeders, production machinery and material-handling systems.
The NPN output can be configured as normally open or normally closed, allowing the sensor to be adapted to compatible PLC inputs and automation control circuits. Its 200 mA permanent switching current supports suitable industrial control applications.
The adjustable pulse-stretching function can extend short detection signals, helping connected controllers reliably register detection events when metallic parts pass rapidly through the sensing opening.

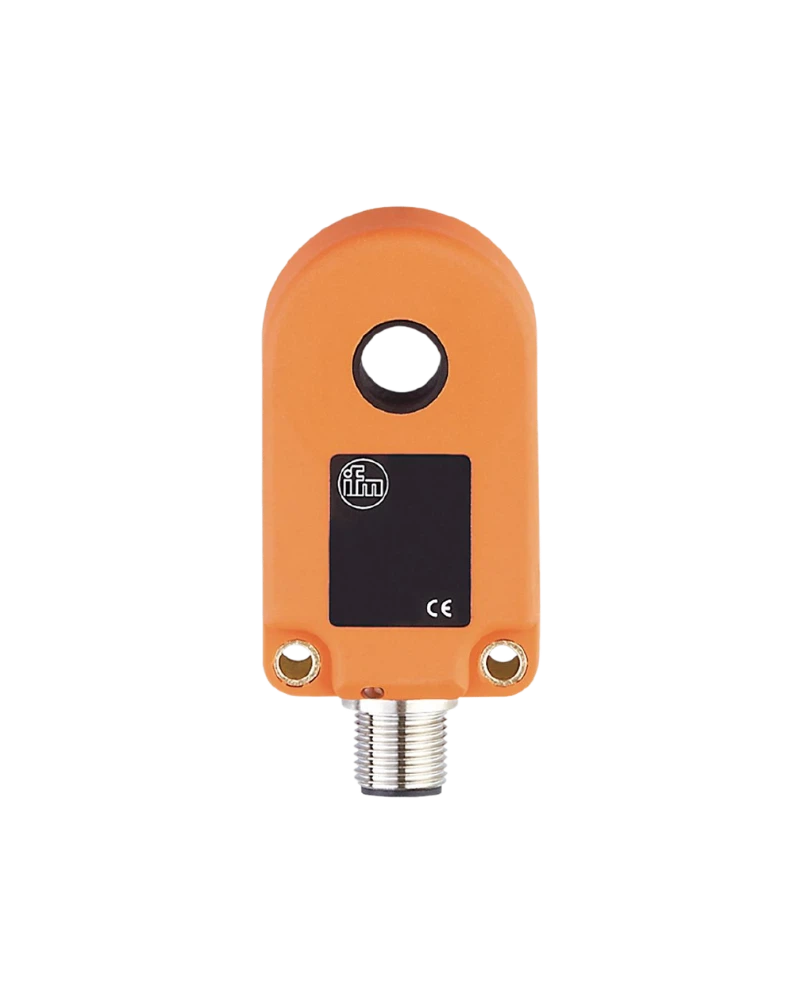

The I7R208 uses a compact ring-style housing measuring 60 × 35 × 20 mm with a 15.1 mm internal sensing opening.
Metallic parts pass through the central opening while the sensor monitors their presence. This arrangement provides a repeatable detection point and is particularly useful when components follow a defined path through automated equipment.
The housing is manufactured from polyamide (PA) and the sensing ring from POM. An M12 A-coded connector provides electrical connection to compatible industrial sensor cabling.
The I7R208 can be used for reliable detection of metallic components moving through a controlled sensing path.
Small-part detection
Automated counting
Part presence monitoring
Metal component detection
Feeder monitoring
Material-flow monitoring
Production-line monitoring
Assembly automation
Component sorting
Machine control
The ring configuration provides a consistent detection point as metallic components pass through the sensor opening.
The I7R208 is suitable for Industrial Automation UAE applications requiring reliable and repeatable detection of metallic components.
Small metal part detection
Automated counting
Part presence detection
Metal component monitoring
Material-flow monitoring
Feeder monitoring
Production-line monitoring
Assembly automation
Machine-control applications
Factory automation
For Industrial automation companies in UAE, Industrial automation companies UAE and businesses developing Industrial automation systems in UAE, the I7R208 provides a specialised ring-sensing solution for automated metallic-part detection.
The I7R208 is an Industrial Sensor designed for ring-type detection of metallic targets. It can form part of an Industrial Sensors Supplier UAE product range alongside Proximity Sensors, Photoelectric Sensors and other industrial sensing technologies.
For a Proximity Sensors Supplier UAE or Sensor Supplier UAE, the I7R208 provides a specialised solution for applications where metallic objects pass through a defined sensing opening.
The I7R208 can be integrated with compatible PLCs, industrial controllers and machine-control systems through its M12 connector.
For an Industrial Automation Supplier in UAE, Industrial Automation Suppliers UAE, Automation Products Supplier UAE or Industrial Automation Equipment UAE, it provides a dedicated sensing component for automated part detection and material handling.
The sensor can also form part of Industrial Automation Components UAE and Factory Automation Components used in manufacturing, assembly, feeding and production equipment.
The I7R208 can form part of Industrial Equipment & Supplies, Industrial Equipment & Supplies in UAE, Industrial Equipment & Supplies suppliers, Industrial Equipment in UAE and Industrial Electrical Equipment portfolios.
Its compact ring construction and defined sensing opening make it particularly useful for machinery where metallic objects follow a controlled path and need to be detected consistently.
The I7R208 provides an IP67 protection rating and operates within an ambient temperature range of -25 °C to +70 °C.
The sensor also incorporates reverse-polarity, short-circuit and overload protection, supporting dependable electrical operation when correctly installed within the specified operating limits.
For companies providing Industrial automation solutions in UAE, the I7R208 provides a practical inductive ring-sensing solution for automated detection of metallic components.
Its 15.1 mm sensing opening, NPN selectable NO/NC output, 10–35 V DC operation, dynamic sensing principle, adjustable pulse stretching, M12 connector and IP67 protection make it suitable for specialised part-detection, counting, feeding and machine-monitoring applications.
| Specification | Details |
|---|---|
| Product Code | I7R208 |
| Manufacturer | IFM electronic |
| Model / Part Number | I7R3015-FNKG/DY/US-100-INF |
| Product Type | Inductive Ring Sensor |
| Sensor Type | Inductive Ring / Small-Part Sensor |
| Operating Principle | Dynamic |
| Electrical Design | NPN |
| Output Function | Normally Open / Normally Closed, Selectable |
| Operating Voltage | 10–35 V DC |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Maximum Voltage Drop | 2 V |
| Permanent Switching Current | 200 mA |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Internal Sensing Diameter | 15.1 mm |
| Housing Type | Circular / Ring |
| Housing Dimensions | 60 × 35 × 20 mm |
| Housing Material | Polyamide (PA) |
| Ring Material | POM |
| Electrical Connection | 1 × M12 connector |
| Connector Coding | A-coded |
| Switching Status Indication | 1 × yellow LED |
| Pulse Stretching | Adjustable |
| Protection Rating | IP67 |
| Ambient Temperature | -25 °C to +70 °C |
| MTTF | Approx. 556 years |
| Weight | Approx. 60 g |
| Pack Quantity | 1 piece |
| Typical Applications | Small metallic part detection, automated counting, feeding systems, material handling, assembly automation, production monitoring and factory automation |
