The IFM I7R207 I7R3015-FPKG/DY/US-100-IPF is a high-resolution inductive ring sensor designed for fast, non-contact detection of small metallic parts passing through a 15.1 mm sensing opening. With a PNP electrical design, selectable normally-open/normally-closed output, dynamic operating principle, high-speed response, adjustable pulse stretching and IP67 protection, it is suitable for automated counting, part detection, feeding systems and industrial automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM I7R207 I7R3015-FPKG/DY/US-100-IPF is a high-resolution inductive ring sensor designed for reliable non-contact detection of small metallic components passing through a defined sensing opening.
The sensor uses a dynamic operating principle for fast detection of metallic targets. Its ring-shaped construction creates a controlled sensing path around the passing component, making it suitable for automated part detection, counting, feeding and material-flow monitoring.
The I7R207 features a compact 60 × 35 × 20 mm housing with a 15.1 mm internal sensing opening. This provides a defined passage for compatible metallic components while allowing the sensor to monitor their movement through the ring.
The sensor uses a PNP electrical design with a selectable normally-open or normally-closed output. It operates from a 10–35 V DC supply, making it suitable for integration with compatible PLCs, industrial controllers and machine-control systems.
High-resolution inductive ring sensor
Dynamic operating principle
15.1 mm internal sensing opening
PNP electrical design
Normally-open / normally-closed output selectable
10–35 V DC operating voltage
200 mA permanent switching current
2 V maximum voltage drop
High-speed response
Adjustable pulse stretching
M12 A-coded connector
Yellow switching-status LED
IP67 protection rating
-25 °C to +70 °C ambient temperature
Protection class III
Reverse-polarity protection
Short-circuit protection
Overload protection
Polyamide housing
POM sensing ring
60 × 35 × 20 mm compact construction
Suitable for high-speed part detection
Suitable for automated counting
Suitable for material-flow monitoring
Suitable for industrial automation
The I7R207 is designed for fast non-contact detection of metallic components passing through the ring opening. Its dynamic operating principle makes it suitable for applications where parts move quickly and detection must occur within a short time.
The 15.1 mm internal sensing diameter provides a controlled detection passage for suitable metallic parts. This makes the sensor useful for automated feeders, production machinery, material-handling systems and component-counting applications.
The PNP output can be configured as normally open or normally closed, providing flexibility when connecting the sensor to compatible automation controllers. Its 200 mA permanent switching current supports connection to suitable industrial control inputs and circuits.
The adjustable pulse-stretching function can extend short detection signals, helping a PLC or controller reliably register components that pass rapidly through the sensing opening.

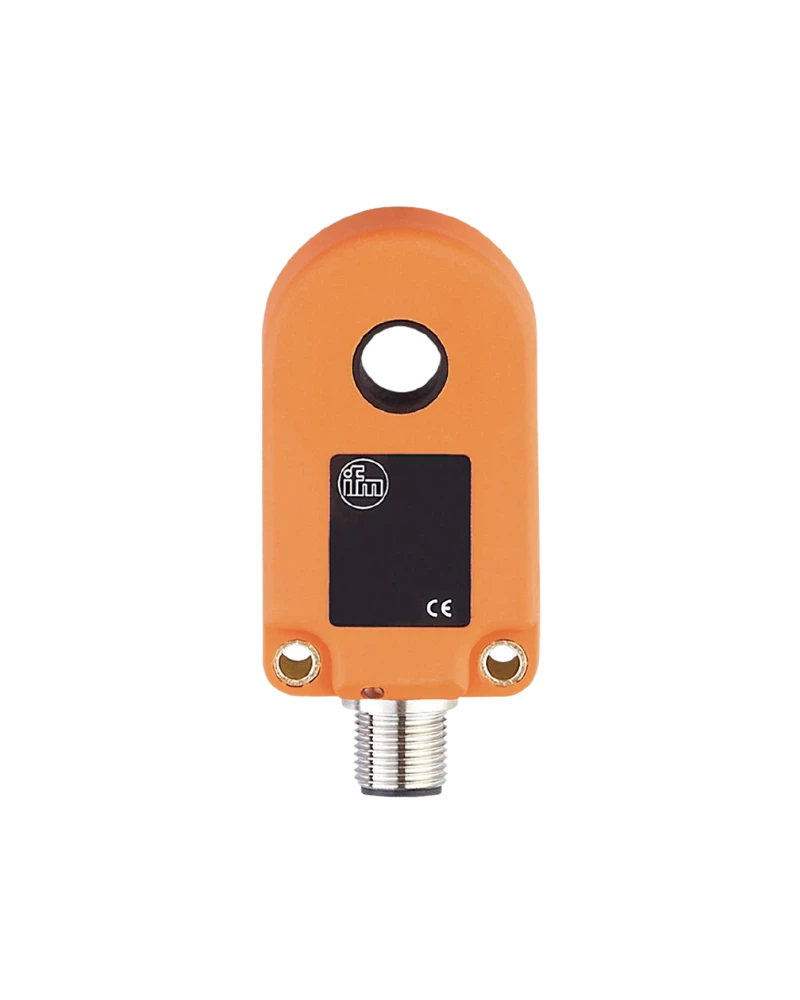

The I7R207 uses a compact ring-style housing measuring 60 × 35 × 20 mm with a 15.1 mm internal opening.
Metallic components pass through the central sensing area while the sensor monitors their presence. This arrangement provides a repeatable detection point and can simplify installation in applications where parts already follow a defined path.
The housing is manufactured from polyamide (PA) and the sensing ring from POM. An M12 A-coded connector provides the electrical connection for compatible industrial sensor cables.
The I7R207 is suitable for applications where metallic components need to be detected at high speed.
Small-part detection
High-speed component detection
Automated counting
Metal-part presence detection
Feeder monitoring
Material-flow monitoring
Production-line monitoring
Assembly automation
Component sorting
Machine control
Its dynamic sensing principle, rapid response and adjustable pulse stretching make it suitable for demanding automated detection processes.
The I7R207 is suitable for Industrial Automation UAE applications requiring fast and repeatable detection of metallic components.
Small metal part detection
Automated counting
Part presence detection
Metal component monitoring
Material-flow monitoring
Feeder monitoring
Production-line monitoring
Assembly automation
Machine-control applications
Factory automation
For Industrial automation companies in UAE, Industrial automation companies UAE and businesses developing Industrial automation systems in UAE, the I7R207 provides a specialised ring-sensing solution for high-speed metallic-part detection.
The I7R207 is an Industrial Sensor designed for ring-type detection of metallic targets. It can form part of an Industrial Sensors Supplier UAE product range alongside Proximity Sensors, Photoelectric Sensors and other industrial sensing technologies.
For a Proximity Sensors Supplier UAE or Sensor Supplier UAE, the I7R207 provides a specialised sensing solution where metallic components move through a defined sensing opening.
The I7R207 can be integrated with compatible PLCs, industrial controllers and machine-control systems through its M12 connector.
For an Industrial Automation Supplier in UAE, Industrial Automation Suppliers UAE, Automation Products Supplier UAE or Industrial Automation Equipment UAE, it provides a specialised component for automated part detection and material handling.
The sensor can also form part of Industrial Automation Components UAE and Factory Automation Components used in manufacturing, assembly, feeding and production equipment.
The I7R207 can form part of Industrial Equipment & Supplies, Industrial Equipment & Supplies in UAE, Industrial Equipment & Supplies suppliers, Industrial Equipment in UAE and Industrial Electrical Equipment portfolios.
Its compact ring construction and defined sensing opening make it particularly useful for machinery where metallic objects follow a controlled path and must be detected consistently.
The I7R207 provides an IP67 protection rating and operates within an ambient temperature range of -25 °C to +70 °C.
The sensor also incorporates reverse-polarity, short-circuit and overload protection, supporting dependable electrical operation when correctly installed within the specified operating limits.
For companies providing Industrial automation solutions in UAE, the I7R207 provides a practical high-speed inductive ring-sensing solution for automated detection of metallic components.
Its 15.1 mm sensing opening, PNP selectable NO/NC output, 10–35 V DC operation, dynamic sensing principle, adjustable pulse stretching, M12 connector and IP67 protection make it suitable for specialised part-detection, counting, feeding and machine-monitoring applications.
| Specification | Details |
|---|---|
| Product Code | I7R207 |
| Manufacturer | IFM electronic |
| Model / Part Number | I7R3015-FPKG/DY/US-100-IPF |
| Product Type | Inductive Ring Sensor |
| Sensor Type | Inductive Ring / Small-Part Sensor |
| Operating Principle | Dynamic |
| Electrical Design | PNP |
| Output Function | Normally Open / Normally Closed, Selectable |
| Operating Voltage | 10–35 V DC |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Maximum Voltage Drop | 2 V |
| Permanent Switching Current | 200 mA |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Internal Sensing Diameter | 15.1 mm |
| Housing Type | Circular / Ring |
| Housing Dimensions | 60 × 35 × 20 mm |
| Housing Material | Polyamide (PA) |
| Ring Material | POM |
| Electrical Connection | 1 × M12 connector |
| Connector Coding | A-coded |
| Switching Status Indication | 1 × yellow LED |
| Pulse Stretching | Adjustable |
| Protection Rating | IP67 |
| Ambient Temperature | -25 °C to +70 °C |
| MTTF | Approx. 556 years |
| Weight | Approx. 60 g |
| Pack Quantity | 1 piece |
| Typical Applications | Small metallic part detection, automated counting, feeding systems, material handling, assembly automation, production monitoring and factory automation |
