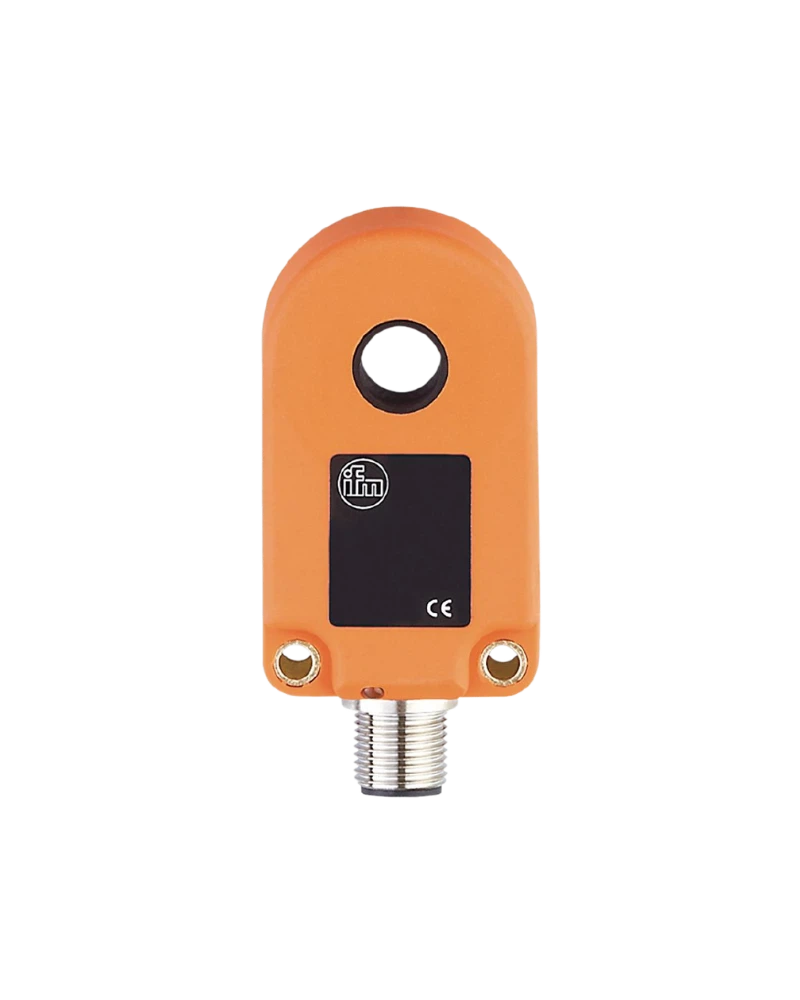

The IFM I7R206 I7R3015-FNKG/US-100-INF is an inductive ring sensor designed for reliable non-contact detection of small metallic parts passing through a defined sensing opening. With a 15.1 mm internal diameter, NPN normally-open output, 10–35 V DC operation, high-speed detection capability, adjustable pulse stretching and IP67 protection, it is suitable for automated counting, material handling, part detection and industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM I7R206 I7R3015-FNKG/US-100-INF is an inductive ring sensor designed for reliable non-contact detection of metallic objects passing through a defined sensing opening.
Its ring-shaped construction creates a controlled detection zone around the passing component, making it suitable for small-part detection, automated counting, feeding systems, material-flow monitoring and production machinery.
The I7R206 features a compact 60 × 35 × 20 mm housing with a 15.1 mm internal sensing opening. The larger sensing passage allows suitable metallic components to pass through the ring while the sensor monitors their presence.
The sensor uses an NPN electrical design with a normally-open output and operates from a 10–35 V DC supply. Its fast response characteristics make it suitable for repetitive detection tasks in automated machinery.
Inductive ring sensor for metallic object detection
15.1 mm internal sensing opening
NPN electrical design
Normally-open output
10–35 V DC operating voltage
200 mA permanent switching current
2 V maximum voltage drop
High-speed detection capability
Adjustable pulse stretching
M12 A-coded connector
Yellow switching-status LED
IP67 protection rating
-25 °C to +70 °C ambient temperature
Protection class III
Reverse-polarity protection
Short-circuit protection
Overload protection
Polyamide housing
POM sensing ring
Compact 60 × 35 × 20 mm construction
Suitable for automated counting
Suitable for material-flow monitoring
Suitable for small-part detection
Suitable for industrial automation
The I7R206 is designed for non-contact detection of metallic parts passing through the sensor opening. The ring configuration provides a defined sensing path, making it suitable for applications where components move through feeders, production equipment, guided material-handling systems or other controlled paths.
The 15.1 mm internal diameter provides a practical sensing passage for compatible metallic parts. This allows the sensor to monitor objects as they pass through the central detection area.
The NPN normally-open output provides a switching signal to compatible PLCs, controllers and automation systems. The sensor supports a permanent switching current of 200 mA and a maximum voltage drop of 2 V.
The sensor's fast detection capability makes it suitable for applications where metallic components pass rapidly through the sensing area. The adjustable pulse-stretching function can help connected control systems register short detection events.
The I7R206 uses a compact ring-style construction with a 60 × 35 × 20 mm housing and a 15.1 mm internal opening.
The central sensing opening allows metallic components to pass through the ring while the sensor detects their presence. This arrangement is particularly useful for automated feeders, production lines, small-part handling systems and counting applications.
The housing is manufactured from polyamide, while the sensing ring is made from POM. Electrical connection is provided through an M12 A-coded connector for integration with compatible industrial sensor cabling.
The I7R206 can be used for applications requiring reliable detection of metallic components moving through a controlled path.
Small-part detection
Automated counting
Part presence monitoring
Metal component detection
Feeder monitoring
Material-flow monitoring
Production-line monitoring
Assembly automation
Component sorting
Machine control
The ring configuration provides a repeatable detection point as metallic components pass through the sensing opening.
The I7R206 is suitable for Industrial Automation UAE applications requiring reliable detection of metallic components.
Small metal part detection
Automated counting
Part presence detection
Metal component monitoring
Material-flow monitoring
Feeder monitoring
Production-line monitoring
Assembly automation
Machine-control applications
Factory automation
For Industrial automation companies in UAE, Industrial automation companies UAE and businesses developing Industrial automation systems in UAE, the I7R206 provides a specialised ring-sensing solution for automated metallic-part detection.
The I7R206 is an Industrial Sensor designed for ring-type detection of metallic objects. It can form part of an Industrial Sensors Supplier UAE product range alongside Proximity Sensors, Photoelectric Sensors and other industrial sensing technologies.
For a Proximity Sensors Supplier UAE or Sensor Supplier UAE, the I7R206 provides a specialised solution for applications where metallic targets pass through a defined sensing opening.
The I7R206 can be integrated with compatible PLCs, industrial controllers and machine-control systems through its M12 connector.
For an Industrial Automation Supplier in UAE, Industrial Automation Suppliers UAE, Automation Products Supplier UAE or Industrial Automation Equipment UAE, it provides a dedicated sensing component for automated part detection and material handling.
The sensor can also form part of Industrial Automation Components UAE and Factory Automation Components used in manufacturing, assembly, feeding and production equipment.
The I7R206 can form part of Industrial Equipment & Supplies, Industrial Equipment & Supplies in UAE, Industrial Equipment & Supplies suppliers, Industrial Equipment in UAE and Industrial Electrical Equipment portfolios.
Its ring-style construction is particularly useful for machinery where metallic objects follow a fixed path and need to be detected consistently at a specific point.
The I7R206 provides an IP67 protection rating and operates within an ambient temperature range of -25 °C to +70 °C.
The sensor also incorporates reverse-polarity, short-circuit and overload protection, supporting dependable operation when correctly installed within the specified electrical limits.
For companies providing Industrial automation solutions in UAE, the I7R206 provides a practical inductive ring-sensing solution for automated detection of metallic parts.
Its 15.1 mm sensing opening, NPN normally-open output, 10–35 V DC operation, high-speed detection capability, M12 connector and IP67 protection make it suitable for specialised part-detection, counting, feeding and machine-monitoring applications.
| Specification | Details |
|---|---|
| Product Code | I7R206 |
| Manufacturer | IFM electronic |
| Model / Part Number | I7R3015-FNKG/US-100-INF |
| Product Type | Inductive Ring Sensor |
| Sensor Type | Inductive Ring / Small-Part Sensor |
| Electrical Design | NPN |
| Output Function | Normally Open (NO) |
| Operating Voltage | 10–35 V DC |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Maximum Voltage Drop | 2 V |
| Permanent Switching Current | 200 mA |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Internal Sensing Diameter | 15.1 mm |
| Housing Type | Circular / Ring |
| Housing Dimensions | 60 × 35 × 20 mm |
| Housing Material | Polyamide (PA) |
| Ring Material | POM |
| Electrical Connection | 1 × M12 connector |
| Connector Coding | A-coded |
| Switching Status Indication | 1 × yellow LED |
| Pulse Stretching | Adjustable |
| Protection Rating | IP67 |
| Ambient Temperature | -25 °C to +70 °C |
| MTTF | Approx. 556 years |
| Weight | Approx. 60 g |
| Pack Quantity | 1 piece |
| Typical Applications | Small metallic part detection, automated counting, feeding systems, material handling, assembly automation, production monitoring and factory automation |
