Description

Introduction

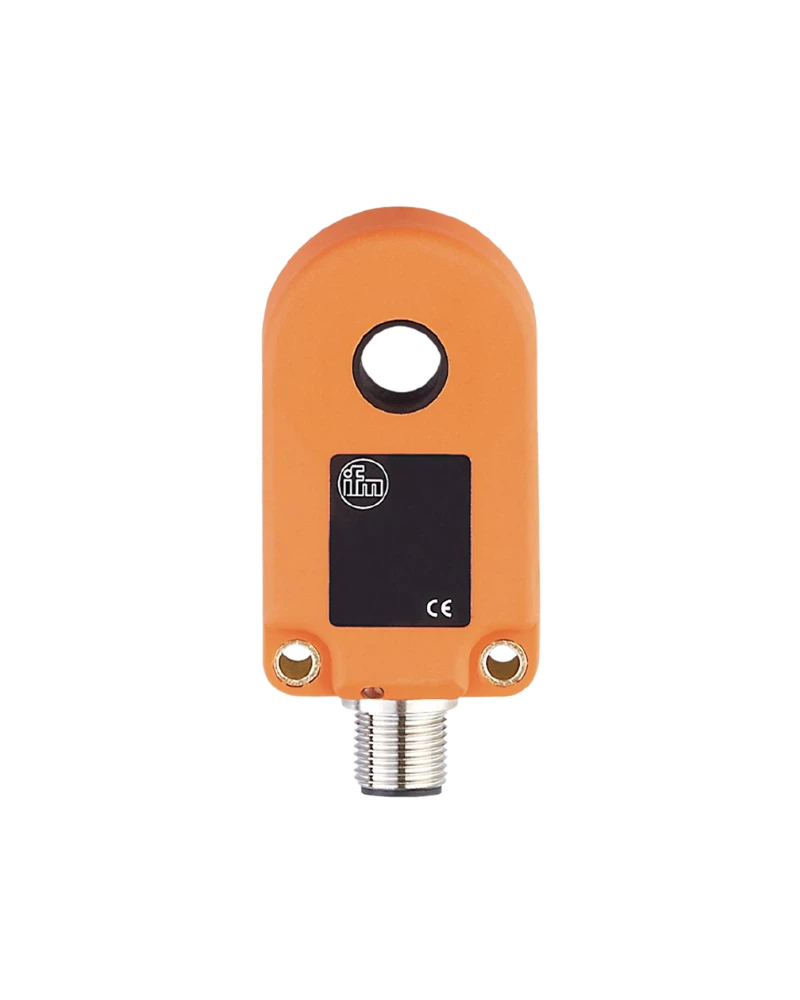

The IFM I7R203 I7R3010-FPKG/DY/US-100-IPF is a high-resolution inductive ring sensor designed for reliable non-contact detection of small metallic objects passing through a defined sensing opening.

Its ring-shaped construction provides a controlled detection zone for metallic parts moving through the sensor. The I7R203 uses a dynamic operating principle, making it suitable for applications requiring fast and reliable detection while maintaining good resistance to contamination. IFM highlights the sensor for its high resolution, short response times, resistance to dirt and high protection rating.

The sensor has a 60 × 35 × 20 mm circular housing with an internal opening of 10.1 mm. This compact ring arrangement is suitable for monitoring small metallic components, fast-moving parts and material flow in automated machinery.

The I7R203 uses a PNP electrical design with a selectable normally-open or normally-closed output. It operates from a 10–35 V DC supply and provides a permanent switching current of 200 mA.

Key Features

High-resolution inductive ring sensor
Dynamic operating principle
0.6 mm steel-ball resolution
10.1 mm internal sensing opening
60 × 35 × 20 mm circular housing
PNP electrical design
Normally-open / normally-closed output selectable
10–35 V DC operating voltage
200 mA permanent switching current
2 V maximum voltage drop
Maximum part speed of 35 m/s
Adjustable pulse stretching
Pulse stretching range: 0.1–150 ms
Response time below 0.2 ms
Maximum fall time: 0.2 ms
M12 A-coded connector
Yellow switching-status LED
IP67 protection rating
-25 °C to +70 °C ambient temperature
Protection class III
Reverse-polarity protection
Short-circuit protection
Overload protection
PA housing
POM sensing ring
Suitable for high-speed small-part detection
Suitable for automated counting and material-flow monitoring

Application Performance

The I7R203 is designed for high-resolution detection of small metallic objects passing through its ring-shaped sensing opening. Its 0.6 mm steel-ball resolution allows the sensor to detect very small metallic targets when the application conditions meet the specified sensing requirements.

The dynamic operating principle and response time of less than 0.2 ms make the sensor suitable for fast-moving parts and applications where detection events occur over very short periods. The maximum specified part speed is 35 m/s.

The adjustable pulse stretching function from 0.1 to 150 ms can extend the output signal, helping compatible control systems register short detection events from rapidly moving metallic parts.

The PNP output can be configured as normally open or normally closed, providing flexibility when integrating the ring sensor with compatible PLCs, controllers and machine-control systems. The sensor supports a permanent switching current of 200 mA.

Ring Sensor Design

The I7R203 features a 60 × 35 × 20 mm circular housing with a 10.1 mm internal diameter. Metallic parts can pass through the central opening while the sensor monitors their presence.

This arrangement is particularly useful for automated feeding systems, small-part handling equipment, production machinery and counting applications where objects follow a defined path through the sensing ring.

The housing is made from polyamide (PA) and the ring is made from POM. Electrical connection is provided through an M12 A-coded connector, allowing integration with compatible industrial sensor cabling.

High-Speed Small-Part Detection

The I7R203 is suitable for applications where small metallic parts move rapidly through the detection area.

Small-part counting
High-speed component detection
Metal-part presence detection
Automated feeding
Material-flow monitoring
Production-line monitoring
Assembly automation
Machine control
Component sorting
Factory automation

Its combination of 0.6 mm resolution, <0.2 ms response time, 35 m/s maximum part speed and adjustable pulse stretching makes it suitable for demanding high-speed detection tasks.

Industrial Automation Applications

The I7R203 is suitable for Industrial Automation UAE applications requiring high-resolution detection of small metallic components.

Small metal part detection
Automated counting
Part presence detection
Metal component monitoring
Material-flow monitoring
Feeder monitoring
Production-line monitoring
Assembly automation
Machine-control applications
Factory automation

For Industrial automation companies in UAE, Industrial automation companies UAE and businesses developing Industrial automation systems in UAE, the I7R203 provides a specialised ring-sensing solution for small metallic objects.

Industrial Sensors & Proximity Detection

The I7R203 is an Industrial Sensor designed specifically for ring-type detection of metallic targets. It can form part of an Industrial Sensors Supplier UAE product range alongside Proximity Sensors, Photoelectric Sensors and other industrial sensing technologies.

For a Proximity Sensors Supplier UAE or Sensor Supplier UAE, the I7R203 offers high-resolution detection in applications where a conventional point-style proximity sensor may not provide the required sensing arrangement.

Industrial Automation Integration

The I7R203 can be integrated with compatible PLCs, controllers and machine-control systems through its M12 connector.

For an Industrial Automation Supplier in UAE, Industrial Automation Suppliers UAE, Automation Products Supplier UAE or Industrial Automation Equipment UAE, it provides a specialised ring sensor for automated part detection.

The sensor can also form part of Industrial Automation Components UAE and Factory Automation Components used in manufacturing, assembly, material handling and production equipment.

Industrial Equipment Applications

The I7R203 can form part of Industrial Equipment & Supplies, Industrial Equipment & Supplies in UAE, Industrial Equipment & Supplies suppliers, Industrial Equipment in UAE and Industrial Electrical Equipment portfolios.

Its compact ring construction and high detection resolution make it particularly useful for machines that require reliable monitoring of small metallic components.

Protection & Reliability

The I7R203 provides an IP67 protection rating and operates within an ambient temperature range of -25 °C to +70 °C. This supports use in industrial environments where protection against dust and water ingress is required within the specified conditions.

The sensor also provides reverse-polarity, short-circuit and overload protection, supporting dependable electrical operation when correctly installed within the manufacturer's specified limits.

UAE Industrial Automation Solutions

For companies providing Industrial automation solutions in UAE, the I7R203 provides a practical high-resolution ring-sensing solution for small metallic parts and fast automated processes.

Its 0.6 mm steel-ball resolution, 10.1 mm sensing opening, selectable PNP NO/NC output, 10–35 V DC operation, adjustable 0.1–150 ms pulse stretching, M12 connector and IP67 protection make it suitable for specialised part-detection, counting and machine-monitoring applications.
