The IFM I7R202 I7R3010-FNKG/US-100-INF is an inductive ring sensor designed for reliable non-contact detection of small metallic objects passing through its sensing opening. Its ring-shaped construction makes it particularly suitable for monitoring small parts, metal components and other conductive objects moving through a defined detection path.

The sensor uses a static operating principle, providing reliable detection while remaining relatively insensitive to dirt. IFM highlights the I7R202 for its high resolution, short response times, resistance to contamination and high protection rating.

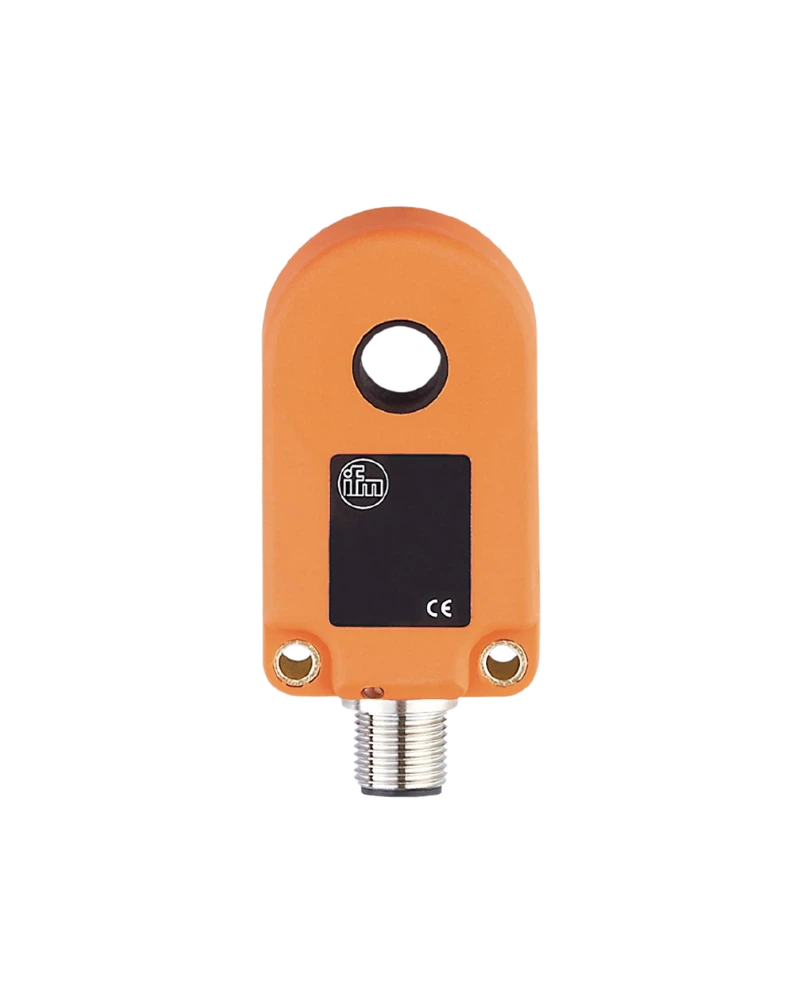

The I7R202 has a 60 × 35 × 20 mm circular housing with an internal opening of 10.1 mm. This compact ring configuration allows small metallic parts to pass through the sensing area for automated detection and monitoring.

The sensor operates from a 10–35 V DC supply and uses an NPN electrical design. The output function can be selected between normally open and normally closed, providing flexibility when integrating the sensor into compatible control systems.

Key Features

Inductive ring sensor for small metallic part detection
Static operating principle
High-resolution detection
1.5 mm minimum steel-ball resolution
10.1 mm internal sensing opening
60 × 35 × 20 mm circular housing
NPN electrical design
Normally-open / normally-closed output selectable
10–35 V DC operating voltage
200 mA permanent switching current
2 V maximum voltage drop
Adjustable pulse stretching from 10–150 ms
Pulse stretching adjustable
Response time below 0.5 ms
Maximum part speed up to 35 m/s
10 ms maximum fall time
M12 A-coded connector
Yellow switching-status LED
IP67 protection rating
-25 °C to +70 °C ambient temperature
Reverse-polarity protection
Short-circuit protection
Overload protection
PA housing material
POM ring material
Suitable for industrial automation
Suitable for high-speed small-part detection

Application Performance

The I7R202 is designed for applications where small metallic components need to be detected as they pass through a defined sensing opening. The ring sensor arrangement provides a controlled detection zone around the passing object, making it useful for automated counting, part monitoring and material-flow applications.

With a 1.5 mm minimum steel-ball resolution, the sensor can detect relatively small metallic parts. Its static operating principle and short response time make it suitable for applications requiring fast and repeatable detection.

The sensor supports a maximum part speed of 35 m/s, allowing it to be used in high-speed material-handling and production processes when the application meets the specified sensing conditions.

The adjustable pulse stretching function from 10–150 ms can extend the output signal duration, helping compatible control systems reliably register short detection events. This is useful where small metallic parts pass through the sensing ring quickly.

The I7R202 provides an NPN switching output with selectable normally-open or normally-closed operation. This allows the sensor to be configured according to the requirements of the connected PLC, controller or automation circuit.
