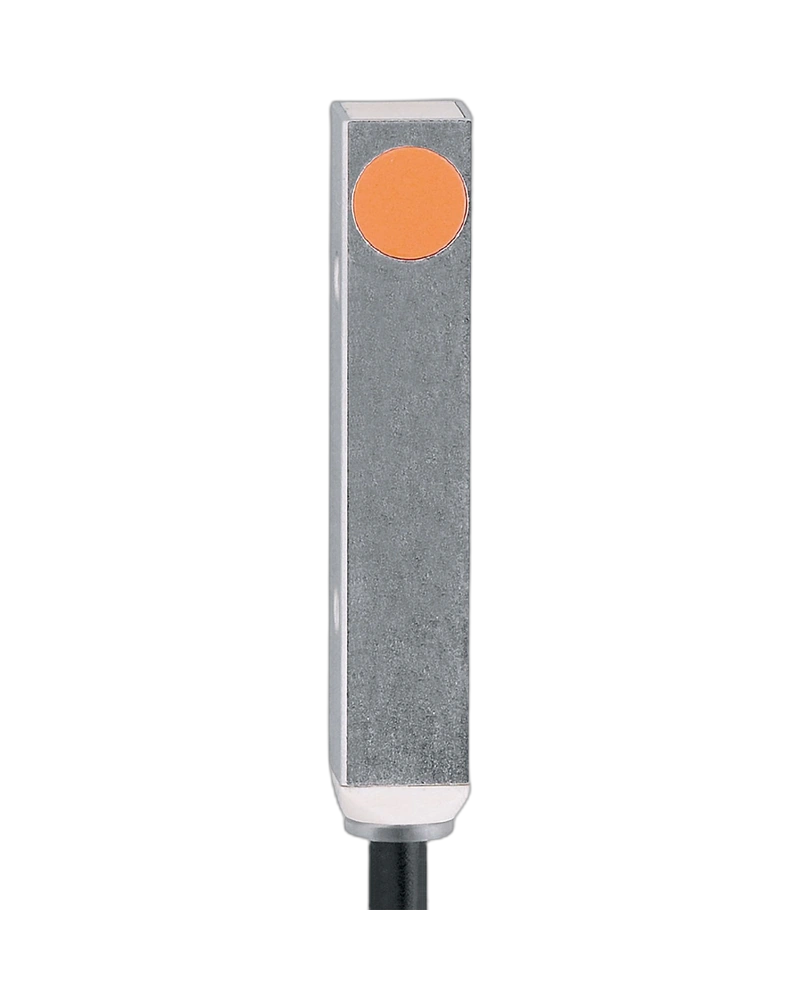

The IFM I35001 ILA2002-AROG/OBEN/UP RT is a compact rectangular inductive sensor designed for reliable non-contact detection of metallic objects in industrial automation and machinery applications. With a 2 mm sensing range, PNP/NPN normally-open output, 10–36 V DC operation, 2000 Hz switching frequency, 2 m PVC cable and IP65 protection, it is ideal for space-restricted installations requiring fast and dependable metal detection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM I35001 ILA2002-AROG/OBEN/UP RT is a compact inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial automation, machinery and factory production applications.
Its particularly small 40 × 8 × 8 mm rectangular housing makes the sensor suitable for installations where available mounting space is limited. The compact design allows it to be integrated into machine structures, fixtures and automation equipment where conventional cylindrical proximity sensors may not fit.
The sensor provides a 2 mm nominal sensing range, with a real sensing range of 2 ± 10% mm and a guaranteed operating distance of 0–1.6 mm. Its flush-mountable construction supports neat integration into suitable machine structures.
The I35001 uses a DC PNP/NPN electrical design with a normally-open switching function. It operates from a 10–36 V DC supply and supports a high 2000 Hz switching frequency, making it particularly suitable for fast repetitive detection tasks in automated machinery.
Compact rectangular 40 × 8 × 8 mm housing
2 mm sensing range
Real sensing range: 2 ± 10% mm
Operating distance: 0–1.6 mm
Flush-mountable installation
DC PNP/NPN electrical design
Normally-open output
10–36 V DC operating voltage
100 mA permanent switching current
2000 Hz switching frequency
Maximum voltage drop: 4.7 V
Minimum load current: 4 mA
Maximum leakage current: 0.8 mA
Reverse-polarity protection
Overload protection
2 m PVC cable
3 × 0.14 mm² cable construction
Red switching-status LED
IP65 protection rating
-25 °C to +70 °C ambient temperature
Protection class III
Brass housing with white-bronze coating
LCP sensing material
Suitable for restricted installation spaces
Suitable for high-speed detection applications
The I35001 is designed for fast and reliable detection of metallic objects in automated machinery. Its 2000 Hz switching frequency allows it to handle high-speed detection tasks where a conventional low-frequency proximity sensor may not provide the required switching performance.
The compact 40 × 8 × 8 mm housing is one of the sensor's key advantages. Its slim rectangular form makes it suitable for machine components, fixtures, production equipment and other installations with restricted space.
The 2 mm sensing range enables reliable detection of suitable metallic targets at short distances. The sensor is designed for flush mounting, allowing it to be installed neatly into compatible machine structures.
The PNP/NPN normally-open output provides flexibility when integrating the sensor with compatible industrial control systems. The sensor supports a permanent switching current of 100 mA, with a minimum load current of 4 mA.
The I35001 is supplied with a 2 m PVC cable with 3 × 0.14 mm² conductors, providing a pre-wired connection arrangement for installation in industrial machinery. A red LED provides visible switching-status indication for commissioning and maintenance.
The sensor provides IP65 protection and is designed for an ambient temperature range of -25 °C to +70 °C, supporting operation across a broad range of industrial environments.
The I35001 is suitable for Industrial Automation UAE applications requiring compact and fast metallic-object detection.
Machine position detection
Metal component detection
Small-part detection
High-speed object detection
Assembly machinery
Production machinery
Conveyor monitoring
Machine fixture monitoring
Automated counting
Factory automation
For Industrial automation companies in UAE, Industrial automation companies UAE and businesses developing Industrial automation systems in UAE, the I35001 provides a compact sensing solution for applications where installation space is restricted.
The I35001 is an Industrial Sensor designed for short-range non-contact detection of metallic targets. It can form part of an Industrial Sensors Supplier UAE product range alongside Proximity Sensors, Photoelectric Sensors and other industrial sensing technologies.
For a Proximity Sensors Supplier UAE or Sensor Supplier UAE, the I35001 offers a compact 2 mm sensing solution with a high 2000 Hz switching frequency.
The I35001 is particularly suited to applications where sensor dimensions are critical. Its 40 × 8 × 8 mm rectangular construction provides a compact alternative to larger proximity sensor housings.
The slim form factor can help machine builders position the sensor close to moving components while maintaining a clean installation within the available machine structure.
The I35001 can be integrated into compatible PLC, controller and machine-control systems requiring a normally-open inductive switching signal.
For an Industrial Automation Supplier in UAE, Industrial Automation Suppliers UAE, Automation Products Supplier UAE or Industrial Automation Equipment UAE, it provides a compact sensing component for machine builders, production facilities and automation system integrators.
The sensor can also form part of Industrial Automation Components UAE and Factory Automation Components used in manufacturing, assembly and machine-control applications.
The I35001 can form part of Industrial Equipment & Supplies, Industrial Equipment & Supplies in UAE, Industrial Equipment & Supplies suppliers, Industrial Equipment in UAE and Industrial Electrical Equipment portfolios.
Its compact dimensions and high switching frequency make it particularly useful for industrial machinery where both installation space and fast response are important considerations.
For companies providing Industrial automation solutions in UAE, the I35001 offers a practical compact inductive sensing solution for machinery and automated production equipment.
Its 40 × 8 × 8 mm housing, 2 mm sensing range, PNP/NPN normally-open output, 10–36 V DC operation, 2000 Hz switching frequency, 2 m PVC cable and IP65 protection make it suitable for specialised machine-detection applications.
| Specification | Details |
|---|---|
| Product Code | I35001 |
| Manufacturer | IFM electronic |
| Model / Part Number | ILA2002-AROG/OBEN/UP RT |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive Proximity Sensor |
| Housing Type | Rectangular |
| Housing Dimensions | 40 × 8 × 8 mm |
| Electrical Design | DC PNP/NPN |
| Output Function | Normally Open (NO) |
| Operating Voltage | 10–36 V DC |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Maximum Voltage Drop | 4.7 V |
| Minimum Load Current | 4 mA |
| Maximum Leakage Current | 0.8 mA |
| Permanent Switching Current | 100 mA |
| Switching Frequency | 2000 Hz |
| Short-Circuit Protection | No |
| Overload Protection | Yes |
| Sensing Range | 2 mm |
| Real Sensing Range (Sr) | 2 ± 10% mm |
| Operating Distance | 0–1.6 mm |
| Mounting | Flush mountable |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.5 |
| Correction Factor – Aluminium | 0.4 |
| Correction Factor – Copper | 0.3 |
| Hysteresis | 1–15% of Sr |
| Switch-Point Drift | -15 to +15% of Sr |
| Housing Material | Brass, white-bronze coated |
| Sensing Material | LCP |
| Connection | 2 m PVC cable |
| Cable Construction | 3 × 0.14 mm² |
| Output Status Indication | 1 × red LED |
| Protection Rating | IP65 |
| Ambient Temperature | -25 °C to +70 °C |
| EMC Standard | EN 60947-5-2 |
| EMC Emission | EN 55011 Class B |
| MTTF | Approx. 3459 years |
| Weight | Approx. 61 g |
| Pack Quantity | 1 piece |
| Typical Applications | Machine automation, metal detection, high-speed object detection, assembly machinery, machine position sensing and factory automation |
| Product Status | Article to be discontinued |
| Discontinuation Date | 31 March 2026 |
