The IFM I27003 SIY-3120-BPKG/A-PLATE is a long-range inductive area sensor designed for reliable non-contact detection of large metallic objects in industrial automation and metal-processing applications. It features an adjustable 30–120 mm sensing range, PNP normally-open output, 10–36 V DC operation, Ø164 × 63 mm PBT housing, aluminium mounting plate, 2 m PVC cable and IP65 protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM I27003 SIY-3120-BPKG/A-PLATE is a long-range inductive area sensor designed for reliable non-contact detection of large metallic objects in industrial machinery, steel processing, material handling and factory automation applications.
The sensor provides an adjustable sensing range of 30–120 mm, with a factory setting of 120 mm and a real sensing range of 120 ± 10% mm. The integrated potentiometer allows the sensing distance to be adjusted according to the requirements of the application.
The I27003 uses a PNP normally-open output and operates from a 10–36 V DC supply. Its 3 Hz switching frequency makes it suitable for applications involving large metallic objects, machine monitoring and long-range proximity detection.
Adjustable 30–120 mm sensing range
Factory setting: 120 mm
Real sensing range: 120 ± 10% mm
Long-range inductive area detection
PNP electrical design
Normally-open output
10–36 V DC operating voltage
250 mA permanent switching current
3 Hz switching frequency
Maximum voltage drop: 2.5 V
Reverse-polarity protection
Short-circuit protection
Overload protection
Ø164 mm cylindrical housing
63 mm overall length
Non-flush mounting
PBT housing
Aluminium mounting plate
2 m PVC cable
3 × 0.5 mm² cable construction
Yellow switching-status LED
IP65 protection rating
-20 °C to +70 °C ambient temperature
Protection class II
Suitable for large metallic target detection
Suitable for steel and metal processing
Suitable for material handling
Suitable for industrial automation
The I27003 is designed for long-range detection of metallic objects where standard compact proximity sensors may not provide sufficient sensing distance. Its adjustable 30–120 mm sensing range allows the sensor to detect large metal components, machine parts and moving metallic objects from a greater distance.
The integrated potentiometer allows the detection range to be adjusted according to the installation requirements. The factory setting is 120 mm, while the range can be reduced when a shorter detection distance is required.
The PNP normally-open output provides a switching signal to compatible PLCs, industrial controllers and automation equipment. With a permanent switching current of up to 250 mA, the sensor is suitable for compatible industrial control circuits within its specified electrical limits.

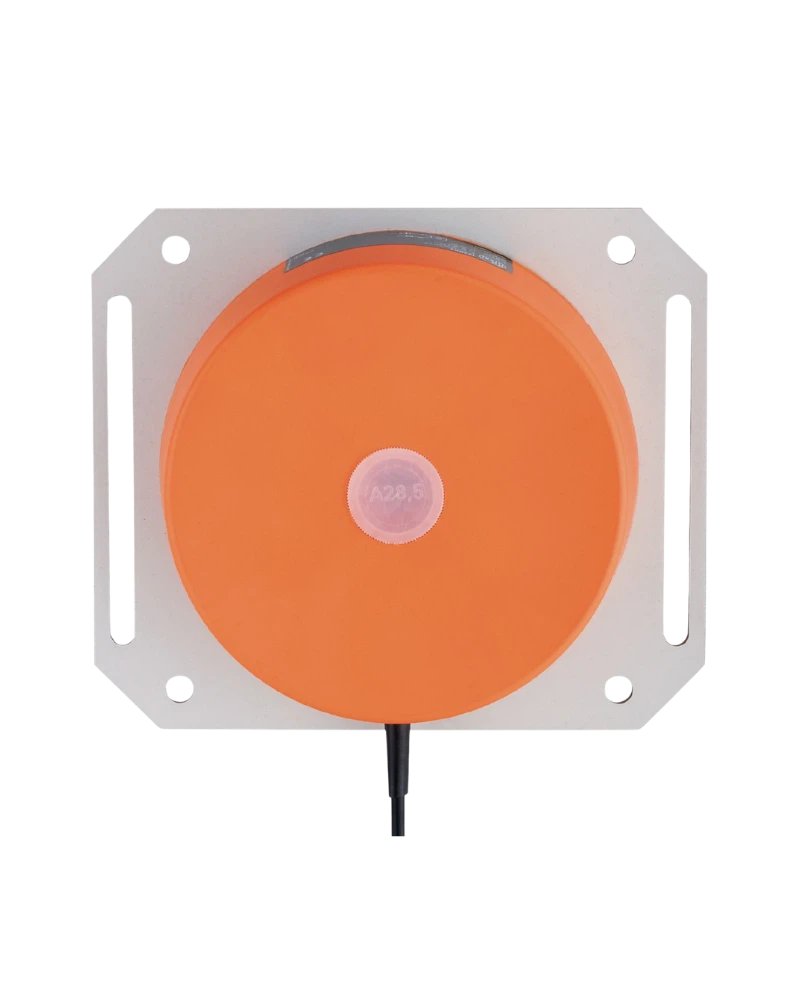

The I27003 features a large Ø164 mm cylindrical housing with a 63 mm length and is designed for non-flush mounting. The supplied mounting plate provides a practical installation arrangement for long-range area detection and applications involving large metallic targets.
The sensor housing is manufactured from PBT, while the mounting plate is made from aluminium. The sensor is supplied with a 2 m PVC cable containing 3 × 0.5 mm² conductors, providing a pre-wired connection for industrial installations.
A yellow switching-status LED provides visual indication of the sensor output state, supporting installation, commissioning and maintenance.
The I27003 provides IP65 protection and operates within an ambient temperature range of -20 °C to +70 °C, making it suitable for a variety of industrial environments.
The I27003 is suitable for Industrial Automation UAE applications requiring long-range detection of metallic objects.
Large metal object detection
Steel processing equipment
Metal handling machinery
Machine position detection
Conveyor monitoring
Metal component detection
Production machinery
Material handling systems
Industrial equipment monitoring
Factory automation
For Industrial automation companies in UAE, Industrial automation companies UAE and businesses developing Industrial automation systems in UAE, the I27003 provides a specialised long-range inductive sensing solution.
The I27003 is an Industrial Sensor designed for long-range non-contact detection of metallic targets. It can form part of an Industrial Sensors Supplier UAE product range alongside Proximity Sensors, Photoelectric Sensors and other industrial sensing technologies.
For a Proximity Sensors Supplier UAE or Sensor Supplier UAE, the I27003 provides an adjustable sensing range of up to 120 mm, PNP normally-open switching and a large-area sensor construction.
The I27003 can be integrated with compatible PLCs, industrial controllers and automation systems where long-range metallic detection is required.
For an Industrial Automation Supplier in UAE, Industrial Automation Suppliers UAE, Automation Products Supplier UAE or Industrial Automation Equipment UAE, it provides a specialised sensing component for machine builders, manufacturers and automation system integrators.
The sensor can also form part of Industrial Automation Components UAE and Factory Automation Components used in manufacturing, steel processing, material handling and production machinery.
The I27003 can form part of Industrial Equipment & Supplies, Industrial Equipment & Supplies in UAE, Industrial Equipment & Supplies suppliers, Industrial Equipment in UAE and Industrial Electrical Equipment portfolios.
Its extended sensing distance is particularly useful for applications involving large metallic targets where the sensor needs to remain separated from the moving or detected object.
For companies providing Industrial automation solutions in UAE, the I27003 provides a practical long-range sensing solution for large metallic components and industrial machinery.
Its adjustable 30–120 mm sensing range, PNP normally-open output, 10–36 V DC operation, Ø164 × 63 mm housing, aluminium mounting plate, 2 m PVC cable and IP65 protection make it suitable for specialised industrial proximity-sensing and machine-monitoring applications.
| Specification | Details |
|---|---|
| Product Code | I27003 |
| Manufacturer | IFM electronic |
| Model / Part Number | SIY-3120-BPKG/A-PLATE |
| Product Type | Inductive Area Sensor |
| Sensor Type | Long-Range Inductive Sensor |
| Electrical Design | DC PNP |
| Output Function | Normally Open (NO) |
| Operating Voltage | 10–36 V DC |
| Current Consumption | 15 mA at 24 V |
| Protection Class | II |
| Reverse Polarity Protection | Yes |
| Maximum Voltage Drop | 2.5 V |
| Permanent Switching Current | 250 mA |
| Switching Frequency | 3 Hz |
| Short-Circuit Protection | Yes |
| Short-Circuit Protection Type | Pulsed |
| Overload Protection | Yes |
| Sensing Range | 30–120 mm |
| Adjustable Sensing Range | Yes |
| Factory Setting Sensing Range | 120 mm |
| Real Sensing Range (Sr) | 120 ± 10% mm |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.4 |
| Correction Factor – Aluminium | 0.3 |
| Correction Factor – Copper | 0.2 |
| Hysteresis | <15% of Sr |
| Switch-Point Drift | -15 to +15% of Sr |
| Housing Type | Cylindrical |
| Housing Diameter | Ø164 mm |
| Housing Length | 63 mm |
| Mounting | Non-flush mountable |
| Mounting Type | With mounting plate |
| Housing Material | PBT |
| Mounting Plate Material | Aluminium |
| Connection | 2 m PVC cable |
| Cable Construction | 3 × 0.5 mm² |
| Switching Status Indication | 1 × yellow LED |
| Protection Rating | IP65 |
| Ambient Temperature | -20 °C to +70 °C |
| EMC Standard | EN 60947-5-2 |
| Weight | Approx. 1.32 kg |
| Included Accessories | Mounting plate and mounting hardware |
| Pack Quantity | 1 piece |
| Typical Applications | Steel industry, metal processing, large metal object detection, material handling, machine monitoring, conveyor systems and industrial automation |
