The IFM I27001 SIY-3120-BPKG is a long-range inductive area sensor designed for reliable non-contact detection of large metallic objects in industrial automation and metal-processing applications. It features an adjustable 30–120 mm sensing range, PNP normally-open output, 10–36 V DC operation, 3 Hz switching frequency, Ø164 × 63 mm PBT housing, 2 m PVC cable and IP65 protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM I27001 SIY-3120-BPKG is a long-range inductive area sensor designed for reliable non-contact detection of large metallic objects in industrial machinery, steel processing, metal handling and factory automation applications.
The sensor provides an adjustable sensing range of 30–120 mm, with a factory setting of 120 mm and a real sensing range of 120 ± 10% mm. The sensing distance can be adjusted using the integrated potentiometer, allowing the sensor to be configured according to the required detection position.
The I27001 uses a PNP normally-open output and operates from a 10–36 V DC supply. Its 3 Hz switching frequency is suitable for long-range detection applications involving large metallic targets and industrial machinery.
Adjustable 30–120 mm sensing range
Factory setting: 120 mm
Real sensing range: 120 ± 10% mm
PNP electrical design
Normally-open output
10–36 V DC operating voltage
250 mA permanent switching current
3 Hz switching frequency
Maximum voltage drop: 2.5 V
Reverse-polarity protection
Short-circuit protection
Overload protection
Cylindrical Ø164 mm housing
63 mm overall length
Non-flush mounting
PBT housing
Aluminium bottom cover
2 m PVC cable
3 × 0.5 mm² cable construction
Yellow switching-status LED
IP65 protection rating
-20 °C to +70 °C ambient temperature
Protection class II
Long-range metallic object detection
Suitable for steel and metal industries
Suitable for industrial automation applications
The I27001 is designed for long-distance detection of metallic objects where conventional short-range proximity sensors may not provide sufficient sensing distance. Its adjustable 30–120 mm detection range makes it suitable for large metal components, machine parts and moving metallic objects.
The integrated potentiometer allows the sensing range to be adjusted according to the application. With a factory setting of 120 mm, the sensor provides a long detection distance while retaining the flexibility to reduce the sensing range when required.
The sensor's PNP normally-open output provides a switching signal to compatible PLCs, controllers and automation systems. The 250 mA permanent current rating supports connection to suitable industrial control circuits within the specified electrical limits.

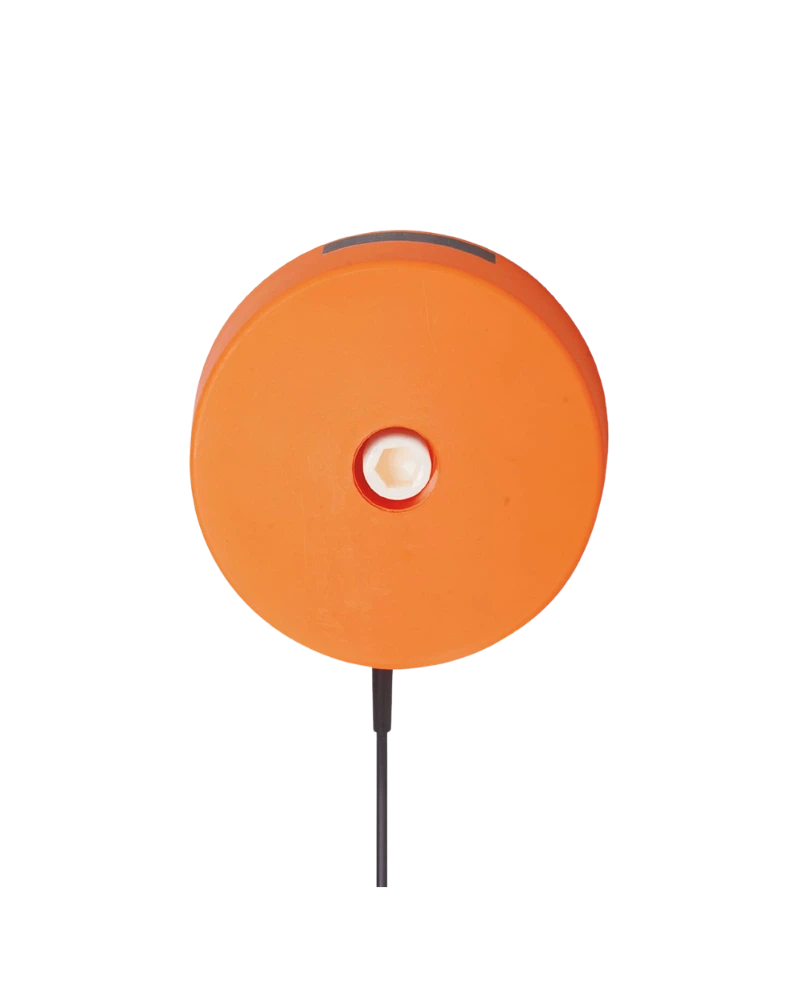

The I27001 features a large Ø164 mm cylindrical housing with a 63 mm length and is designed for non-flush mounting. This configuration is particularly suited to long-range area detection and applications involving large metallic targets.
The housing is manufactured from PBT, with an aluminium bottom cover. The sensor is supplied with a 2 m PVC cable containing 3 × 0.5 mm² conductors, providing a pre-wired connection for industrial automation installations.
A yellow LED switching-status indicator provides visual feedback of the sensor's switching state, supporting installation, commissioning and maintenance activities.
The I27001 provides IP65 protection and operates within an ambient temperature range of -20 °C to +70 °C, making it suitable for a broad range of industrial environments.
The I27001 is suitable for Industrial Automation UAE applications requiring long-range detection of metallic objects.
Large metal object detection
Steel processing equipment
Metal handling machinery
Machine position detection
Conveyor monitoring
Metal component detection
Production machinery
Material handling systems
Industrial equipment monitoring
Factory automation
For Industrial automation companies in UAE, Industrial automation companies UAE and businesses developing Industrial automation systems in UAE, the I27001 provides a specialised long-range inductive sensing solution.
The I27001 is an Industrial Sensor designed for long-range non-contact detection of metallic targets. It can form part of an Industrial Sensors Supplier UAE product range alongside Proximity Sensors, Photoelectric Sensors and other industrial sensing technologies.
For a Proximity Sensors Supplier UAE or Sensor Supplier UAE, the I27001 offers an adjustable sensing range of up to 120 mm, PNP normally-open switching and a robust large-area sensor construction.
The I27001 can be incorporated into compatible PLC, controller and industrial automation systems where long-range metallic detection is required.
For an Industrial Automation Supplier in UAE, Industrial Automation Suppliers UAE, Automation Products Supplier UAE or Industrial Automation Equipment UAE, it provides a specialised sensing component for machine builders, manufacturing facilities and system integrators.
The sensor can also form part of Industrial Automation Components UAE and Factory Automation Components used in manufacturing, steel processing, material handling and production machinery.
The I27001 can form part of Industrial Equipment & Supplies, Industrial Equipment & Supplies in UAE, Industrial Equipment & Supplies suppliers, Industrial Equipment in UAE and Industrial Electrical Equipment portfolios.
Its extended sensing distance is particularly useful for applications involving large metallic targets where the sensor needs to remain separated from the moving or detected object.
For companies providing Industrial automation solutions in UAE, the I27001 provides a practical long-range sensing solution for large metallic components and industrial machinery.
Its adjustable 30–120 mm sensing range, PNP normally-open output, 10–36 V DC operation, Ø164 × 63 mm housing, 2 m PVC cable and IP65 protection make it suitable for specialised industrial proximity-sensing and machine-monitoring applications.
| Specification | Details |
|---|---|
| Product Code | I27001 |
| Manufacturer | IFM electronic |
| Model / Part Number | SIY-3120-BPKG |
| Product Type | Inductive Area Sensor |
| Sensor Type | Long-Range Inductive Sensor |
| Electrical Design | DC PNP |
| Output Function | Normally Open (NO) |
| Operating Voltage | 10–36 V DC |
| Current Consumption | 15 mA at 24 V |
| Protection Class | II |
| Reverse Polarity Protection | Yes |
| Maximum Voltage Drop | 2.5 V |
| Permanent Switching Current | 250 mA |
| Switching Frequency | 3 Hz |
| Short-Circuit Protection | Yes |
| Short-Circuit Protection Type | Pulsed |
| Overload Protection | Yes |
| Sensing Range | 30–120 mm |
| Adjustable Sensing Range | Yes |
| Factory Setting Sensing Range | 120 mm |
| Real Sensing Range (Sr) | 120 ± 10% mm |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.4 |
| Correction Factor – Aluminium | 0.3 |
| Correction Factor – Copper | 0.2 |
| Hysteresis | <15% of Sr |
| Switch-Point Drift | -15 to +15% of Sr |
| Housing Type | Cylindrical |
| Housing Diameter | Ø164 mm |
| Housing Length | 63 mm |
| Mounting | Non-flush mountable |
| Housing Material | PBT |
| Bottom Cover Material | Aluminium |
| Connection | 2 m PVC cable |
| Cable Construction | 3 × 0.5 mm² |
| Switching Status Indication | 1 × yellow LED |
| Protection Rating | IP65 |
| Ambient Temperature | -20 °C to +70 °C |
| EMC Standard | EN 60947-5-2 |
| MTTF | Approx. 1049 years |
| Weight | Approx. 1242.5 g |
| Included Accessories | 1 × M16 × 90 mm mounting screw |
| Pack Quantity | 1 piece |
| Typical Applications | Steel industry, metal processing, large metal object detection, material handling, machine monitoring and industrial automation |
