The IFM I22008 SIY-2120-ABOW/LS/A-PLATE is a long-range inductive sensor designed for reliable non-contact detection of large metallic objects in industrial automation, steel processing and metal-handling applications. It features an adjustable 30–120 mm sensing range, normally-open AC output, 90–250 V AC operation, Ø164 × 68 mm PBT housing, mounting plate, 7/8" connector and IP65 protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM I22008 SIY-2120-ABOW/LS/A-PLATE is a long-range inductive sensor designed for reliable non-contact detection of large metallic objects in industrial machinery, steel processing, metal handling and factory automation applications.
The sensor provides an adjustable sensing range of 30–120 mm, with a factory setting of 120 mm and a real sensing range of 120 ± 10% mm. The sensing range can be adjusted using the integrated potentiometer, allowing the sensor to be configured according to the required detection distance.
The I22008 uses a normally-open AC output and operates from a 90–250 V AC supply at 47–63 Hz. It is designed for applications requiring long-range inductive detection and AC switching in industrial equipment.
Adjustable 30–120 mm sensing range
Factory-set sensing range of 120 mm
Real sensing range: 120 ± 10% mm
Long-range inductive detection
Normally-open output
AC electrical design
90–250 V AC operating voltage
47–63 Hz operating frequency
250 mA continuous switching current up to 50 °C
200 mA continuous switching current up to 70 °C
1.5 A peak switching current for 10 ms at 0.5 Hz
3 Hz switching frequency
Ø164 mm cylindrical housing
68 mm overall housing length
Mounting plate included
Non-flush mounting
PBT housing
Anodised aluminium mounting plate
7/8" connector
Yellow switching-status LED
IP65 protection rating
-20 °C to +70 °C ambient temperature
Suitable for large metallic target detection
Suitable for steel and metal processing applications
Suitable for material-handling equipment
Suitable for industrial automation
The I22008 is designed for long-distance detection of metallic objects where standard short-range proximity sensors may not provide sufficient sensing distance. Its adjustable 30–120 mm detection range makes it suitable for detecting large metal components, machine parts and moving metallic objects from a greater distance.
The integrated potentiometer allows the sensing range to be adjusted according to the application. The factory setting is 120 mm, while the real sensing range is specified as 120 ± 10% mm. This provides flexibility when the sensor is installed at different distances from the target.
The sensor uses a normally-open AC switching output. The continuous switching current is specified as 250 mA at temperatures up to 50 °C and 200 mA at temperatures up to 70 °C. A peak current of 1.5 A for 10 ms at 0.5 Hz is also specified.

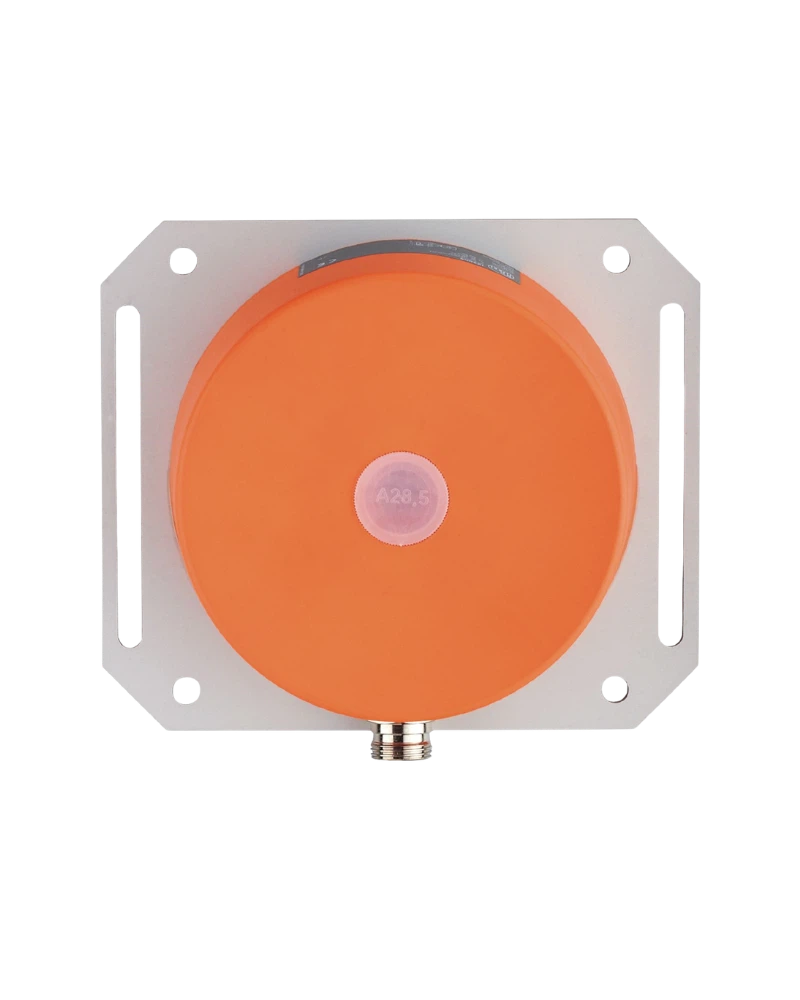

The I22008 features a large Ø164 mm cylindrical housing with a 68 mm length and is supplied with a mounting plate. Its non-flush mounting arrangement is intended for long-range sensing applications involving large metallic targets.
The housing is manufactured from PBT, while the mounting plate is made from anodised aluminium. The sensor uses a 7/8" connector for electrical connection to compatible industrial cabling and control equipment.
A yellow LED provides switching-status indication, helping operators and maintenance personnel identify the sensor's operating state during installation, commissioning and troubleshooting.
The I22008 provides IP65 protection and operates over an ambient temperature range of -20 °C to +70 °C, supporting use in a range of industrial environments.
The I22008 is suitable for Industrial Automation UAE applications requiring long-range detection of metallic objects.
Large metal object detection
Steel processing equipment
Metal handling machinery
Machine position detection
Conveyor monitoring
Metal component detection
Production machinery
Material handling systems
Industrial equipment monitoring
Factory automation
For Industrial automation companies in UAE, Industrial automation companies UAE and businesses developing Industrial automation systems in UAE, the I22008 provides a specialised long-range inductive sensing solution.
The I22008 is an Industrial Sensor designed for long-range non-contact detection of metallic targets. It can form part of an Industrial Sensors Supplier UAE product range alongside Proximity Sensors, Photoelectric Sensors and other industrial sensing technologies.
For a Proximity Sensors Supplier UAE or Sensor Supplier UAE, the I22008 offers an adjustable sensing range of up to 120 mm and a normally-open AC switching output.
The I22008 can be incorporated into compatible industrial control systems where long-range metallic detection is required.
For an Industrial Automation Supplier in UAE, Industrial Automation Suppliers UAE, Automation Products Supplier UAE or Industrial Automation Equipment UAE, it provides a specialised sensing component for machine builders, manufacturing facilities and industrial automation integrators.
The sensor can also form part of Industrial Automation Components UAE and Factory Automation Components used in manufacturing, metal processing, material handling and production machinery.
The I22008 can form part of Industrial Equipment & Supplies, Industrial Equipment & Supplies in UAE, Industrial Equipment & Supplies suppliers, Industrial Equipment in UAE and Industrial Electrical Equipment portfolios.
Its extended sensing distance is particularly useful for applications involving large metallic targets where the sensor needs to remain separated from the moving or detected object.
For companies providing Industrial automation solutions in UAE, the I22008 provides a practical long-range sensing solution for large metallic components and industrial machinery.
Its adjustable 30–120 mm sensing range, normally-open AC output, 90–250 V AC supply, Ø164 × 68 mm housing, mounting plate, 7/8" connector and IP65 protection make it suitable for specialised industrial proximity-sensing applications.
| Specification | Details |
|---|---|
| Product Code | I22008 |
| Manufacturer | IFM electronic |
| Model / Part Number | SIY-2120-ABOW/LS/A-PLATE |
| Product Type | Inductive Sensor |
| Sensor Type | Long-Range Inductive Sensor |
| Electrical Design | AC |
| Output Function | Normally Open (NO) |
| Operating Voltage | 90–250 V AC |
| Operating Frequency | 47–63 Hz |
| Protection Class | I |
| Reverse Polarity Protection | No |
| Maximum Voltage Drop | < 11 V |
| Minimum Load Current | 15 mA |
| Leakage Current | < 6 mA |
| Continuous Switching Current | 200 mA |
| Continuous Current at ≤50 °C | 250 mA |
| Peak Switching Current | 1.5 A for 10 ms / 0.5 Hz |
| Switching Frequency | 3 Hz |
| Short-Circuit Protection | No |
| Overload Protection | No |
| Sensing Range | 30–120 mm |
| Adjustable Sensing Range | Yes |
| Factory Setting Sensing Range | 120 mm |
| Real Sensing Range (Sr) | 120 ± 10% mm |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.4 |
| Correction Factor – Aluminium | 0.3 |
| Correction Factor – Copper | 0.2 |
| Hysteresis | <15% of Sr |
| Switch-Point Drift | -15 to +15% of Sr |
| Housing Type | Cylindrical |
| Housing Diameter | Ø164 mm |
| Housing Length | 68 mm |
| Mounting | Non-flush mountable |
| Mounting Type | With mounting plate |
| Housing Material | PBT |
| Mounting Plate Material | Anodised aluminium |
| Electrical Connection | 7/8" connector |
| Switching Status Indication | 1 × yellow LED |
| Protection Rating | IP65 |
| Ambient Temperature | -20 °C to +70 °C |
| EMC Standard | EN 60947-5-2 |
| Weight | Approx. 1578 g |
| Pack Quantity | 1 piece |
| Typical Applications | Steel processing, metal handling, large metal object detection, material handling, machine monitoring, conveyor systems and industrial automation |
| Product Status | Phase-out article |
| Alternative Article | I22001 |
