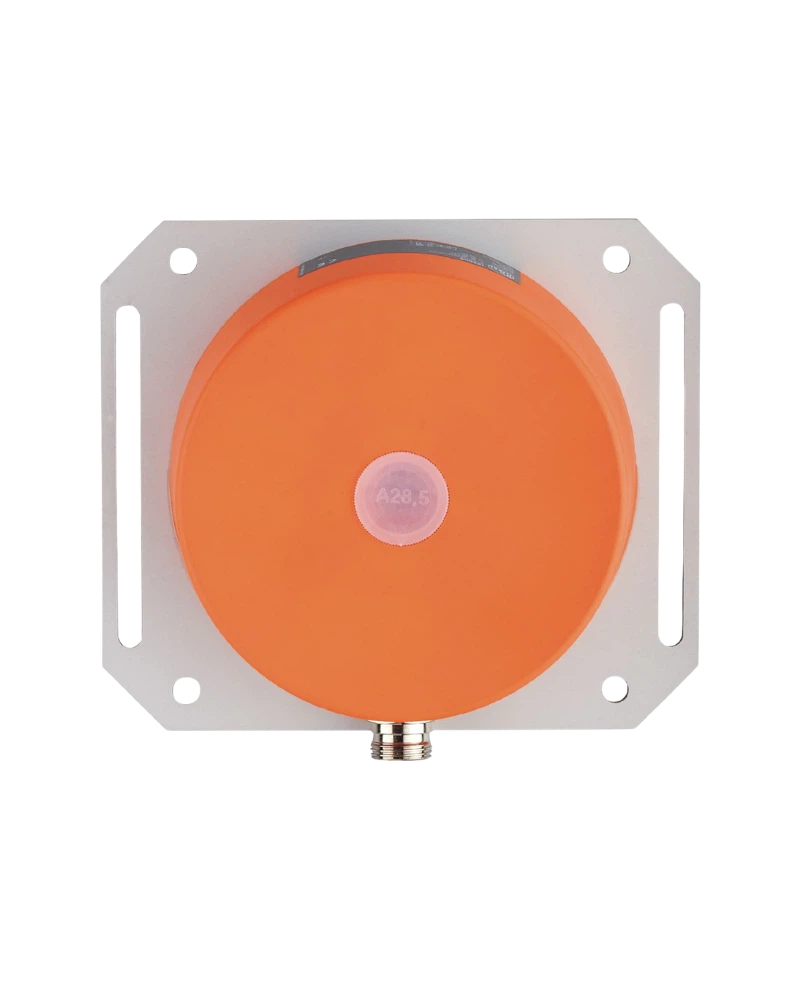

The IFM I22006 SIY-2120-ABOW/LS/A-PLATE is a long-range inductive sensor designed for reliable non-contact detection of large metallic objects in steel, metal processing and industrial automation applications. It features an adjustable 30–120 mm sensing range, normally-open AC output, 90–250 V AC operation, Ø164 mm PBT housing, mounting plate, 1 × 7/8" A-coded connector and IP65 protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM I22006 SIY-2120-ABOW/LS/A-PLATE is a long-range inductive sensor designed for reliable non-contact detection of large metallic objects in industrial machinery, steel processing, metal handling and factory automation applications.
The sensor provides an adjustable sensing range of 30–120 mm, with a factory setting of 120 mm and a real sensing range of 120 ± 10% mm. The sensing range can be conveniently adjusted using the integrated potentiometer, providing flexibility when the sensor is installed at different distances from the target.
The I22006 uses a normally-open AC output and operates from a 90–250 V AC supply at 47–63 Hz. This makes it suitable for applications where an AC switching output is required for industrial equipment and automation systems.
Adjustable 30–120 mm sensing range
Factory-set sensing range of 120 mm
Real sensing range: 120 ± 10% mm
Long-range inductive detection
Normally-open output
AC electrical design
90–250 V AC operating voltage
47–63 Hz operating frequency
200 mA continuous switching current
250 mA continuous current up to 50 °C
1.5 A peak current for 10 ms at 0.5 Hz
3 Hz switching frequency
Ø164 mm cylindrical housing
68 mm housing length
Mounting plate included
Non-flush mounting
PBT housing
Anodised aluminium mounting plate
1 × 7/8" A-coded connector
Yellow switching-status LED
IP65 protection rating
-20 °C to +70 °C ambient temperature
Suitable for steel and metal industries
Suitable for large metallic target detection
Suitable for long-range proximity sensing
Suitable for industrial automation applications
The I22006 is designed for long-distance detection of metallic objects where conventional compact proximity sensors may not provide sufficient sensing distance. Its adjustable 30–120 mm range allows the sensor to detect large metal components, machine parts and other metallic targets from a greater distance.
The integrated potentiometer provides simple adjustment of the sensing range. The factory setting is 120 mm, allowing the sensor to be configured according to the requirements of the particular machine or detection application.
The sensor uses a normally-open AC switching output with a maximum permanent current rating of 250 mA at temperatures up to 50 °C and 200 mA at temperatures up to 70 °C. A peak current of 1.5 A for 10 ms at 0.5 Hz is also specified.
The I22006 features a large Ø164 mm cylindrical housing with a length of 68 mm and is supplied with a mounting plate. Its non-flush mounting configuration is intended for long-range sensing applications and provides a practical installation arrangement for large-area metallic detection.
The housing is manufactured from PBT, while the mounting plate is made from anodised aluminium. The sensor uses a 1 × 7/8" A-coded connector, providing a detachable electrical connection for industrial installation.
A yellow LED switching-status indicator provides visual feedback of the sensor's switching state, supporting installation, commissioning and maintenance activities.
The I22006 provides IP65 protection and operates over an ambient temperature range of -20 °C to +70 °C, supporting use in a variety of industrial environments.
The I22006 is suitable for Industrial Automation UAE applications requiring long-range detection of metallic objects.
Large metal object detection
Steel processing equipment
Metal handling machinery
Machine position detection
Conveyor monitoring
Metal component detection
Production machinery
Material handling systems
Industrial equipment monitoring
Factory automation
For Industrial automation companies in UAE, Industrial automation companies UAE and businesses developing Industrial automation systems in UAE, the I22006 provides a specialised long-range inductive sensing solution.
The I22006 is an Industrial Sensor designed for long-range non-contact detection of metallic targets. It can form part of an Industrial Sensors Supplier UAE product range alongside Proximity Sensors, Photoelectric Sensors and other industrial sensing products.
For a Proximity Sensors Supplier UAE or Sensor Supplier UAE, the I22006 provides an extended adjustable sensing range of up to 120 mm and an AC normally-open output.
The I22006 can be incorporated into compatible industrial control systems and automation equipment where long-range metallic detection is required.
For an Industrial Automation Supplier in UAE, Industrial Automation Suppliers UAE, Automation Products Supplier UAE or Industrial Automation Equipment UAE, it provides a specialised sensing component for machine builders, manufacturing facilities and industrial automation applications.
The sensor can also form part of Industrial Automation Components UAE and Factory Automation Components used in steel processing, material handling and production machinery.
The I22006 can form part of Industrial Equipment & Supplies, Industrial Equipment & Supplies in UAE, Industrial Equipment & Supplies suppliers, Industrial Equipment in UAE and Industrial Electrical Equipment portfolios.
Its long sensing range makes it particularly suitable for applications involving large metallic targets where the sensor needs to be positioned away from the moving or detected object.
For companies providing Industrial automation solutions in UAE, the I22006 offers a practical long-range sensing solution for large metallic components and industrial machinery.
Its adjustable 30–120 mm sensing range, normally-open AC output, 90–250 V AC supply, Ø164 mm housing, mounting plate, A-coded 7/8" connector and IP65 protection make it suitable for specialised industrial proximity-sensing applications.
| Specification | Details |
|---|---|
| Product Code | I22006 |
| Manufacturer | IFM electronic |
| Model / Part Number | SIY-2120-ABOW/LS/A-PLATE |
| Product Type | Inductive Sensor |
| Sensor Type | Long-Range Inductive Sensor |
| Electrical Design | AC |
| Output Function | Normally Open (NO) |
| Operating Voltage | 90–250 V AC |
| Operating Frequency | 47–63 Hz |
| Protection Class | I |
| Reverse Polarity Protection | No |
| Maximum Voltage Drop | < 11 V |
| Minimum Load Current | 15 mA |
| Maximum Leakage Current | < 6 mA |
| Permanent Switching Current | 200 mA |
| Permanent Switching Current at ≤50 °C | 250 mA |
| Peak Switching Current | 1.5 A for 10 ms / 0.5 Hz |
| Switching Frequency | 3 Hz |
| Short-Circuit Protection | No |
| Overload Protection | No |
| Sensing Range | 30–120 mm |
| Adjustable Sensing Range | Yes |
| Factory Setting Sensing Range | 120 mm |
| Real Sensing Range (Sr) | 120 ± 10% mm |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.4 |
| Correction Factor – Aluminium | 0.3 |
| Correction Factor – Copper | 0.2 |
| Hysteresis | <15% of Sr |
| Switch-Point Drift | -15 to +15% of Sr |
| Housing Type | Cylindrical |
| Housing Diameter | Ø164 mm |
| Housing Length | 68 mm |
| Mounting | Non-flush mountable |
| Mounting Type | With mounting plate |
| Housing Material | PBT |
| Mounting Plate Material | Anodised aluminium |
| Electrical Connection | 1 × 7/8" connector |
| Connector Coding | A-coded |
| Switching Status Indication | 1 × yellow LED |
| Protection Rating | IP65 |
| Ambient Temperature | -20 °C to +70 °C |
| EMC Standard | EN 60947-5-2 |
| Required Fuse Protection | ≤2 A fast-acting miniature fuse |
| Weight | Approx. 1588 g |
| Pack Quantity | 1 piece |
| Typical Applications | Steel industry, metal processing, large metal object detection, material handling, machine monitoring and industrial automation |
| Product Status | Phase-out article |
| Discontinuation Date | 31 March 2026 |
| Alternative Article | I22001 |
