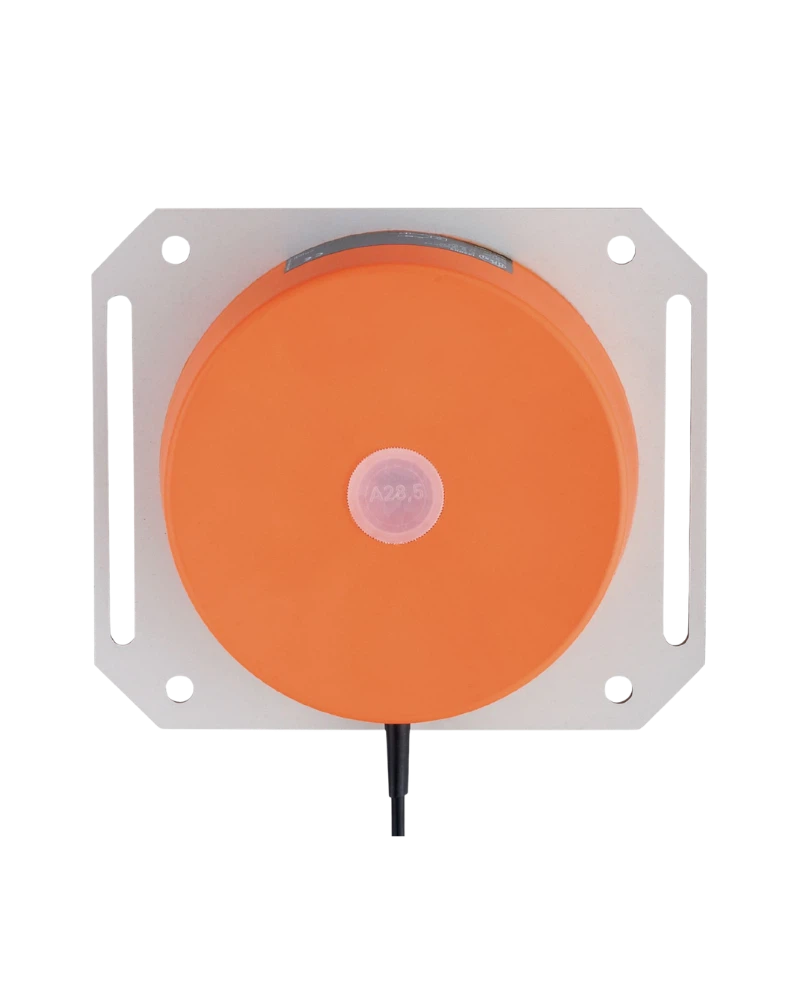

The IFM I22003 SIY-2120-ABOW/A-PLATE is a long-range inductive area sensor designed for reliable non-contact detection of large metallic objects in industrial automation and metal-handling applications. It features an adjustable 30–120 mm sensing range, normally-open AC output, 90–250 V AC operation, Ø164 mm PBT housing, mounting plate, 2 m PVC cable and IP65 protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM I22003 SIY-2120-ABOW/A-PLATE is a long-range inductive area sensor designed for reliable non-contact detection of large metallic objects in industrial machinery, metal processing, material handling and factory automation applications.
Unlike compact proximity sensors designed for short detection distances, the I22003 provides a long adjustable sensing range of 30–120 mm. The factory setting is 120 mm, while the sensing range can be adjusted using the integrated potentiometer. This makes the sensor suitable for applications where metallic objects need to be detected from a greater distance.
The sensor uses a normally-open AC output and operates from a 90–250 V AC supply at 47–63 Hz. Its AC switching output is designed for applications requiring direct switching of suitable loads within the specified electrical ratings.
Adjustable 30–120 mm sensing range
Factory-set sensing range of 120 mm
Real sensing range: 120 ± 10% mm
Long-range inductive detection
Normally-open output
AC electrical design
90–250 V AC operating voltage
47–63 Hz operating frequency
200 mA continuous switching current up to 70 °C
250 mA continuous switching current up to 50 °C
1.5 A peak current for 10 ms at 0.5 Hz
3 Hz switching frequency
Ø164 mm cylindrical sensor housing
Mounting plate included
Non-flush mounting
PBT plastic housing
Anodised aluminium mounting plate
2 m PVC cable
2 × 0.5 mm² cable construction
Yellow switching-status LED
IP65 protection rating
-20 °C to +70 °C ambient temperature
Suitable for large metallic target detection
Suitable for metal-handling applications
Suitable for industrial automation
Suitable for long-range proximity sensing
The I22003 is designed for long-distance detection of metallic objects where conventional short-range proximity sensors may not provide sufficient sensing distance. Its adjustable 30–120 mm detection zone provides flexibility when positioning the sensor around large machinery, metal components and material-handling equipment.
The integrated potentiometer allows the sensing range to be adjusted according to the application. The factory setting is 120 mm, while the real sensing range at the factory setting is specified as 120 ± 10% mm.
The sensor operates with a normally-open AC switching output. It supports a continuous switching current of up to 250 mA at temperatures up to 50 °C, reducing to 200 mA at temperatures up to 70 °C. A peak current of 1.5 A for 10 ms at 0.5 Hz is also specified.
The I22003 has a Ø164 mm cylindrical housing and is supplied with a mounting plate. Its non-flush installation arrangement is designed for long-range sensing and provides a practical mounting solution for large-area detection applications.
The housing is manufactured from PBT, while the mounting plate is made from anodised aluminium. The sensor is supplied with a 2 m PVC cable with 2 × 0.5 mm² conductors.
A yellow LED provides switching-status indication, helping operators and maintenance personnel identify the sensor output state during installation, commissioning and operation.
The I22003 provides IP65 protection and operates within an ambient temperature range of -20 °C to +70 °C, making it suitable for a range of industrial environments.
The I22003 is suitable for Industrial Automation UAE applications requiring long-range detection of metallic objects.
Typical applications include:
Large metal object detection
Metal position detection
Steel and metal processing equipment
Material-handling machinery
Conveyor monitoring
Machine position feedback
Metal component detection
Production machinery
Industrial equipment monitoring
Factory automation
For Industrial automation companies in UAE, Industrial automation companies UAE and businesses developing Industrial automation systems in UAE, the I22003 provides a long-range inductive sensing solution for machine monitoring and process automation.
The I22003 is an Industrial Sensor designed for long-range non-contact detection of metallic targets. It can form part of an Industrial Sensors Supplier UAE product range alongside Proximity Sensors, Photoelectric Sensors and other industrial sensing technologies.
For a Proximity Sensors Supplier UAE or Sensor Supplier UAE, the I22003 offers an extended sensing distance of up to 120 mm with adjustable detection range.
The I22003 can be incorporated into compatible industrial control and automation systems for detecting the presence or position of large metallic objects.
For an Industrial Automation Supplier in UAE, Industrial Automation Suppliers UAE, Automation Products Supplier UAE or Industrial Automation Equipment UAE, it provides a specialised long-range sensing component for machine builders and industrial automation applications.
The sensor can also form part of Industrial Automation Components UAE and Factory Automation Components used in manufacturing, material handling and metal-processing systems.
The I22003 can form part of Industrial Equipment & Supplies, Industrial Equipment & Supplies in UAE, Industrial Equipment & Supplies suppliers, Industrial Equipment in UAE and Industrial Electrical Equipment portfolios.
Its long sensing distance makes it particularly useful for applications involving large metallic targets, where the sensor must be positioned away from the moving or detected object.
For companies providing Industrial automation solutions in UAE, the I22003 provides a practical long-range inductive detection solution for large metallic components and industrial machinery.
Its adjustable 30–120 mm sensing range, normally-open AC output, 90–250 V AC supply, large Ø164 mm housing, mounting plate, 2 m PVC cable and IP65 protection make it suitable for specialised industrial proximity-sensing applications.
| Specification | Details |
|---|---|
| Product Code | I22003 |
| Manufacturer | IFM electronic |
| Model / Part Number | SIY-2120-ABOW/A-PLATE |
| Product Type | Inductive Area Sensor |
| Sensor Type | Long-Range Inductive Sensor |
| Electrical Design | AC |
| Output Function | Normally Open (NO) |
| Operating Voltage | 90–250 V AC |
| Operating Frequency | 47–63 Hz |
| Protection Class | II |
| Reverse Polarity Protection | No |
| Voltage Drop | < 11 V |
| Minimum Load Current | 15 mA |
| Leakage Current | < 6 mA |
| Continuous Switching Current | 250 mA at ≤50 °C |
| Continuous Switching Current | 200 mA at ≤70 °C |
| Peak Switching Current | 1.5 A for 10 ms / 0.5 Hz |
| Switching Frequency | 3 Hz |
| Short-Circuit Protection | No |
| Overload Protection | No |
| Sensing Range | 30–120 mm |
| Adjustable Sensing Range | Yes |
| Factory Setting | 120 mm |
| Real Sensing Range (Sr) | 120 ± 10% mm |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.4 |
| Correction Factor – Aluminium | 0.3 |
| Correction Factor – Copper | 0.2 |
| Hysteresis | <15% of Sr |
| Switch-Point Drift | -15 to +15% of Sr |
| Housing Type | Cylindrical |
| Housing Diameter | Ø164 mm |
| Housing Length | 68 mm |
| Mounting | Non-flush mountable |
| Mounting Type | With mounting plate |
| Housing Material | PBT |
| Mounting Plate Material | Anodised aluminium |
| Connection | 2 m PVC cable |
| Cable Construction | 2 × 0.5 mm² |
| Switching Status Indication | 1 × yellow LED |
| Protection Rating | IP65 |
| Ambient Temperature | -20 °C to +70 °C |
| EMC Standard | EN 60947-5-2 |
| Required Fuse Protection | ≤2 A fast-acting miniature fuse |
| Weight | Approx. 1.629 kg |
| Pack Quantity | 1 piece |
| Typical Applications | Large metal object detection, metal processing, material handling, machine monitoring, conveyor systems and industrial automation |
