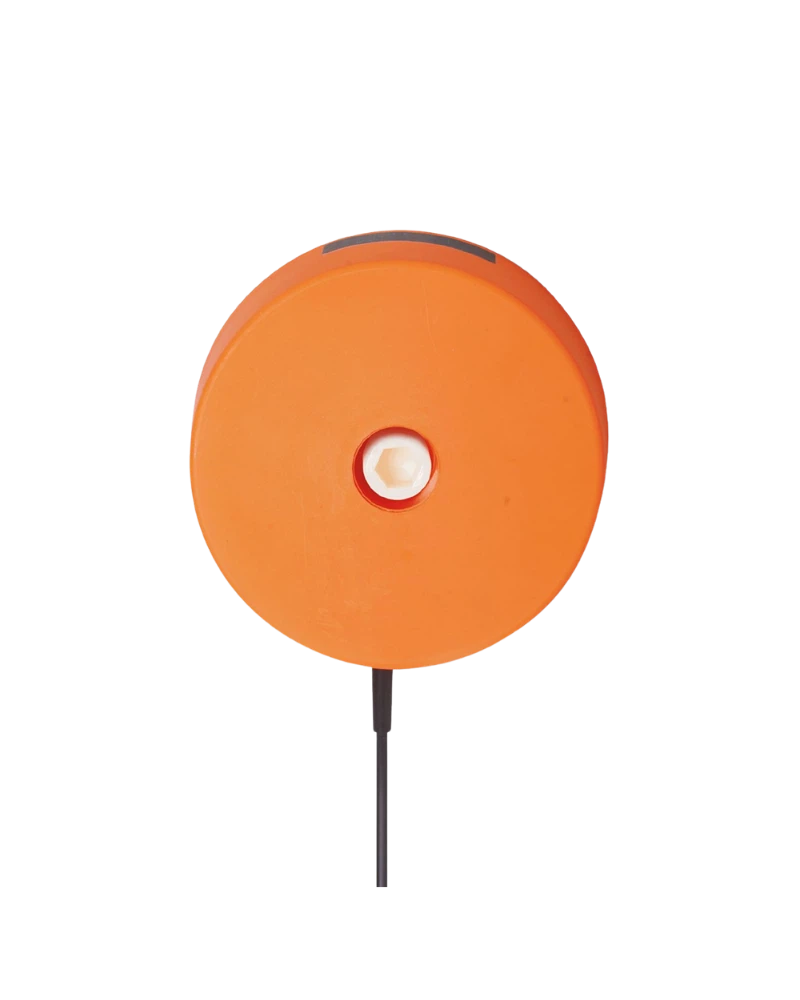

The I22002 is a long-range inductive area sensor designed for reliable detection of metallic objects in industrial environments. It provides a sensing range of 30 to 120 mm and uses a large Ø164 mm sensing surface. The sensor features a normally closed output for suitable industrial detection applications. It is well suited for steel, metal processing and automated material handling systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The I22002 is designed for reliable non-contact detection of metallic objects over a longer sensing distance. Its 30 to 120 mm adjustable sensing range provides flexibility for different industrial detection requirements.
The sensor uses a cylindrical housing with a Ø164 mm active area, making it suitable for applications that require detection across a larger sensing region. This design is useful in material handling and metal-processing applications.
The I22002 uses a normally closed output configuration, making it suitable for applications where the switching behaviour is required in this arrangement. It operates with AC supply and provides a practical solution for industrial control systems.
The sensor is designed for non-flush mounting and provides IP65 protection. Its industrial construction makes it suitable for continuous detection tasks in manufacturing and metal-processing environments.
Long sensing range up to 120 mm
Adjustable sensing range
Large Ø164 mm sensing area
Normally closed output
AC electrical design
Non-contact metal detection
IP65 protection
Suitable for industrial metal applications
Suitable for steel industries, metal processing, material handling, industrial automation, conveyor systems, production machinery, metal object detection and automated manufacturing processes.
| Specification | Details |
|---|---|
| Product Type | Inductive area sensor |
| Model | I22002 |
| Type | SIY-2120-BBOW |
| Sensing Range | 30...120 mm |
| Adjustable Range | Yes |
| Factory Setting | 120 mm |
| Real Sensing Range | 120 ± 10% |
| Output Function | Normally closed |
| Electrical Design | AC |
| Operating Voltage | 90...250 V AC |
| Frequency | 47...63 Hz |
| Switching Frequency | 3 Hz |
| Housing | Cylindrical |
| Dimensions | Ø164 / L = 63 mm |
| Mounting | Non-flush |
| Housing Material | PBT |
| Bottom Cover | Aluminium |
| Connection | 2 m PVC cable, 2 x 0.5 mm² |
| Protection Rating | IP65 |
| Ambient Temperature | -20...70 °C |
| Display | Yellow LED |
| Weight | Approx. 1231 g |
