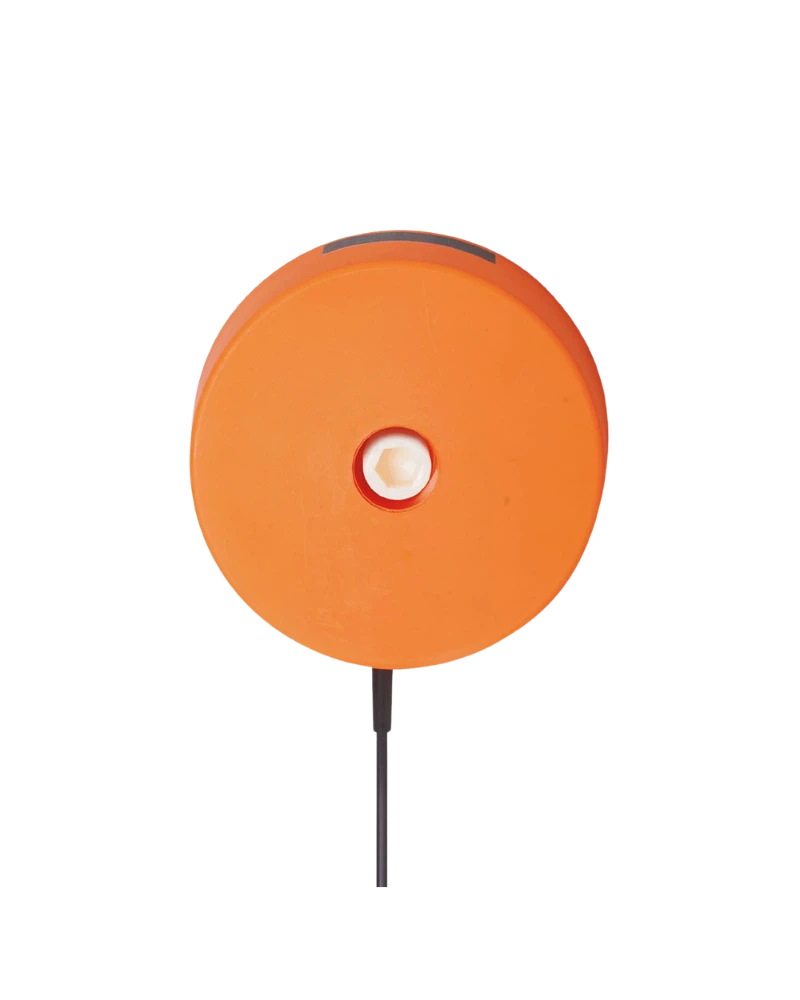

The I22001 is a long-range inductive area sensor designed for reliable detection of metallic objects in industrial applications. It provides a sensing range of 30 to 120 mm with an active base of 164 mm diameter. The sensing range can be adjusted using the integrated potentiometer. It is particularly suitable for steel and metal industry applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The I22001 is designed for applications that require a longer sensing distance than conventional inductive sensors. Its adjustable 30 to 120 mm sensing range provides flexibility for different metal detection requirements.
The sensor features an active base with a diameter of 164 mm, allowing reliable detection across a larger sensing area. This makes it suitable for industrial processes where larger metal objects or moving material need to be detected.
The sensing range can be adjusted using the integrated potentiometer. This allows the sensor to be configured according to the specific detection distance required by the application.
The I22001 is specifically suited to applications in the steel and metal industries. Its AC output allows connection to AC power systems, while the IP65 protection supports use in industrial environments.
Long sensing range up to 120 mm
Adjustable sensing range
Large Ø164 mm active base
AC output configuration
Non-contact metal detection
Suitable for steel and metal industries
Integrated potentiometer for adjustment
IP65 protection
Suitable for steel industries, metal processing, material handling, industrial automation, metal object detection, production machinery, conveyor systems and applications requiring long-range inductive sensing.
| Specification | Details |
|---|---|
| Product Type | Inductive area sensor |
| Model | I22001 |
| Type | SIY-2120-ABOW |
| Sensing Range | 30...120 mm |
| Adjustable Range | Yes |
| Factory Setting | 120 mm |
| Real Sensing Range | 120 ± 10% |
| Output Function | Normally open |
| Electrical Design | AC |
| Operating Voltage | 90...250 V AC |
| Frequency | 47...63 Hz |
| Switching Frequency | 3 Hz |
| Housing | Cylindrical |
| Dimensions | Ø164 / L = 63 mm |
| Mounting | Non-flush |
| Housing Material | PBT |
| Bottom Cover | Aluminium |
| Connection | 2 m PVC cable, 2 x 0.5 mm² |
| Protection Rating | IP65 |
| Ambient Temperature | -20...70 °C |
| Display | Yellow LED |
| Weight | 1231.5 g |
