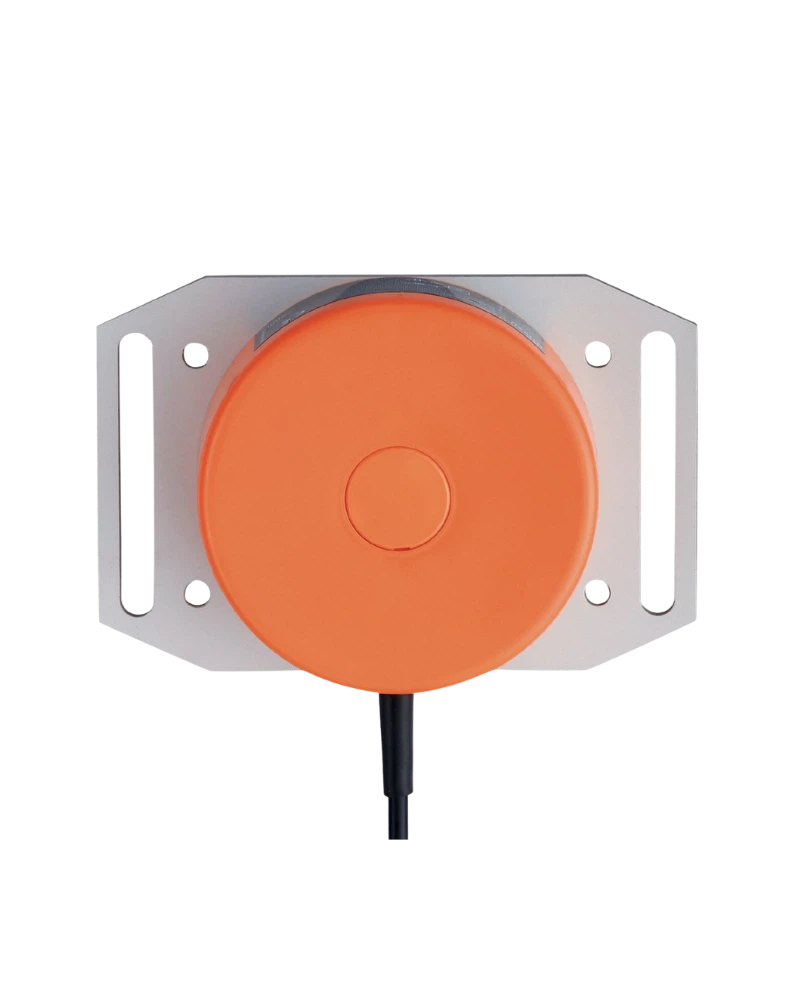

The I7004 inductive area sensor provides dependable non-contact detection of metallic objects in industrial automation systems. Its SIT-3070-ANKG/A-PLATE configuration supports practical installation in automated machinery. The sensor is designed for stable detection during production and material handling processes. It is suitable for continuous industrial monitoring applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The I7004 uses inductive sensing technology to identify metallic objects without physical contact. This provides a dependable solution for automated detection and machine monitoring applications.
The A-PLATE configuration supports convenient installation and integration into industrial machinery. It can be positioned within production equipment according to the required sensing arrangement.
The sensor can support automated object presence detection and monitoring tasks. It is suitable for systems where consistent detection of metallic components contributes to reliable machine operation.
Reliable non-contact sensing
Inductive area detection
A-PLATE mounting design
Suitable for industrial machinery
Stable object detection
Suitable for automated processes
Suitable for industrial automation, machine tools, production lines, conveyor systems, material handling equipment, metal processing and automated machinery.
| Specification | Details |
|---|---|
| Product Type | Inductive area sensor |
| Model | I17004 |
| Type | SIT-3070-ANKG/A-PLATE |
| Electrical Design | DC NPN |
| Output Function | Normally open |
| Operating Voltage | 10...36 V DC |
| Sensing Range | 20...70 mm |
| Factory Setting | 70 mm |
| Real Sensing Range | 70 ± 10% |
| Housing | Cylindrical |
| Dimensions | Ø100 / L = 45 mm |
| Mounting | Non-flush with mounting plate |
| Material | PBT, anodized aluminium |
| Switching Frequency | 5 Hz |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Protection Rating | IP65 |
| Ambient Temperature | -20...70 °C |
| Connection | 2 m PVC cable, 3 x 0.5 mm² |
| Display | Yellow LED |
| Weight | 685.5 g |
