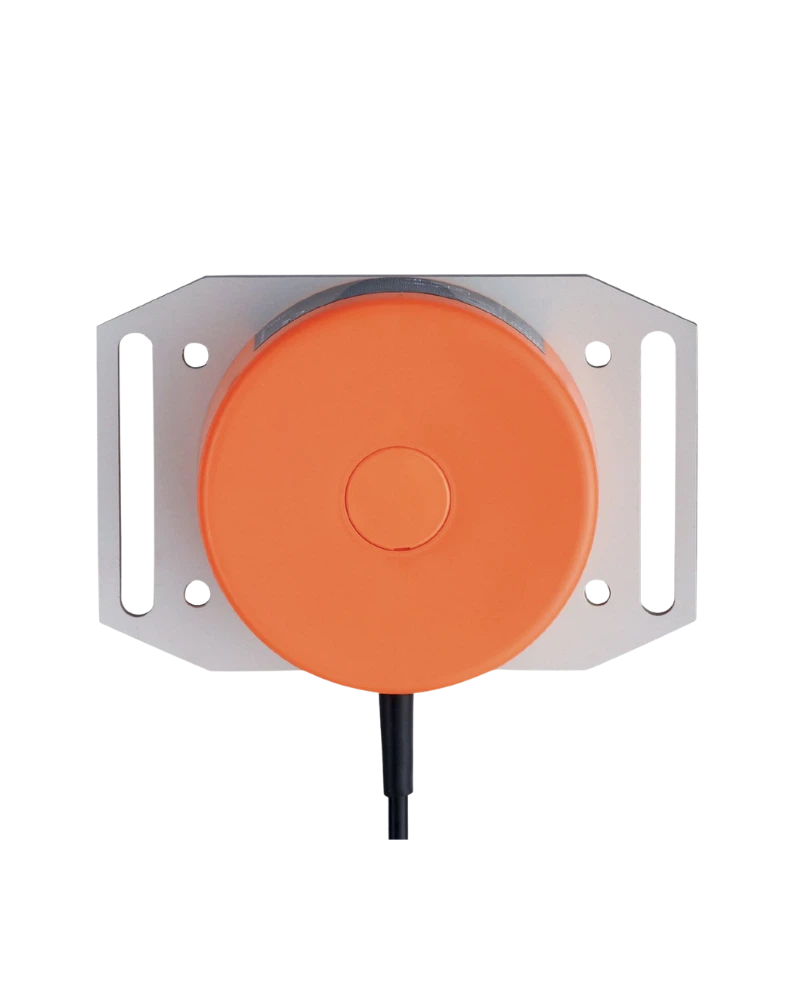

The I7003 inductive area sensor is designed for reliable detection of metallic objects in automated industrial environments. Its SIT-3070-BPKG/A-PLATE configuration provides convenient integration and mounting for machinery. The sensor supports dependable non-contact object detection during continuous operation. It is suitable for production, material handling and automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The I7003 provides non-contact detection of metallic objects using inductive sensing technology. Its area sensing capability makes it suitable for applications requiring dependable detection within a defined sensing region.
The A-PLATE configuration provides a convenient mounting arrangement for integration into industrial equipment. This allows the sensor to be positioned according to the requirements of the machine or production system.
The sensor can support automated presence detection and process monitoring. It is suitable for production equipment where reliable detection of metallic components is important for machine operation.
Reliable inductive area sensing
Non-contact metal detection
A-PLATE mounting configuration
Suitable for automated machinery
Stable detection performance
Suitable for industrial production systems
Suitable for factory automation, machine tools, material handling, conveyor systems, production lines, metal processing and automated manufacturing.
| Specification | Details |
|---|---|
| Product Type | Inductive area sensor |
| Model | I17003 |
| Type | SIT-3070-BPKG/A-PLATE |
| Electrical Design | DC PNP |
| Output Function | Normally open |
| Operating Voltage | 10...36 V DC |
| Sensing Range | 20...70 mm |
| Factory Setting | 70 mm |
| Real Sensing Range | 70 ± 10% |
| Housing | Cylindrical |
| Dimensions | Ø100 / L = 45 mm |
| Mounting | Non-flush with mounting plate |
| Material | PBT, anodized aluminium |
| Switching Frequency | 5 Hz |
| Protection Rating | IP65 |
| Ambient Temperature | -20...70 °C |
| Display | Yellow LED |
