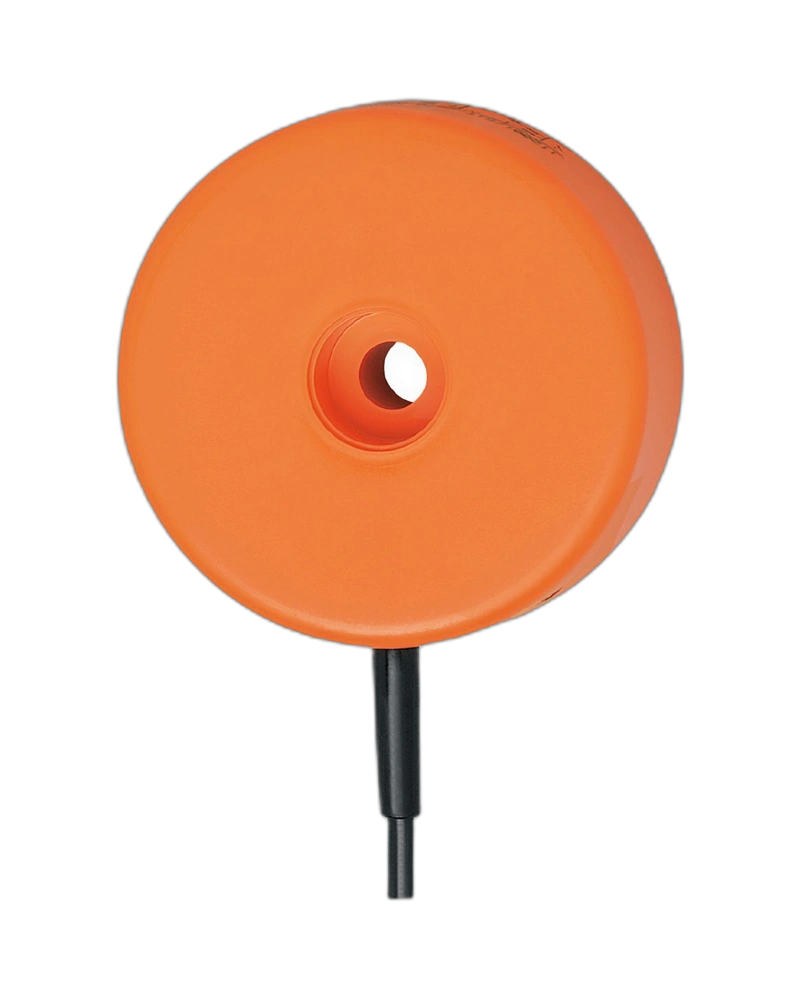

The I2006 inductive area sensor provides reliable non-contact detection of metallic objects for industrial automation applications. Its area sensing configuration supports dependable detection across the active sensing surface. The sensor is designed for integration into machinery and automated production systems. It is suitable for material handling and metal detection applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The I2006 is designed to detect metallic targets without physical contact. Its area sensing principle provides dependable detection for applications where reliable monitoring of moving metal objects is required.
The SIT-2070-ABOW-1 configuration allows the sensor to be incorporated into automated machinery and production equipment. It can be used for monitoring objects moving through defined detection areas.
The sensor supports stable operation in industrial automation environments. It can help improve process monitoring by providing dependable detection during automated material handling and production operations.
Reliable inductive area sensing
Non-contact metallic object detection
Suitable for automated machinery
Stable detection performance
Practical industrial installation
Suitable for material handling systems
Suitable for material handling, conveyor systems, production lines, industrial automation, metal detection, machine monitoring and automated manufacturing equipment.
| Specification | Details |
|---|---|
| Product Type | Inductive area sensor |
| Model | I12006 |
| Type | SIT-2070-ABOW-1 |
| Sensing Range | 20...70 mm |
| Adjustable Range | Yes |
| Factory Setting | 70 mm |
| Real Sensing Range | 70 ± 10% |
| Output Function | Normally open |
| Electrical Design | AC |
| Operating Voltage | 90...250 V AC |
| Frequency | 47...63 Hz |
| Switching Frequency | 5 Hz |
| Housing | Cylindrical |
| Dimensions | Ø100 / L = 40 mm |
| Mounting | Non-flush |
| Protection Rating | IP65 |
| Ambient Temperature | -20...70 °C |
| Display | Yellow LED |
