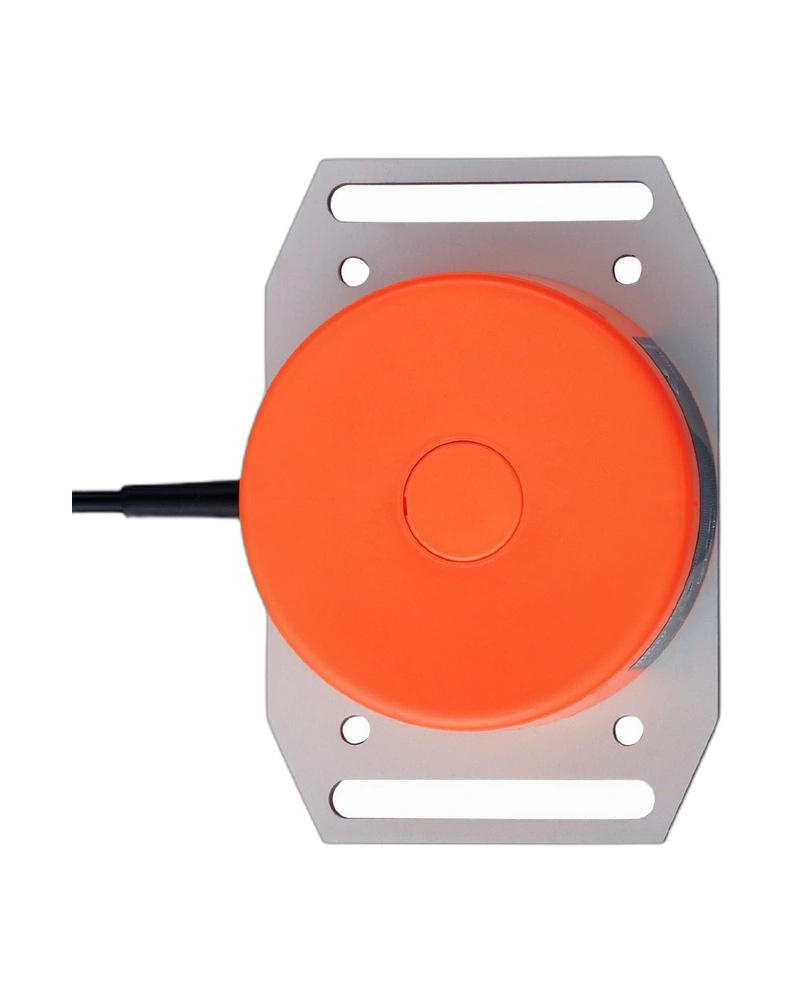

The I2004 inductive sensor is designed for dependable non-contact detection of metallic objects in industrial environments. Its SIT-2070-ABOW/A-PLATE configuration supports practical integration into automated machinery. The sensor provides stable detection for production and material handling applications. It is suitable for continuous industrial automation processes.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The I2004 uses inductive sensing technology to detect metallic objects without direct contact. This helps reduce mechanical wear and provides reliable detection for automated industrial processes.
The A-PLATE configuration supports convenient installation in machinery and production equipment. Its industrial design allows the sensor to be incorporated into different machine layouts where reliable object detection is required.
The sensor is suitable for continuous operation in automated environments. It can support reliable object monitoring and position detection in production and material handling systems.
Reliable non-contact metal detection
Stable inductive sensing performance
A-PLATE mounting configuration
Suitable for industrial machinery
Low mechanical wear
Suitable for automated production systems
Suitable for factory automation, material handling, conveyor systems, production machinery, metal detection, machine monitoring and automated manufacturing applications.
| Specification | Details |
|---|---|
| Product Type | Inductive sensor |
| Model | I12004 |
| Type | SIT-2070-ABOW/A-PLATE |
| Sensing Range | 20...70 mm |
| Factory Setting | 70 mm |
| Real Sensing Range | 70 ± 10% |
| Output Function | Normally open |
| Electrical Design | AC |
| Operating Voltage | 90...250 V AC |
| Frequency | 47...63 Hz |
| Switching Frequency | 5 Hz |
| Housing | Cylindrical |
| Dimensions | Ø100 / L = 45 mm |
| Mounting | Non-flush, with mounting plate |
| Material | PBT, anodized aluminium |
| Connection | 2 m PVC cable, 2 x 0.5 mm² |
| Protection Rating | IP65 |
| Ambient Temperature | -20...70 °C |
| Display | Yellow LED |
| Weight | 676 g |
