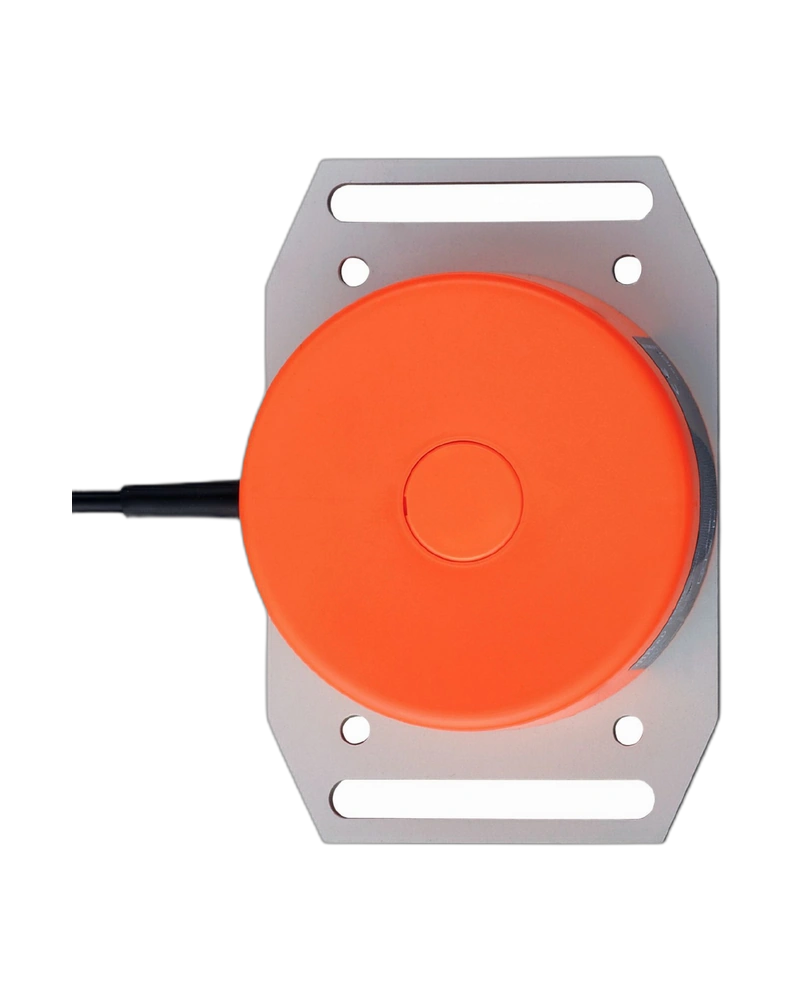

The I2003 inductive area sensor is designed for reliable non-contact detection of metallic objects in industrial automation systems. Its area sensing design provides consistent detection across a wider sensing surface. The A-PLATE configuration supports convenient mounting and installation. It is suitable for metal processing, material handling and automated production applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The I2003 is designed to detect metallic objects without physical contact, making it suitable for industrial automation and production environments. Its inductive sensing principle provides dependable object detection while reducing mechanical wear.
The SIT-2070-ABOW/A-PLATE configuration provides a practical solution for applications where a stable mounting arrangement is required. The sensor can be integrated into machinery, material handling systems and automated production equipment.
The sensor is suitable for continuous industrial operation and helps maintain consistent detection during automated processes. Its area sensing design makes it useful for applications where conventional point sensors may not provide sufficient detection coverage.
Reliable non-contact metal detection
Area sensing design for wider detection coverage
A-PLATE mounting configuration
Suitable for industrial automation
Consistent detection of metallic objects
Suitable for continuous machine operation
Suitable for industrial automation, metal processing, material handling, conveyor systems, machine tools, production lines, object detection and automated manufacturing equipment.
| Specification | Details |
|---|---|
| Product Type | Inductive area sensor |
| Model | I12003 |
| Type | SIT-2070-ABOW/A-PLATE |
| Sensing Range | 20...70 mm |
| Adjustable Sensing Range | Yes |
| Factory Setting | 70 mm |
| Real Sensing Range | 70 ± 10% |
| Output Function | Normally open |
| Electrical Design | AC |
| Operating Voltage | 90...250 V AC |
| Frequency | 47...63 Hz |
| Switching Frequency | 5 Hz |
| Housing | Cylindrical |
| Dimensions | Ø100 / L = 45 mm |
| Mounting | Non-flush with mounting plate |
| Material | PBT, anodized aluminium |
| Connection | 2 m PVC cable, 2 x 0.5 mm² |
| Protection Rating | IP65 |
| Ambient Temperature | -20...70 °C |
| Display | 1 x yellow LED |
| Weight | 678 g |
