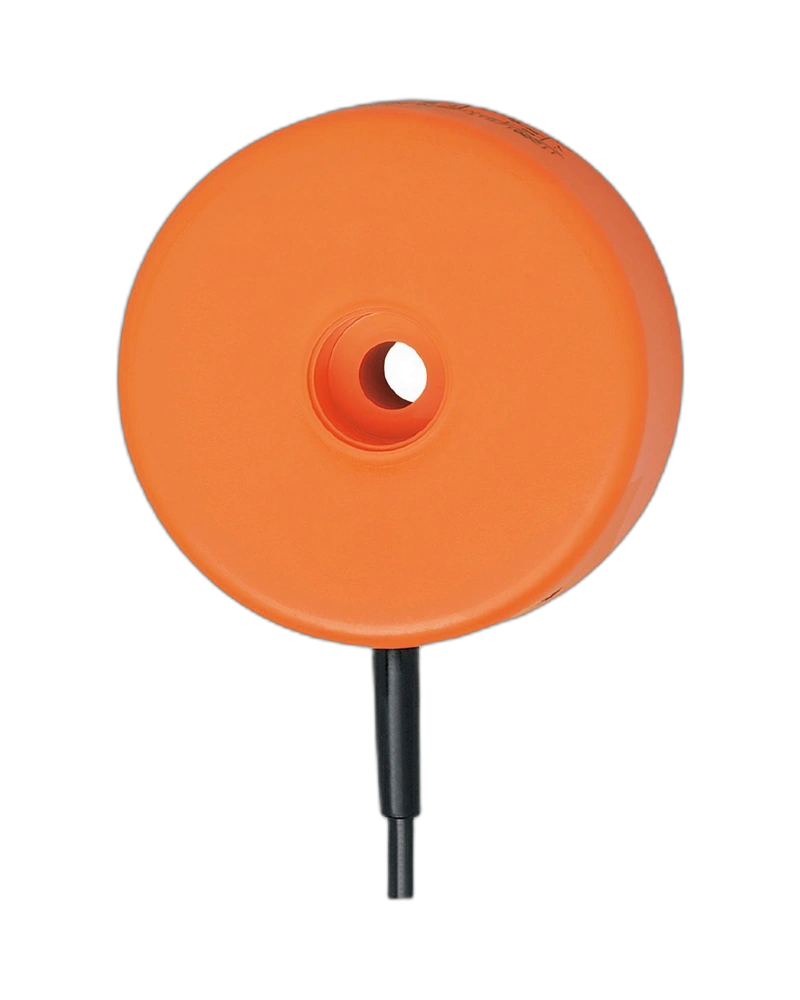

The I12001 is an inductive area sensor designed for long-range detection of metal objects.
It provides an adjustable sensing range of 20...70 mm for flexible industrial applications.
Its large Ø100 mm active area supports reliable detection in metal-processing environments.
The sensor uses an AC output and is suitable for non-flush mounting.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The I12001 is designed for reliable detection of metallic objects where a longer sensing range is required. Its large active sensing surface and adjustable detection range make it suitable for industrial applications involving steel and metal materials.
The sensor features a cylindrical housing, AC output and a 2 m PVC cable connection. Its adjustable sensing range allows users to adapt detection performance according to application requirements.
Long sensing range up to 70 mm
Adjustable sensing range
Large Ø100 mm active area
Normally open output
AC electrical design
2 m PVC cable
IP65 protection
Non-flush mounting
Suitable for steel and metal industries, material handling, machine automation, metal detection, production equipment and industrial object detection.
| Specification | Details |
|---|---|
| Product Type | Inductive area sensor |
| Model | I12001 |
| Type | SIT-2070-ABOW |
| Sensing Range | 20...70 mm |
| Sensing Range Adjustable | Yes |
| Housing | Cylindrical |
| Dimensions | Ø100 / L = 40 mm |
| Output Function | Normally open |
| Electrical Design | AC |
| Operating Voltage | 90...250 V AC |
| Frequency | 47...63 Hz |
| Connection | 2 m PVC cable |
| Protection Rating | IP65 |
| Switching Frequency | 5 Hz |
| Ambient Temperature | -20...70 °C |
| Mounting | Non-flush |
