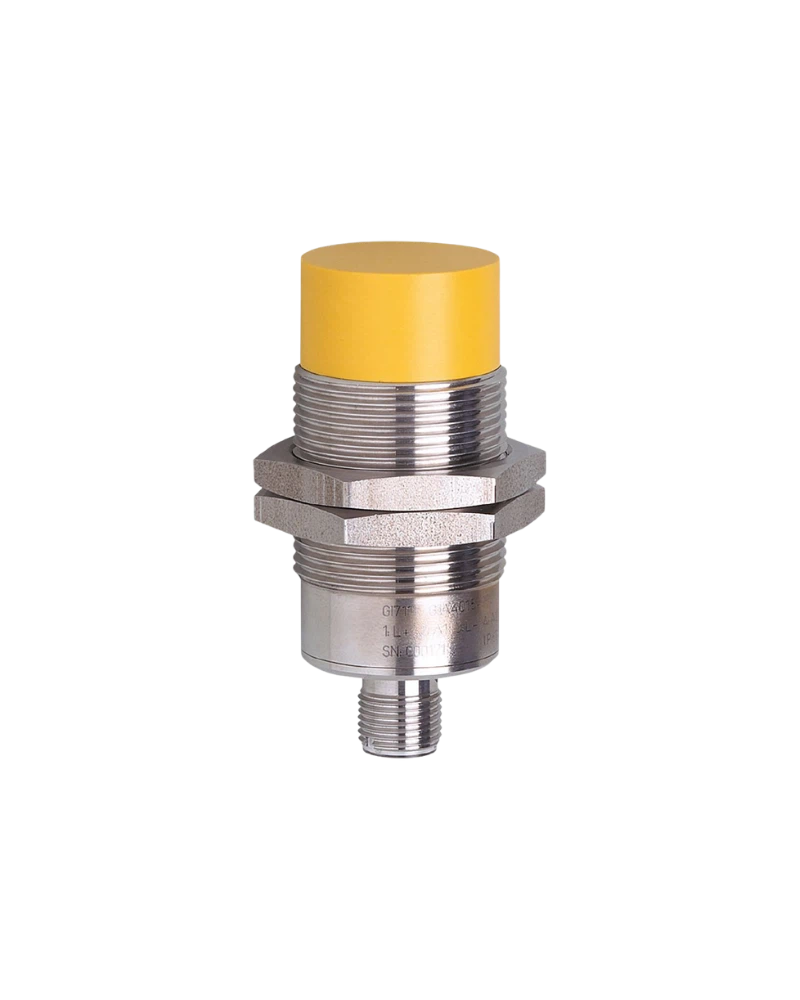

The GI854S is a fail-safe inductive sensor designed for reliable safety monitoring in industrial and mobile machinery.
Its M30 x 1.5 threaded housing provides dependable mechanical strength.
The sensor uses two PNP OSSD outputs for safety-related machine control.
It is designed for reliable operation in harsh environmental conditions.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The GI854S provides non-contact detection for safety applications where dependable machine monitoring is required. Its M30 x 1.5 threaded construction and robust design make it suitable for mobile machinery and demanding industrial environments.
The sensor operates with two PNP OSSD outputs and an M12 connection. Its high protection rating and wide operating temperature range support reliable performance in applications exposed to dust, moisture, vibration and mechanical stress.
Fail-safe inductive detection
M30 x 1.5 threaded housing
Enable zone greater than 21.5 mm
2 x PNP OSSD outputs
M12 connector
Gold-plated contacts
IP65, IP67, IP68 and IP69K protection
Suitable for mobile and harsh applications
Suitable for mobile machinery, industrial automation, machine safety, position monitoring, factory equipment and safety-related control systems.
| Specification | Details |
|---|---|
| Product Type | Fail-safe inductive sensor |
| Model | GI854S |
| Type | GIIK4015-2PO/SIL2/US |
| Electrical Design | PNP |
| Output | 2 x OSSD |
| Enable Zone | >21.5 mm |
| Housing | Threaded |
| Dimensions | M30 x 1.5 / L = 65 mm |
| Connection | M12 connector |
| Operating Voltage | 8...32 V DC |
| Protection Rating | IP65, IP67, IP68, IP69K |
| Ambient Temperature | -40...85 °C |
| Safety Classification | SIL 2 / PL d |
| Application | Mobile and harsh industrial applications |
