The nominal sensing distance is 8 mm.
The nominal sensing distance is 8 mm. A switching frequency of 1,2 kHz.
The thermal drift Sr is < 10%, with repeat accuracy of 5% (UB 24V Ta=23 °C ±5 °C).
The output type is PNP. The output function is NO + NC.
The operating voltage is 10 - 30 VDC, with load current of ≤ 150 mA. No-load supply current is ≤ 20 mA and leakage current is limited to ≤ 10 µA.
Maximum ripple is ≤10%. Inductive load protection is Yes. Short-circuit protection is Yes. Reverse polarity protection is Yes.
Ingress protection is rated IP 67.
LED indicators is No.
The housing is AISI303 Stainless steel, while the active head uses PSU. Dimensions are M18 x 1 / L =63 mm and the connection is M12 Connector.
Weight is 55 g.
Tightening torque is 50 nm.
The operating temperature range is -25 °C…+110 °C.

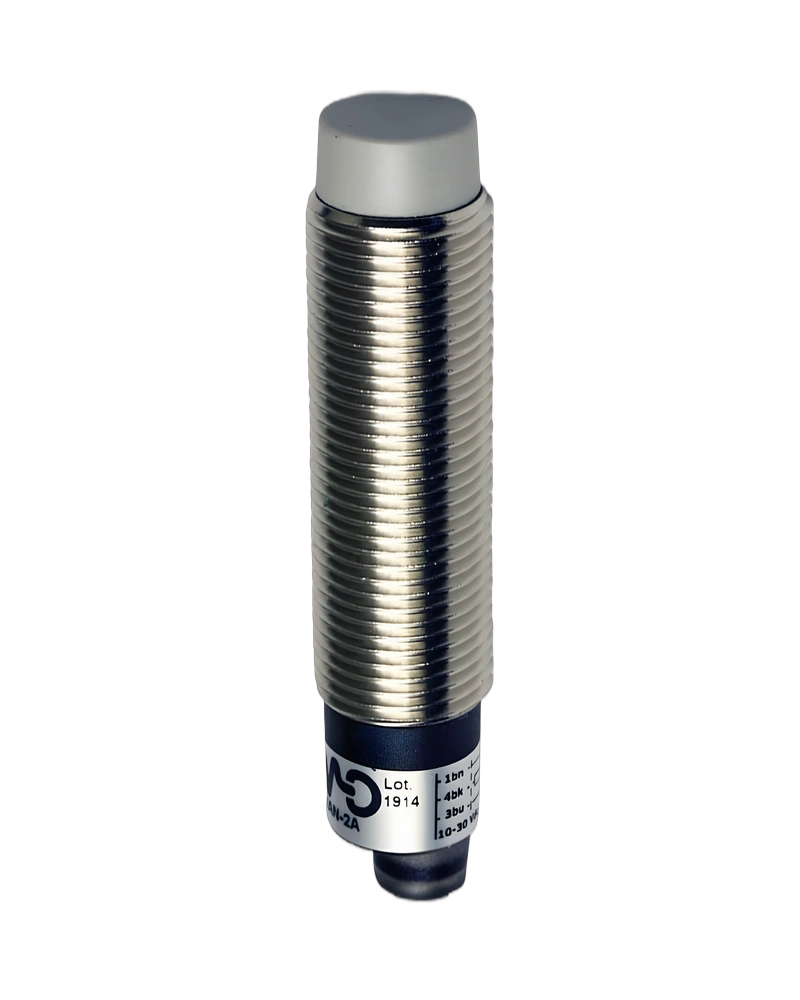

The manufacturer part number is ETK1/BP-2H. This model is manufactured by M.D. Micro Detectors. Installation is Unshielded.
Unshielded is Operating temperature:. Time to availability is 100 ms.
For electrical integration, it provides output type PNP, operating voltage 10 - 30 VDC, switching frequency 1,2 kHz. The physical configuration includes AISI303 Stainless steel housing, dimensions M18 x 1 / L =63 mm, M12 Connector connection. It is rated IP 67 for an operating temperature range of -25 °C…+110 °C.
| Specification | Details |
|---|---|
| Model | ETK1/BP-2H |
| Manufacturer part number | ETK1/BP-2H |
| Manufacturer | M.D. Micro Detectors |
| Output type | PNP |
| Output function | NO + NC |
| Switching frequency | 1,2 kHz |
| Weight | 55 g |
| Active head material | PSU |
| Housing material | AISI303 Stainless steel |
| Tightening torque | 50 nm |
| Installation | Unshielded |
| Operating temperature | -25 °C…+110 °C |
| Dimensions | M18 x 1 / L =63 mm |
| Connection | M12 Connector |
| Hysteresis | 1 … 20% |
| Nominal sensing distance | 8 mm |
| Operating distance | 0…6,5 mm |
| Standard target | 24x24 mm FE360 |
| Thermal drift Sr | < 10% |
| Repeat accuracy | 5% (UB 24V Ta=23 °C ±5 °C) |
| Degree of protection | IP 67 |
| Time to availability | 100 ms |
| Inductive load protection | Yes |
| Short-circuit protection | Yes |
| Reverse polarity protection | Yes |
| Maximum ripple | ≤10% |
| Operating voltage | 10 - 30 VDC |
| LED indicators | No |
| Load current | ≤ 150 mA |
| No-load supply current | ≤ 20 mA |
| Leakage current | ≤ 10 µA |
