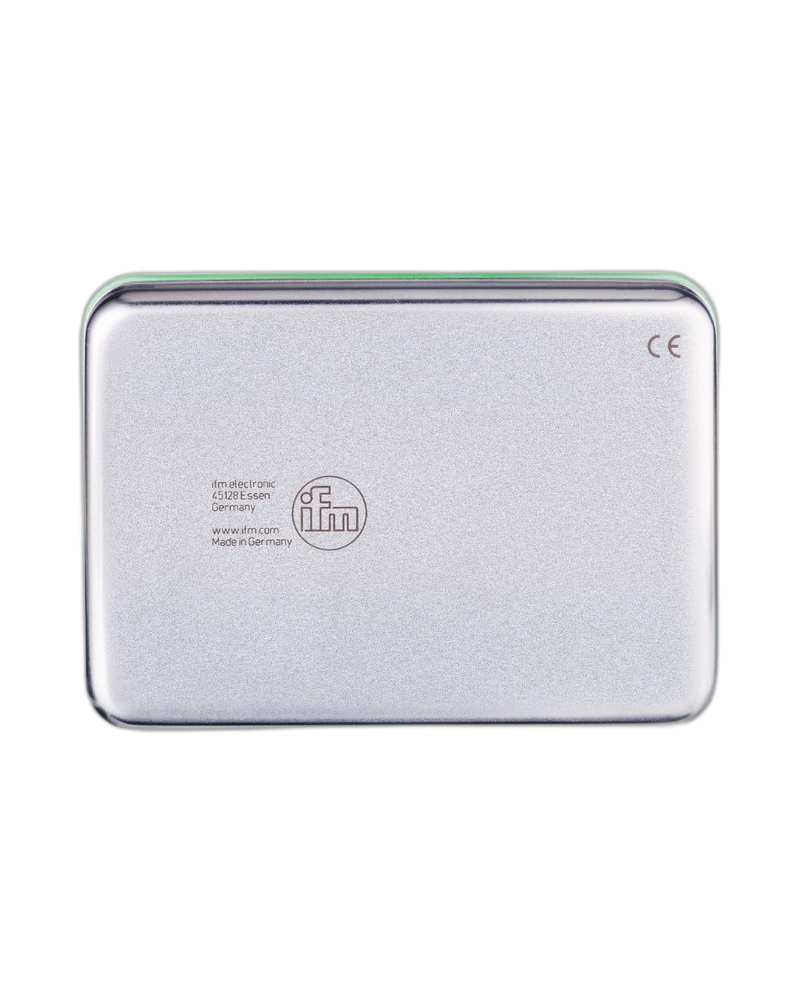

The IFM E40582 is a replacement electronic unit for SMFx5x magnetic-inductive flow sensors without a display. It provides a compact electronics solution with an operating-status LED ring and M12 A-coded electrical connection. The unit is designed for compatible SMFx5x systems and supports signal connections including switching, analogue, reset and IO-Link functions.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E40582 is designed as replacement electronics for compatible SMFx5x magnetic-inductive flow sensors. It provides the electronic interface required for continued operation of the compatible flow measurement system.
Unlike display-equipped versions, the E40582 uses an operating-status LED ring instead of a process-value display. This provides a compact solution where local visual process-value indication is not required.
The unit uses an M12 A-coded connector with gold-plated contacts. Its connection supports power and signal functions including switching, analogue output, reset and IO-Link communication.
The E40582 is suitable for replacement and maintenance of compatible SMFx5x flow sensors. Its compact electronic construction supports integration into industrial and hygienic flow measurement systems.
Replacement electronics for SMFx5x
Measuring converter without display
Three-colour LED status ring
M12 A-coded connector
Gold-plated contacts
Compact 92.6 × 130.6 × 59 mm construction
Supports switching output
Supports analogue output
Supports reset function
Supports IO-Link
Magnetic-inductive flow measurement
SMFx5x flow sensors
Industrial automation
Process monitoring
Food and beverage equipment
Flow-meter maintenance
| Specification | Details |
|---|---|
| Product Code | E40582 |
| Product Type | Electronic Unit / Measuring Converter |
| Compatible Series | SMFx5x |
| Display | No process-value display |
| Status Indication | Three-colour LED ring |
| Housing Dimensions | 92.6 × 130.6 × 59 mm |
| Housing | Rectangular |
| Electronics Material | Stainless steel 316L / 1.4404 |
| Electrical Connection | M12, A-coded |
| Contacts | Gold-plated |
| Outputs / Functions | DO, AO, Reset, IO-Link |
| Pack Quantity | 1 pc. |
| Weight | 973 g |
